PROMIX220
HQPOWER
5
•

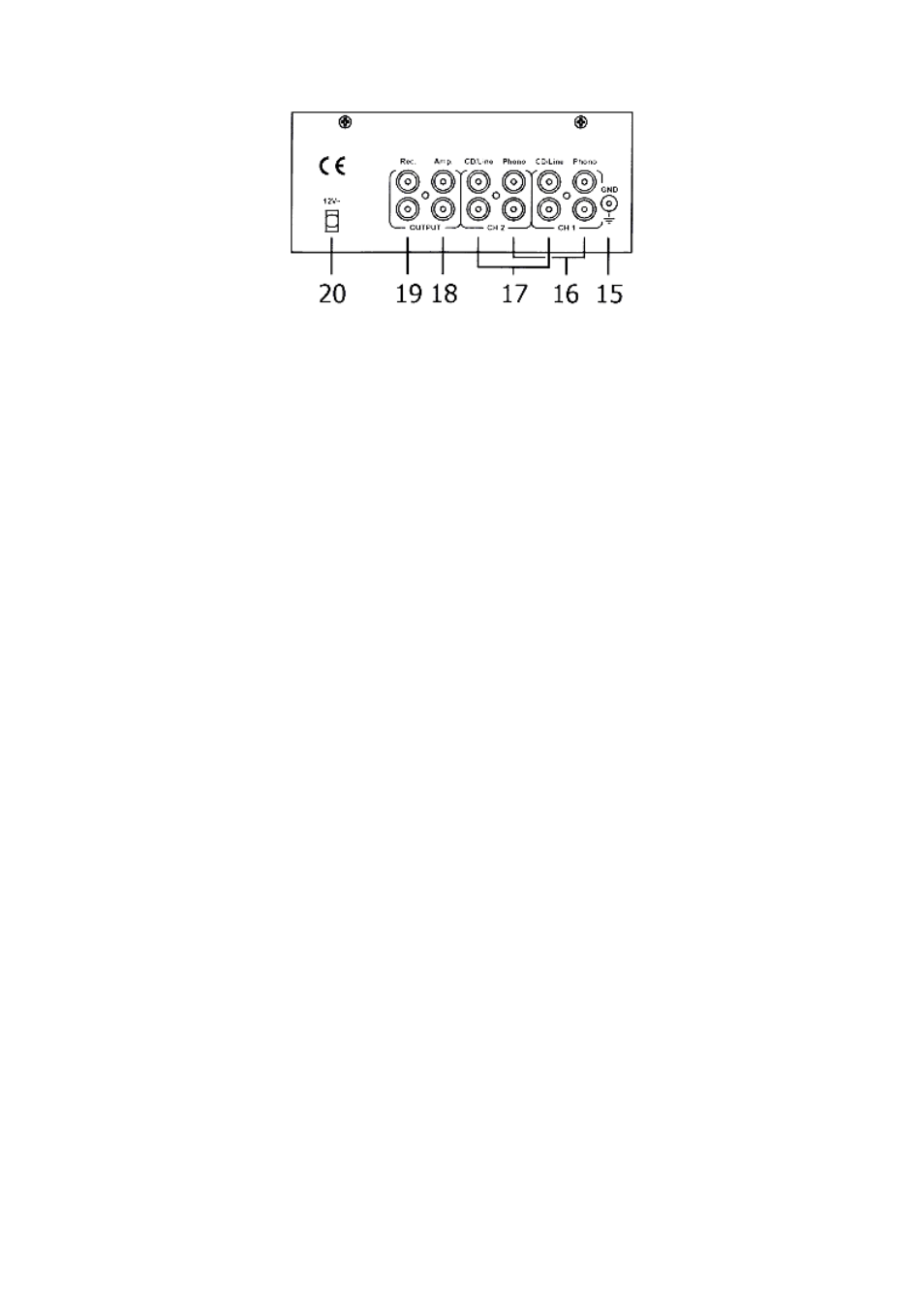

Back Panel
15.
GND ground connection
16.
RCA inputs for channels 1 and 2 (turntable connection)
17.
RCA inputs for channels 1 and 2 (tuner, CD player, tape recorder connection)
18.
master output for connection to an amp
19.
REC output for connection to a sound recording unit
20.
AC power input connection
6. Technical Specifications
Power Supply
max. 230VAC/50Hz
Microphone Input
1.5mV @ 10k Ω
Line/CD Input
150mV @ 22k Ω
Phono Input
3mV @ 47k Ω
Record Output
77mV @ 600Ω
Talk-Over
0dB ~ -15dB
Tone Controls
+/-12dB @ 10kHz/1kHz/100Hz
Headphone
1V @ 33Ω
Dimensions
240 x 200 x 75mm
Total Weight
2.20kg
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of
damage or injury resulted from (incorrect) use of this device.
For more info concerning this product, please visit our website www.hqpower.com.
The information in this manual is subject to change without prior notice.
