WEH200 / WEH300 PEREL 4
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks,
crash, etc. Using the device in an unauthorised way will void the warranty.
4. Installation

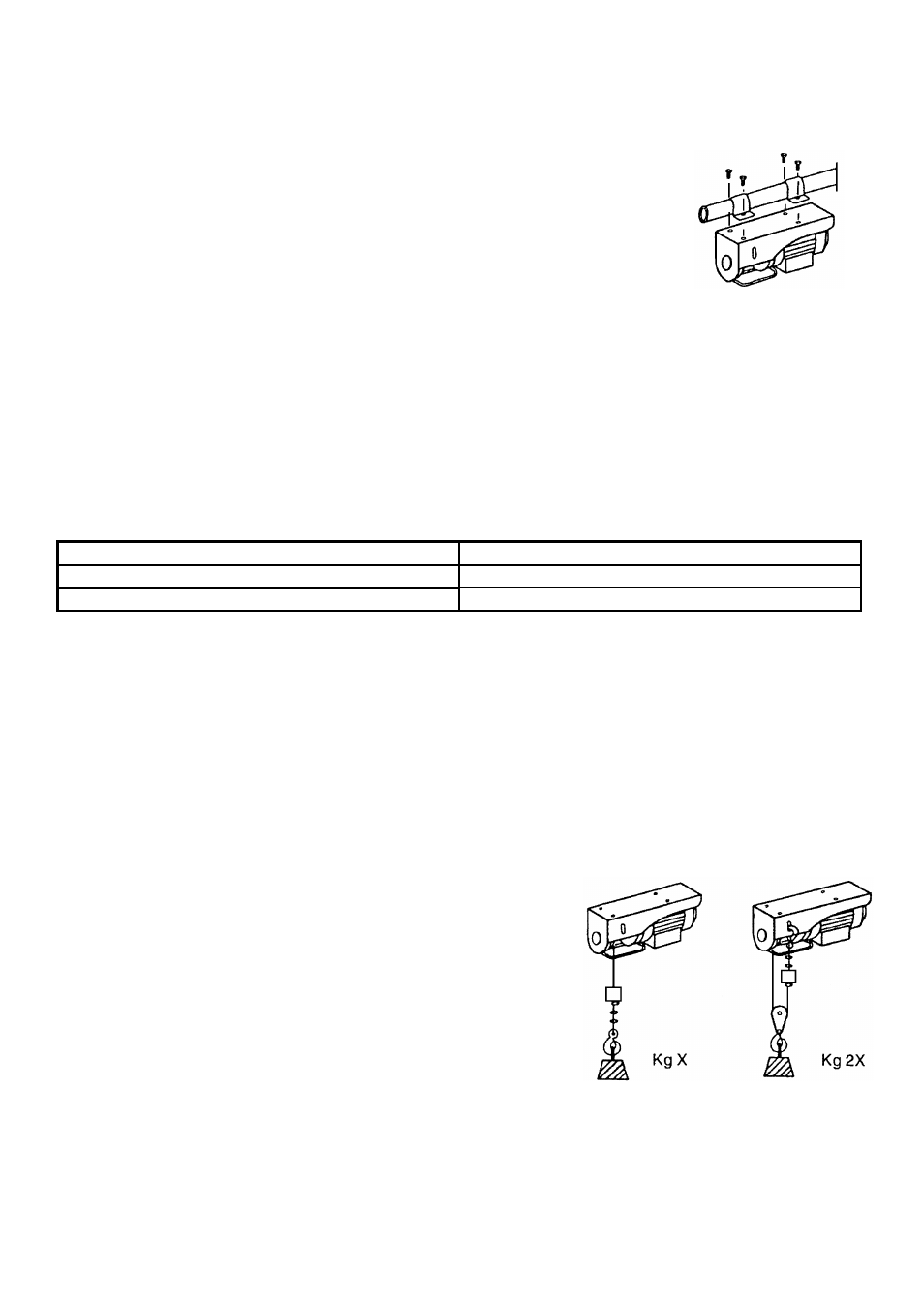

The WEH200 / WEH300 is provided with a specially designed bracket system which
allows mounting the hoist on a pipe.
5. Use
First, check that the switches are in good working condition.
• Make sure the power switch is set to “OFF”.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Insert the plug into the mains outlet.
• Set the power switch to “ON”. The device starts operating.
• Set the power switch to “OFF” to stop the device.
In case a cable extension is needed, it is absolutely important to respect the table’s data.
EXTENSION LENGTH CABLE SECTION
Up to 20m 1.6mm
From 20m to 50m 2.5mm
6. Cleaning and Maintenance
1. All screws securing the brackets and reduction gear should be tightened and free of corrosion.
2. The housing, visible parts, mounting supports and the installation location (e.g. ceiling, suspension, trussing)
should not be deformed, modified or tampered with e.g. do not drill extra holes in mounting supports, do not
change the location of the connections.
3. Moving mechanic parts must not show any signs of wear and tear.
4. The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
5. Disconnect the device from the mains prior to maintenance activities.
6. Check that the steel cable, the motor stop switch and the push button are in good working condition.
7. All nuts securing the steel cable clamps should be tightened and free of corrosion.
7. Technical Specifications
Power Supply max. 230VAC / 50Hz
Power Consumption max. 1050W
Load Capacity
WEH200 200kg (400kg with
double load capacity)
WEH300 300kg (600kg with
double load capacity)
Lifting Height 5.5 / 11m
Lifting Speed 10m/min
Cable Length / Diameter 12m / Ø 3.5mm ( WEH200) or Ø 4.5mm (WEH300)
For more info concerning this product, please visit our website www.perel.be.
The information in this manual is subject to change without prior notice.
