• All modifications of the device are forbidden for safety reasons. Damage
caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an
unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not
covered by the warranty and the dealer will not accept responsibility for
any ensuing defects or problems.
4.
Connections
Refer to the drawing on page.2 of this manual.
1 Fuse
5 On/off switch
2 3.5mm mono jack 3V output
6 Load connection
3 3.5mm mono jack 6V output
7 12V battery connection
4 3.5mm mono jack 12Voutput
8 Connections for solar panels
Output
Power ON
Power OFF
Battery (#7)
12V ± 10%
12V ± 10%
Load (#6)
12V ± 10%
0V
3V (#2)
3V ± 10%
0V
6V (#3)
6V ± 10%
0V
12V (#4)
12V ± 10%
0V
• This means the battery will be recharged even when the SOL4UCN2 is
switched off.
• Green LED: on; red LED: charging.
5.
Technical Specification
Fuse
type F5 AL 250V (order code FF5N)
Max. output DC current
4A

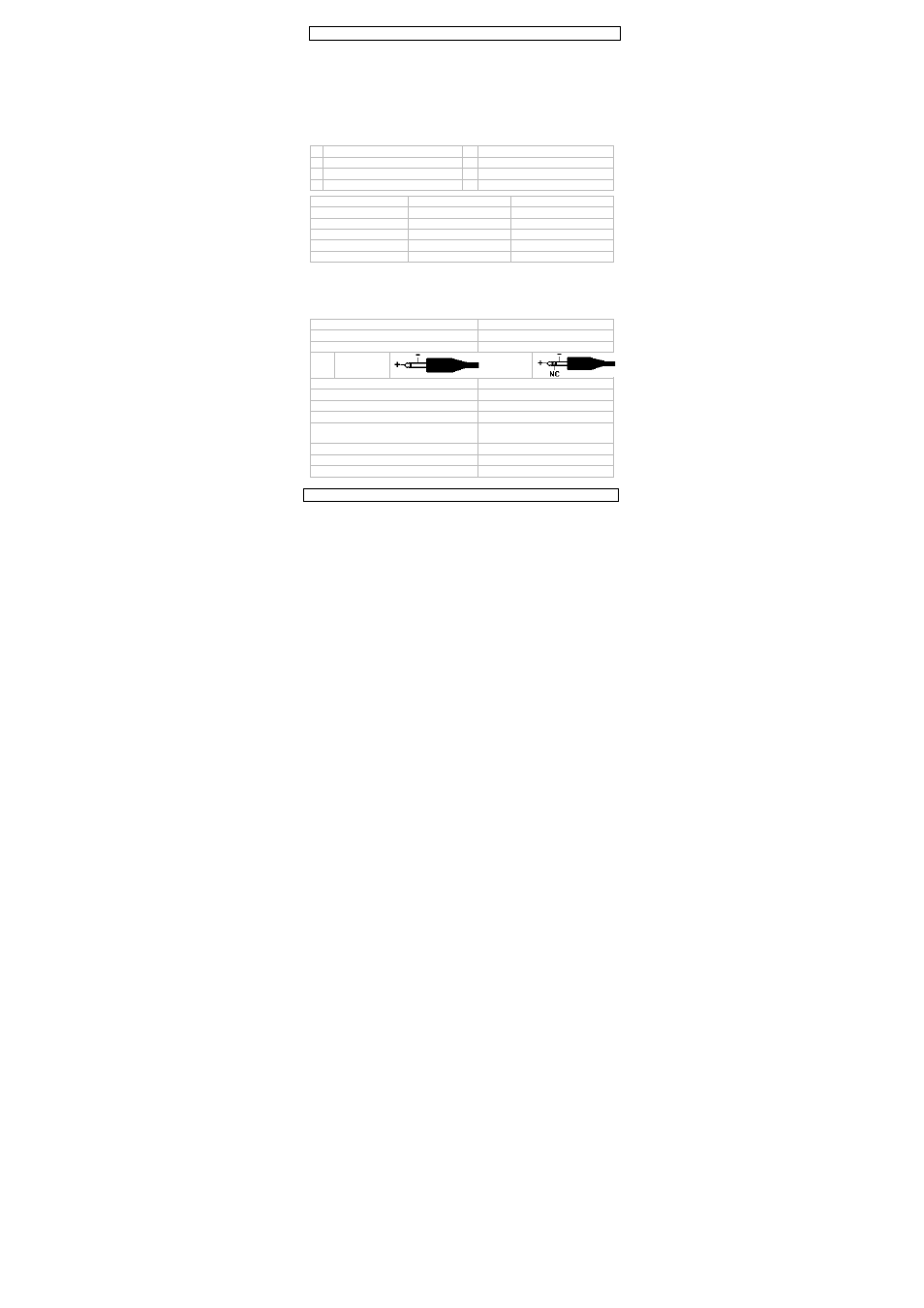

3/6/12V connector layout
mono jack
stereo jack
Discharge protection battery connector
<= 11.0V ±0.3V
Overcharge protection battery connector
>= 14V ‐ 14.5V
Max. current solar panel
≤5A
Open voltage solar panel
21 ~ 24V
Suggested type of rechargeable battery
12V / 10 ~ 40Ah sealed lead acid
battery
Working temperature
‐10°C ~ +42°C
Humidity
≤ 80%
Dimensions (L x W x H)
120 x 80 x 22mm
