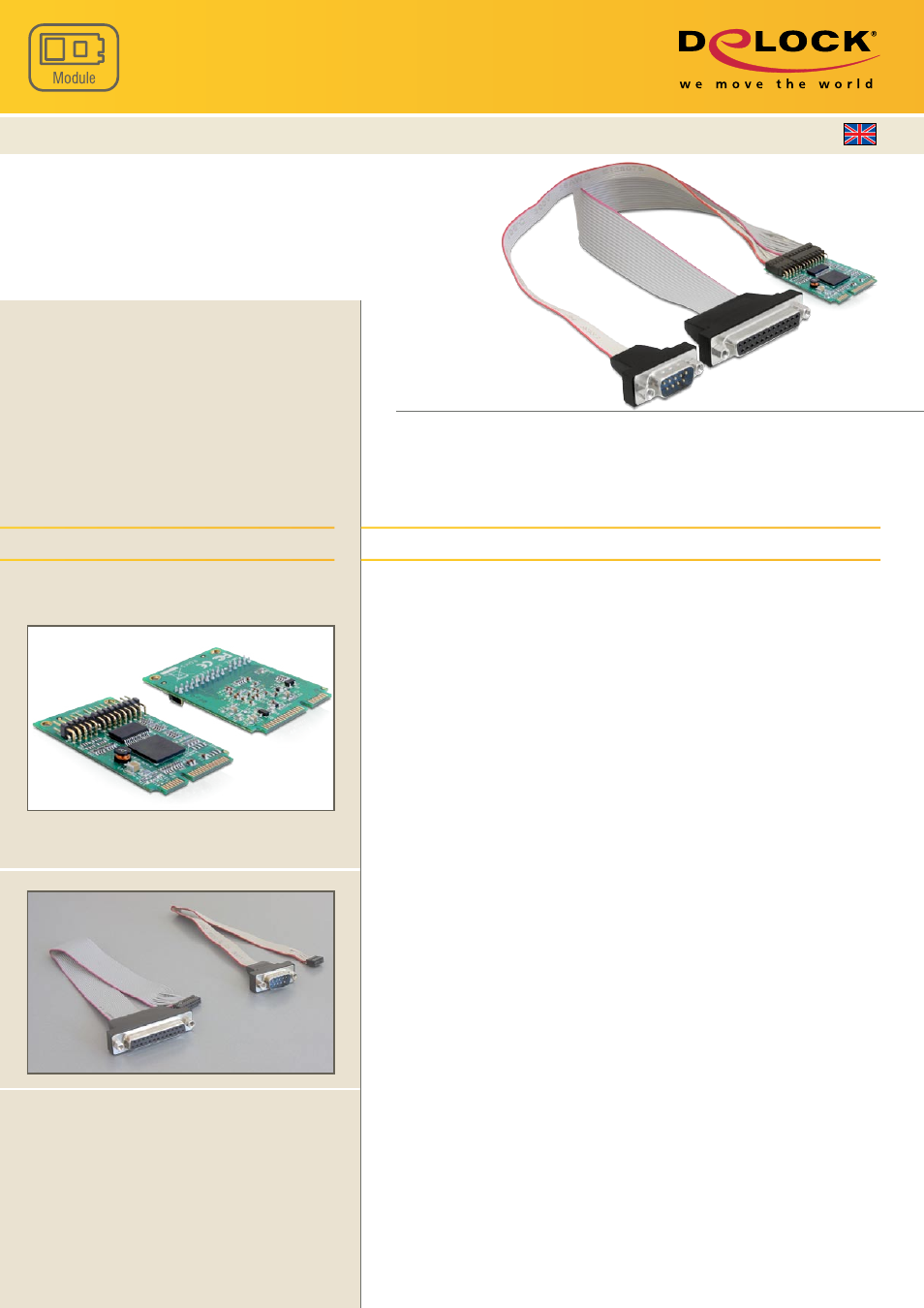

DATA SHEET

W W W. D E L O C K . C O M

Description

© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.

Printing errors, changes and errors excepted.

Specification

Images

Ref.

EAN

Country of origin

Customs tariff number

MiniPCIe I/O PCIe full size
1 x serial RS-232, 1 x parallel

95138

4043619951383

Taiwan

84733020

• Chipset: Oxford OXPCIe952
• Form factor: miniPCIe full size
• Interface: PCI Express Revision 1.1a
• Connector:

PCB: 1 x 9 pin COM port pin header

1 x 18 pin parallel port pin header

cable: 1 x serial RS-232 DB9 male with screw nuts

1 x parallel DB25 female with screw nuts

• Data transfer rate up to 460 Kb/s
• Compatible with 16950 UART
• FIFO: 128 byte
• Mode:

serial: RS-232

parallel: SPP/EPP/ECP - IEEE1284

• Cable length with connector:

serial ca. 30 cm

parallel ca. 28 cm

• Operating temperature: 0 °C ~ 85 °C
• Storage temperature: -20 °C ~ 85 °C

System requirements
• Windows XP/Vista/7/7-64
• Mainboard with a free miniPCIe slot with a PCIe interface

Package content
• MiniPCIe module
• 1 serial connecting cable, 1 parallel connecting cable
• Driver CD, user manual

Package
• Blister

This miniPCIe adapter by Delock
expands your system by one serial and
one parallel interface, which you may
lead out. You can connect different
serial and parallel devices like printer,
scanner, modem etc. to this adapter.
