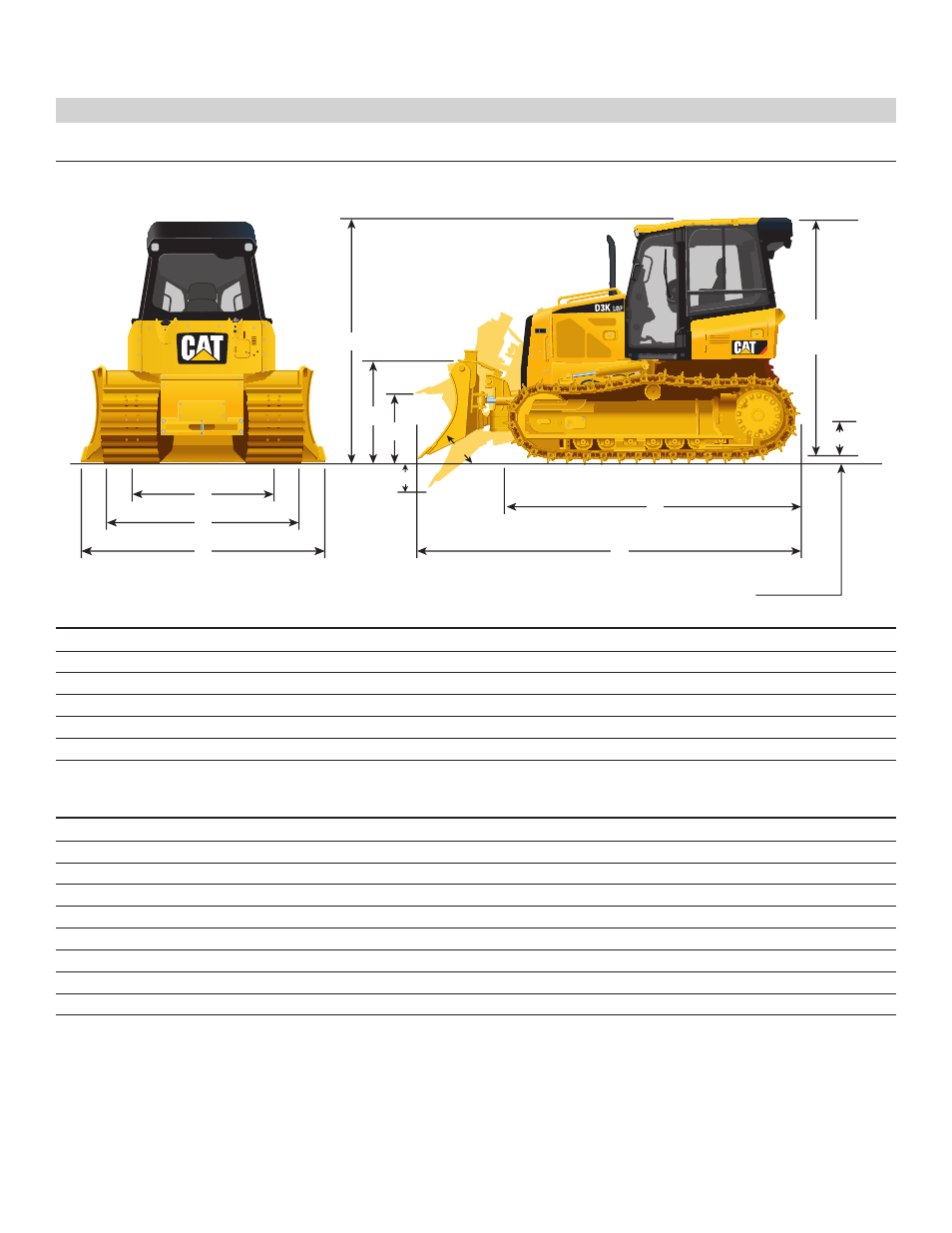

Dimensions
All dimensions are approximate.
XL
LGP
1
Track gauge
1495 mm (58.9")
1725 mm (67.9")
2
Width of tractor (std shoes, no blade)
1901 mm (74.8")
2360 mm (92.9")
3
Overall length (w/blade)
4266 mm (168")
4255 mm (167.6")
4
Length of basic tractor (w/o blade)
3275 mm (128.9")
3275 mm (128.9")
5
Tractor height
2763 mm (108.8")
2763 mm (108.8")
6
Ground clearance
332 mm (13")
332 mm (13")
BLADE
XL
Intermediate
LGP
7
Blade width
2646 mm (104.2")
2921 mm (115")
3149 mm (124")
8
Blade height
910 mm (35.8")
860 mm (33.9")
860 mm (33.8")
9
Blade lift height
730 mm (28.7")
743 mm (29.3")
730 mm (28.7")
10
Digging depth
573 mm (22.5")
573 mm (22.5")
573 mm (22.5")
11
Blade cutting edge angle, adjustable
52
°
to 58
°
52
°
to 58
°
52
°
to 58
°
Maximum tilt
368 mm (14.5")
448 mm (17.7")
438 mm (17.2")
Maximum angle (either side)
25
°
25
°
25
°
Blade width at maximum angle
2417 mm (95.2")
2669 mm (105.1")
2874 mm (113.1")
Blade capacity (SAE)
1.52 m
3
(1.99 yd
3
)
1.50 m
3
(1.96 yd
3
)
1.66 m
3
(2.17 yd
3
)
1
2
4
7
3
Grouser Height: 47 mm (1.9")
6
8
5
9
2716 mm
(106.9")
10
11
