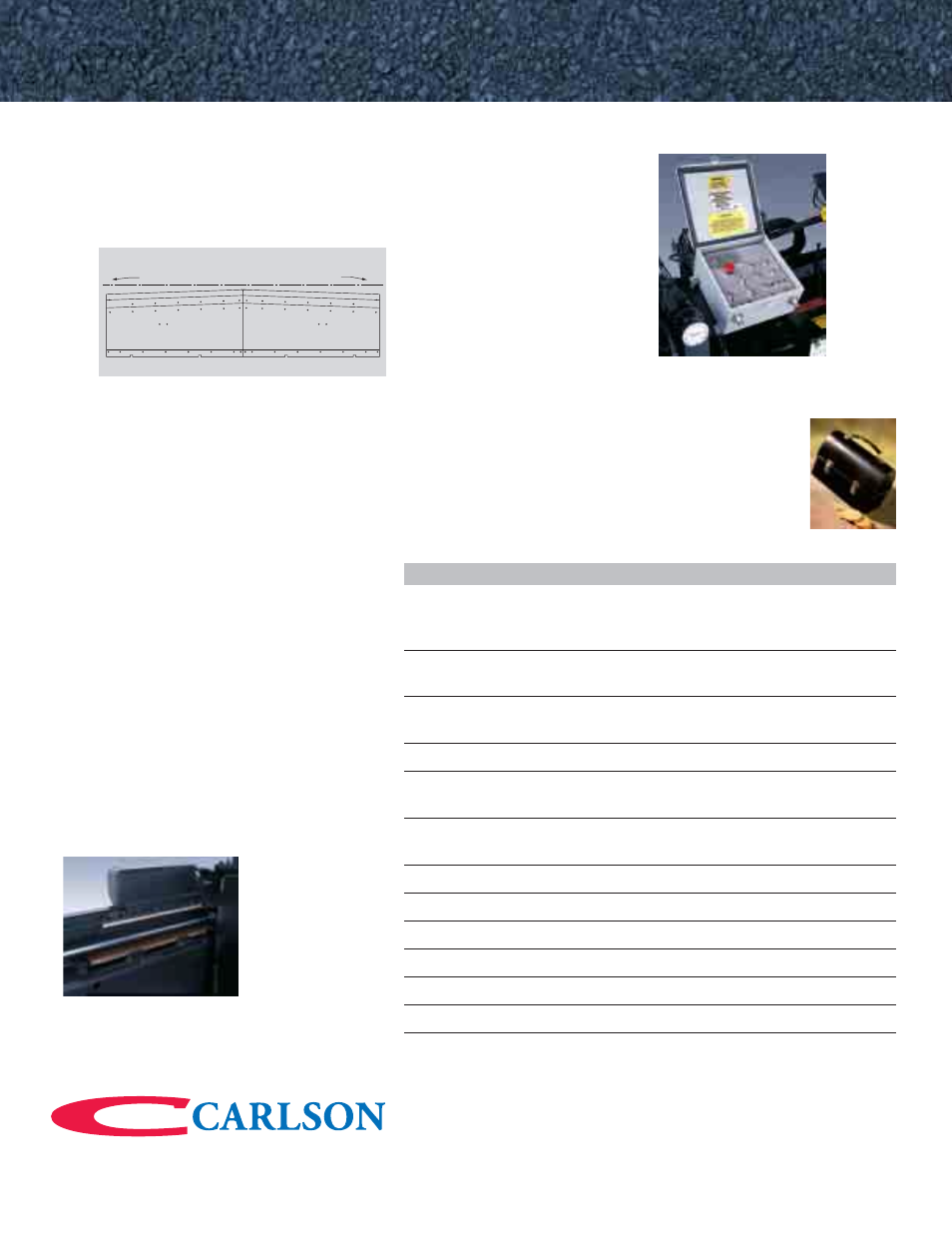

Electric heat for quality
control and operator safety.
Advanced design heating
elements in contact directly with
the upper surface of the main
screed plate to deliver even,
controllable heat.
Front taper design for
uniform distribution.
The EZ Screed III’s patented
front taper design helps you
create smoother roads, parking
lots and other high use surfaces
by constantly moving material to
the outside.
Adjustable slide tracks
support the heated
extensions for smoother
roads.
A unique feature of the Carlson
EZ III Screed is the extension
support system, which uses brass
wear plates to maintain tight
control and prevent vertical
movement. Carlson’s innovative
adjustable angel of attack pro-
duces a mat quality consistent
with the main screed in texture
and density. It also allows for
extensions to slope down 9%.
Innovative
berm builder
adds value and
versatility.
Carlson’s
industry ac-
claimed, adjust-
able berm builder
enables contractors to offer
economical drainage control by
creating jointless asphalt curbs
and gutters.
The heated beveled edger plate
for tapered notched wedge joint
increases job site safety and
provides a stronger longitudinal
joint.
A PROVEN ALL ELECTRIC
HEAT SYSTEM with a
34kW generator has
enough power to let you
heat and run lights for night
paving.
The Carlson EZ III’s 34kW hydrau-
lic powered generator delivers up
to 6000 watts of 120 volt AC power.
Enough capacity to handle 6
additional outlets for lights.
SPECIFICATIONS
Model EZIII-08 EZIII-10 EZIII-12 EZIII-LW08
Standard Paving Width 8 ft. 10 ft. 12 ft. 8 ft.
(2.44m) (3.05m) (3.66m) (2.44m)
Extended Paving Width 13 ft. 6 in. 17 ft. 20 ft. 13 ft. 6 in.
(4.11m) (5.18m) (6.1m) (4.11m)
Maximum Paving Width 19 ft. 24 ft.* 25 ft. 19 ft.
(5.8m) (7.6m) (7.6m) (5.8m)
Extension Slope Down 9% 9% 9% 9%
Maximum Berm Height 4 in. (10.16cm) on outside edge,
optional 6 in. (15.24cm)
Berm Width Available 12 in. (30.5cm), 18 in. (45.7cm)
or 24 in. (61cm)
Power Crown 2.5 in. (7.6cm) Positive, 1.5 in. (3.8cm) Inverter
Walkway Width 20-1/2 in. (52cm) Hinged
Power Outlets 120 volt @ 720 watts (optional 6000 watts for lights)
Main Screed Plate New 1/2 in. (1.27cm) thick, AR 400 Brinell
Oven 326 degrees F (163 degrees C)
Screed Weight 5200 lbs. 6000 lbs. 6900 lbs. 4700 lbs.
* Optional bolt on support recommended beyond 22 ft. (6.7m)
Carlson delivers the perfect touch.
Carlson Paving Products, Inc. 18425 50th Ave E. Tacoma, WA 98446
For more information call us at 1 800-216-2108 or visit us on the web at www.carlsonpavingproducts.com.
Ergonomically friendly
work environment.
Home cooked meals.
The crew’s favorite feature on
the EZ III could well
be the built in oven
that gives them a
place to heat up
their lunches. All the
comforts of home.
(Well at least one.)
The Perfect Touch
WITH FORWARD MOTION, MATERIAL WILL NATURALLY BE MOVED OUTWARD
BECAUSE OF THE TAPER FRONT DESIGN.
MATERIAL FLOW MATERIAL FLOW
TOP VIEW
REAR
