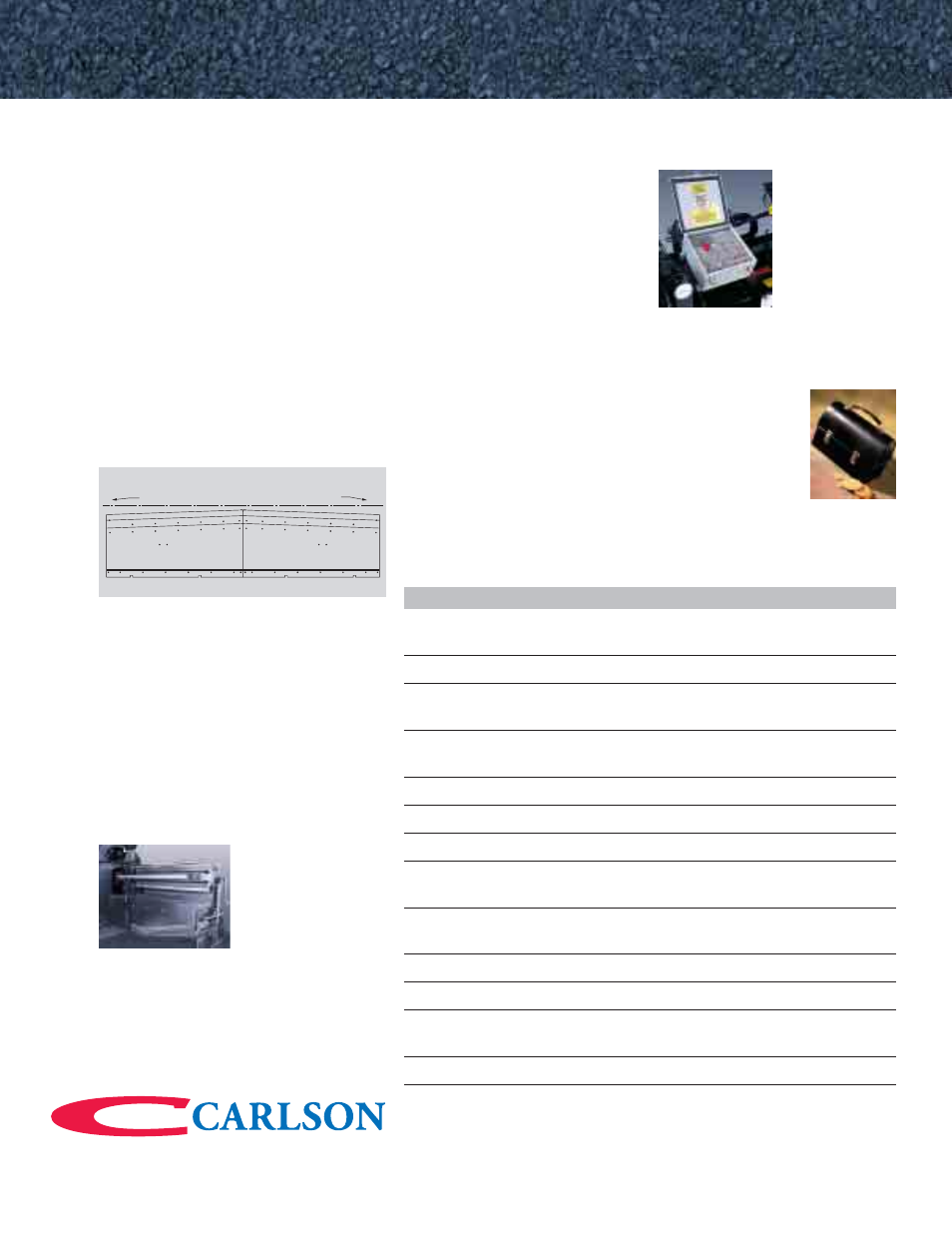

Electric heat for quality
control and operator safety.

Advanced design heating

elements in contact directly with
the upper surface of the main
screed plate to deliver even,
controllable heat. This ensures
consistent fluidity and smooth
laydown of the asphalt. This also
helps contractors meet clean air
standards by getting rid of the
smoke created by diesel flame
heated screeds. And it eliminates
the maintenance costs you’ll have
to pay to repair warped screed
plates and burner boxes.

Front taper design for
uniform distribution.

The EZ Screed IV’s patented front
taper design helps you create
smoother roads, parking lots and
other high use surfaces by
constantly moving material to the
outside. It prevents cold spots and
maintains an even head of material
for a perfect mat.

Adjustable slide track
supports the heated
extensions for paving
wider roads.

A unique feature of the Carlson

EZ IV Screed is the
extension support
system that uses
high strength
chrome rods with
adjustable compos-

ite bushings to maintain tight
control and prevent vertical
movement. Carlson’s innovative
adjustable angel of attack pro-
duces a mat quality consistent

with the main screed in texture
and density. It also allows for
extensions to slope down 8%.

Innovative berm builder
adds value and versatility.

Carlson’s industry acclaimed,

adjustable berm builder enables
contractors to offer economical
drainage control by creating
jointless asphalt curbs and
gutters.

The heated beveled edger plate

for tapered notched wedge joint
increases job site safety and
provides a stronger longitudinal
joint.

A PROVEN ALL ELECTRIC
HEAT SYSTEM with a
34kW generator has
enough power to let you
heat and run lights so you
work late into the night.

SPECIFICATIONS

Model

EZIV-815

EZIV-1019

Standard Paving Width

8 ft. (2.44m)

10 ft. (3.05m)

Extended Paving Width

15 ft. (4.57m)

19 ft. (5.79m)

Extension Length

4 ft. Right

5 ft. Right

3 ft. Left

4 ft. Left

Max. Paving Width with

Bolt-On Extension

19 ft. (5.79m)

25 ft. (7.62m)

Vertical Height Adjustment

Hydraulic

Hydraulic

Extension Slope Down

8%

8%

Maximum Berm Height

4 in. (10.16cm) on outside edge

Berm Width Available

12 in. (30.48cm), 18 in. (45.72 cm)

or 24 in. (60.96 cm)

Power Crown

2-1/2 in. (6.25 cm) Positive

3/4 in. (1.9 cm) Invert

Walkway Width

20-1/2 in. (52.07 cm) Hinged

Oven

Electric Stove Top Element

Power Outlets

120 Volt @ 1200 watts

(Optional 4800 additional watts for lights)

Screed Weight

6,250 lbs

7,000 lbs

Ergonomically friendly
work environment.

Dual control stations and a wide

walkway give
operators the
ability and room
to work effi-
ciently and
move safely
around the EZ
Screed IV.

Home cooked meals.

The crew’s favorite feature on

the EZ IV could well
be the built in oven
that gives them a
place to heat up
their lunches. All the
comforts of home.
(Well at least one.)

Carlson delivers the perfect touch.

Carlson Paving Products, Inc. 18425 50th Ave E. Tacoma, WA 98446
For more information call us at (800) 216-2108 or visit us on the web at www.carlsonpavingproducts.com.

WITH FORWARD MOTION, MATERIAL WILL NATURALLY BE MOVED OUTWARD

BECAUSE OF THE TAPER FRONT DESIGN.

MATERIAL FLOW

MATERIAL FLOW

TOP VIEW

REAR

The Perfect Touch
