10 CS-323C and CP-323C specifications
CP-323C CP-323C
E D
J

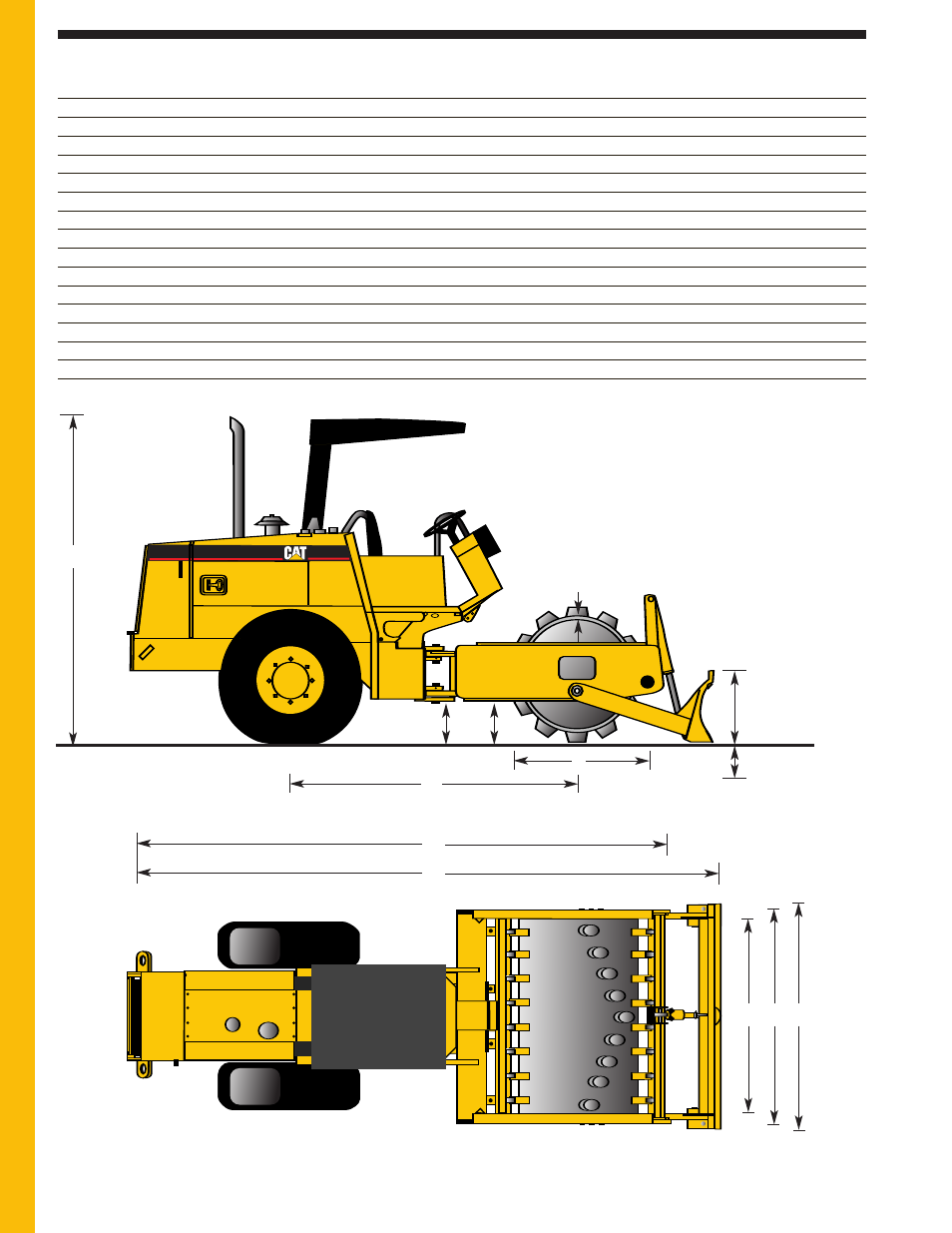

Dimensions
CS-323C CP-323C
A Overall length 4.12 m (13' 6") 4.12 m (13' 6")
B Length with blade 4.5 m (14' 9") 4.5 m (14' 9")
C Overall width 1.39 m (4' 6") 1.39 m (4' 6")
D Drum width 1270 mm (50") 1270 mm (50")
E Width with blade 1.57 m (5' 2") 1.57 m (5' 2")
F Blade height 558 mm (22") 558 mm (22")
G Blade cutting depth 76 mm (3") 76 mm (3")
H Drum shell thickness 20 mm (0.78") 20 mm (0.78")
I Drum diameter 1016 mm (40") 840 mm (35")
Drum diameter over pads — — 1016 mm (40")
J Height at ROPS/FOPS canopy 2.51 m (8' 2") 2.51 m (8' 2")
K Wheelbase 2.24 m (7' 4") 2.24 m (7' 4")
L Ground clearance 347 mm (13.6") 347 mm (13.6")
M Curb clearance 335 mm (13.2") 335 mm (13.2")
Inside turning radius 2.62 m (8' 7") 2.62 m (8' 7")
Outside turning radius 3.89 m (12' 9") 3.89 m (12' 9")
L M
I
K
A
B
F
H
C
G
