Rear View
Front View
4 PUSH-UP
3 UNLOCK
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 05.29.12 ©

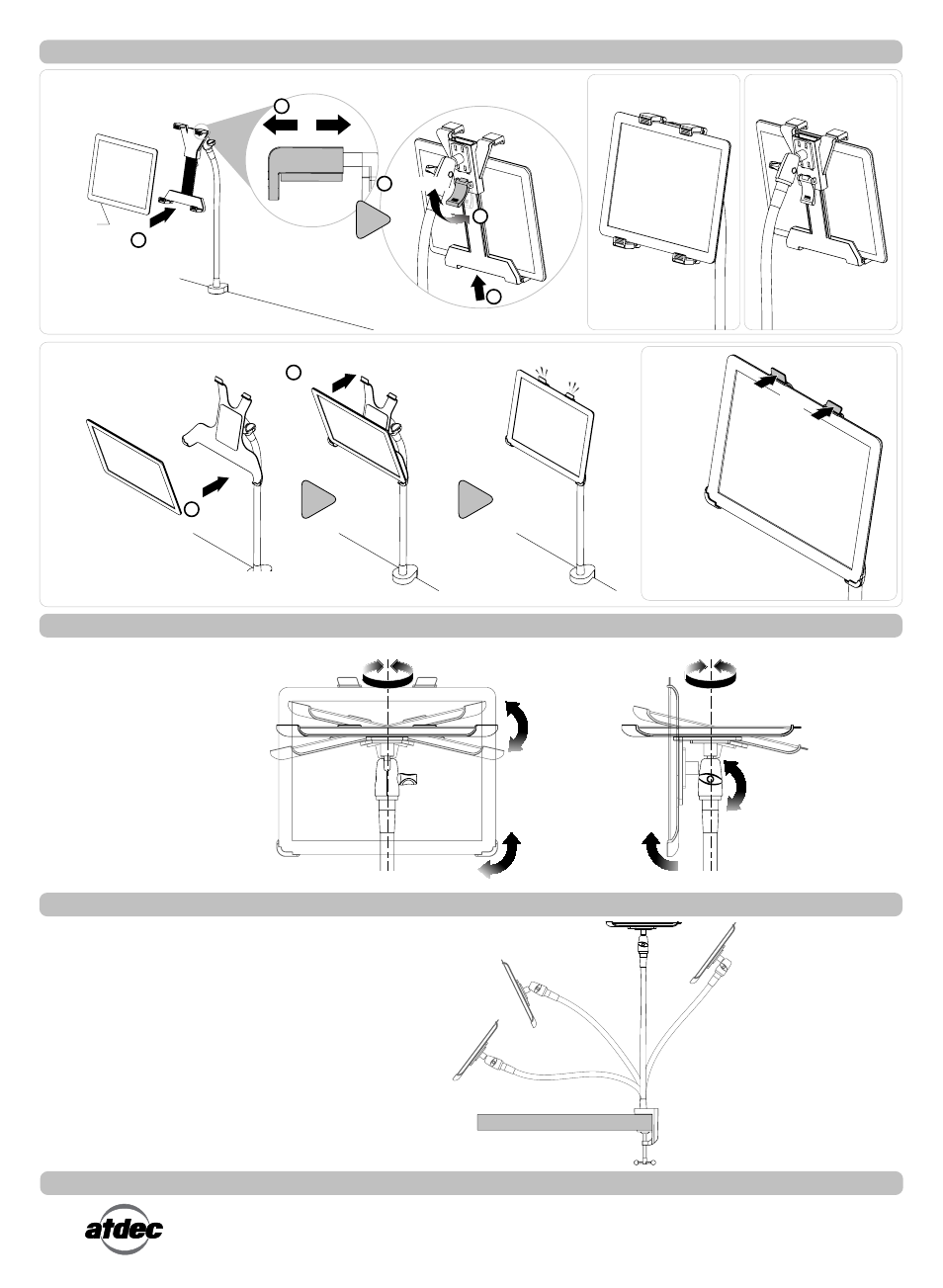

Step 4. Attach the Tablet to the Adaptor
For Universal Tablet Adaptor
For iPad 2 and 3 Adaptor
Tablet
1 ATTACH
1. Place the tablet.
2. Adjust the four clips.
3. Unlock to adjust height.
4. Push-up to fit.
5. Lock to secure.
To detach the iPad , push back the
top handles of the adaptor.
Side View
DESK
®
1 ATTACH
2 PUSH
®
Click
1. Attach the iPad by first placing the bottom in the adaptor.
2. Push back the top of the iPad to click in.
®
Click
5 LOCK
2 ADJUST
Rear View
PUSH
BACK
to release
Front View Side View
0-110° ±360°
±20°
TIGHTEN
LOOSEN
±360°
Step 6. Flexibility
±360°
Loosen the knob to rotate the
Tablet to the desired position
and tighten to fix.
NOTE: The tilt adjustment
angle is not limited to only
front and side views, the
available adjustment allows
the user to view the tablet in
any position that feels
comfortable.
NOTE: The flexibility of the product is not limited
to the illustrations presented, it can bend to any
position that the user feels comfortable with.
Step 5. Tablet Tilt Adjustment
DESK
iPad is a trademark of Apple Computer, Inc, registered in the U.S. and other countries. ®
®
