4 Connecting to power supply
VEGABAR 82 • Slave sensor for electronic differential pressure
46332-EN-131125
7. Check the hold of the wires in the terminals by lightly pulling on
them
8. Connect the screen to the internal ground terminal, connect the
outer ground terminal to potential equalisation
9. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
10. Reinsert the display and adjustment module, if one was installed
11. Screw the housing cover back on
The electrical connection is finished.
4.2 Single chamber housing
The following illustration applies to the non-Ex, Ex-ia and Ex-d ver-
sion.
5 6 7 8
4
2
1
Master

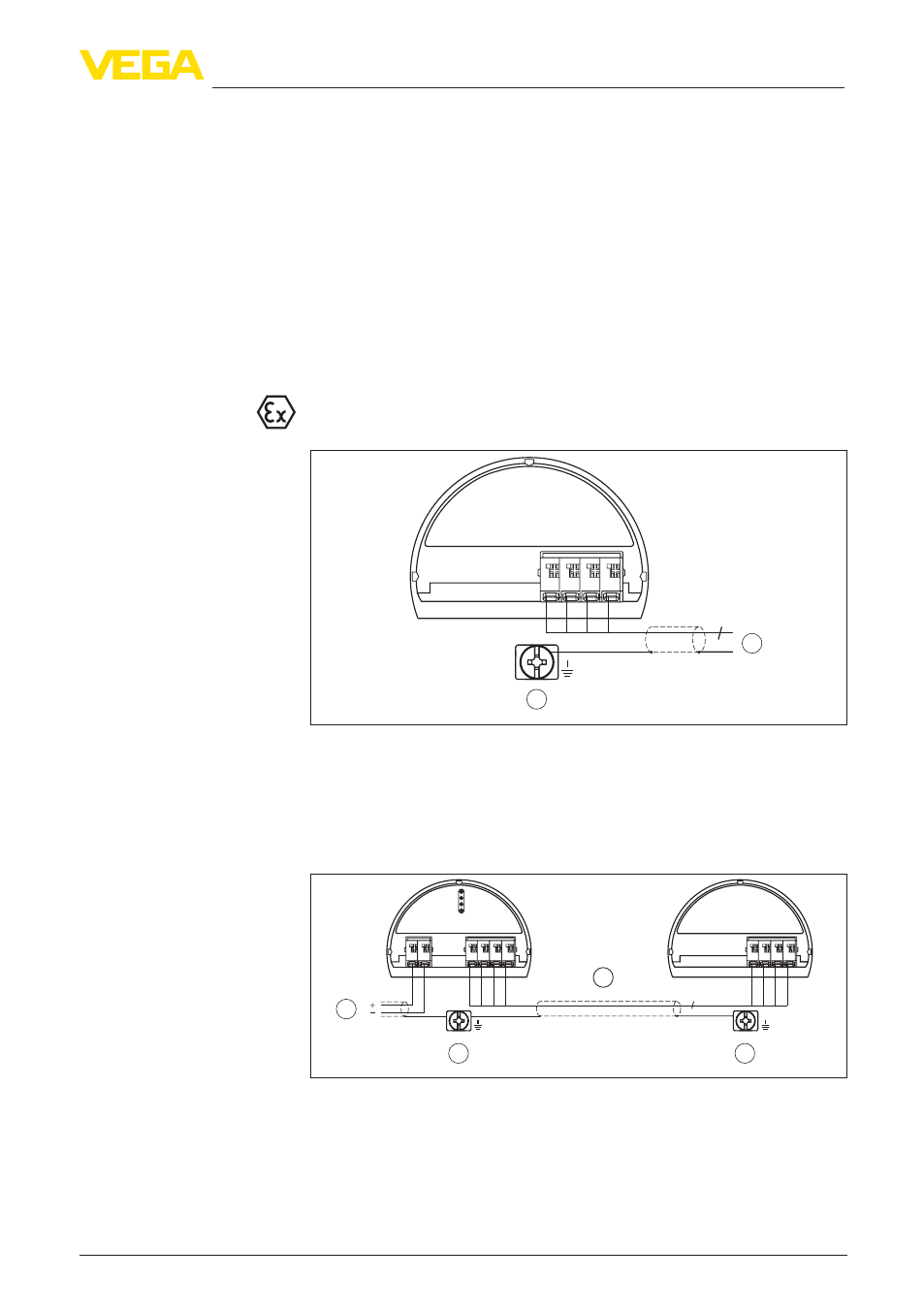

Fig. 4: Wiring plan VEGABAR 82 Slave sensor
1 To the sensor
2 Ground terminal for connection of the cable screen 1)
4.3 Connection example
5 6 7 8
4
2
3
1
4
5 1 2 + ( ) (-) 6 7 8
4...20mA
Fig. 5: Connection example VEGABAR 82 slave sensor
1 VEGABAR 82
2 VEGABAR 82 slave sensor
3 Connection cable
4 Supply and signal circuit VEGABAR 82
Electronics and terminal
compartment
Connection example,
slave sensor
1) Connect screen here. Connect ground terminal on the outside of the housing
to ground as prescribed. The two terminals are galvanically connected.
