3 Mounting
DIS-ADAPT • Adapter for connection of an external display and adjustment unit
45250-EN-130625
3 Mounting
3.1 Mounting preparations
The following tools are required for mounting:
•
Spanner SW 17 or hexagon socket size 8 for unscrewing the blind
plug
•
Spanner SW 17 for screwing in the M12 x 1 plug
3.2 Mounting steps
Proceed as follows to mount the DIS-ADAPT:
1. Open the cover of the electronics compartment
1
2

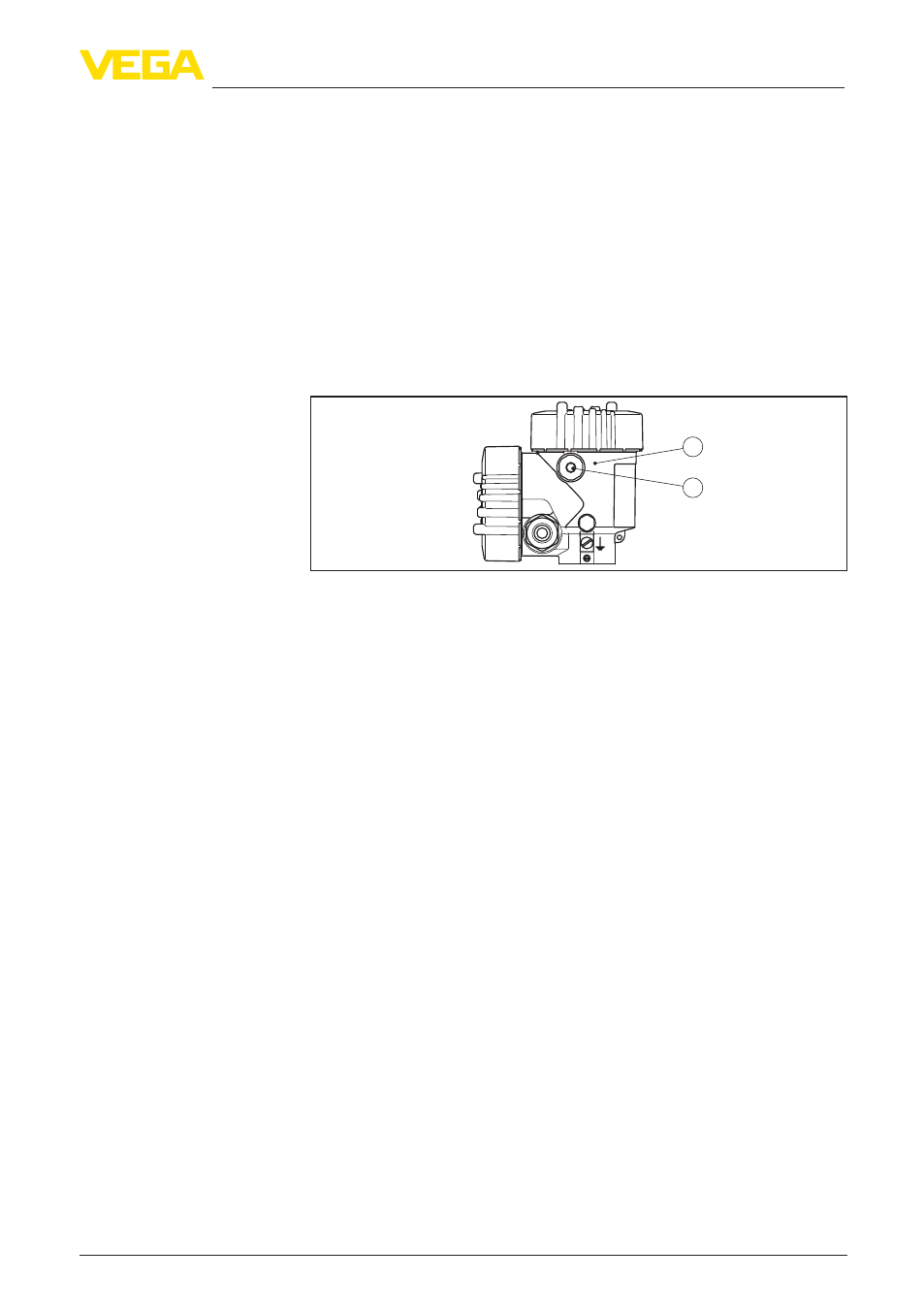

Fig. 2: Position of the electronics compartment and the blind plug
1 Electronics compartment
2 Blind plug
2. Unscrew the blind plug on the side of the electronics compart-
ment
3. Loosen the mini plug connector on DIS-ADAPT
4. Insert the plug through the free opening and screw the M12 x 1
plug connector into the housing
5. Connect mini plug connection to DIS-ADAPT
6. Place DIS-ADAPT on the electronics and turn it to the right
Tools
