2 Mounting
VEGAWELL 52 • Service tanks (fuel, coolant)
41957-EN-130626
5. Slide seal cone and cone sleeve to the requested position on the
cable
6. Screw the screwed connection into the socket, tighten with
SW 30 and then tighten seal screw with SW 19
The sensor fastening must be electrically connected to the vessel
wall.
1 2

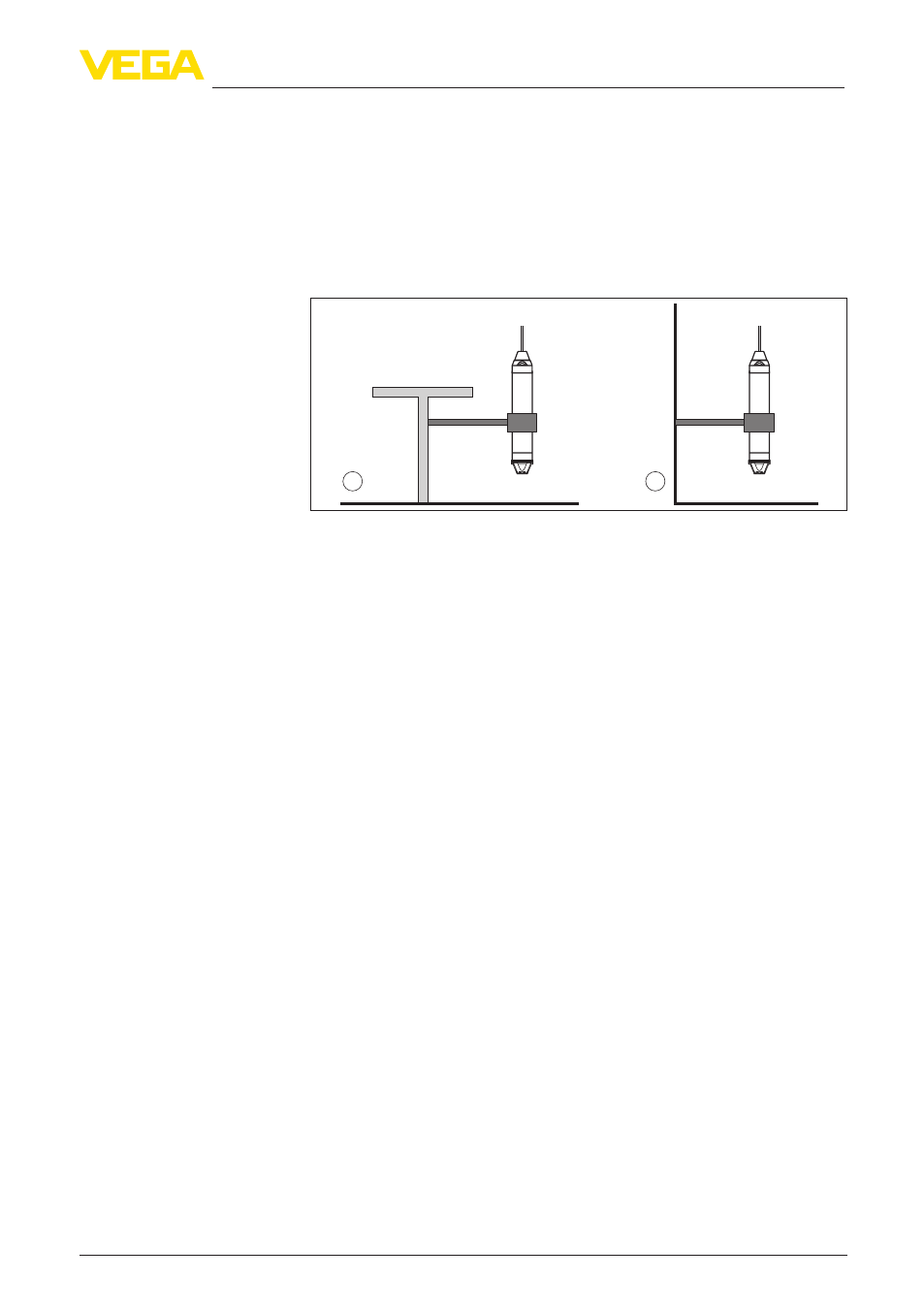

Fig. 12: Mount the sensor such that it is only subjected to a minimum amount of
vibration
1 Fastening on steel girder or frame
2 Fastening on the vessel wall
Gauge pressure in the vessel influences the measured value. For that
reason there must be a pressure compensation facility in the vessel.
Mount in low vibration
area
Pressure compensation
