2 Mounting
Rod and cable components • for VEGAFLEX series 80
44968-EN-131107
2 Mounting
2.1 General instructions
Make sure that there is a distance of at least 300 mm (11.81 in.)
between the rod of the probe and the vessel wall.
≥ 300 mm
(11.81")
150 mm
(5.91")
150mm (5.91"
)
1
SW 13
L

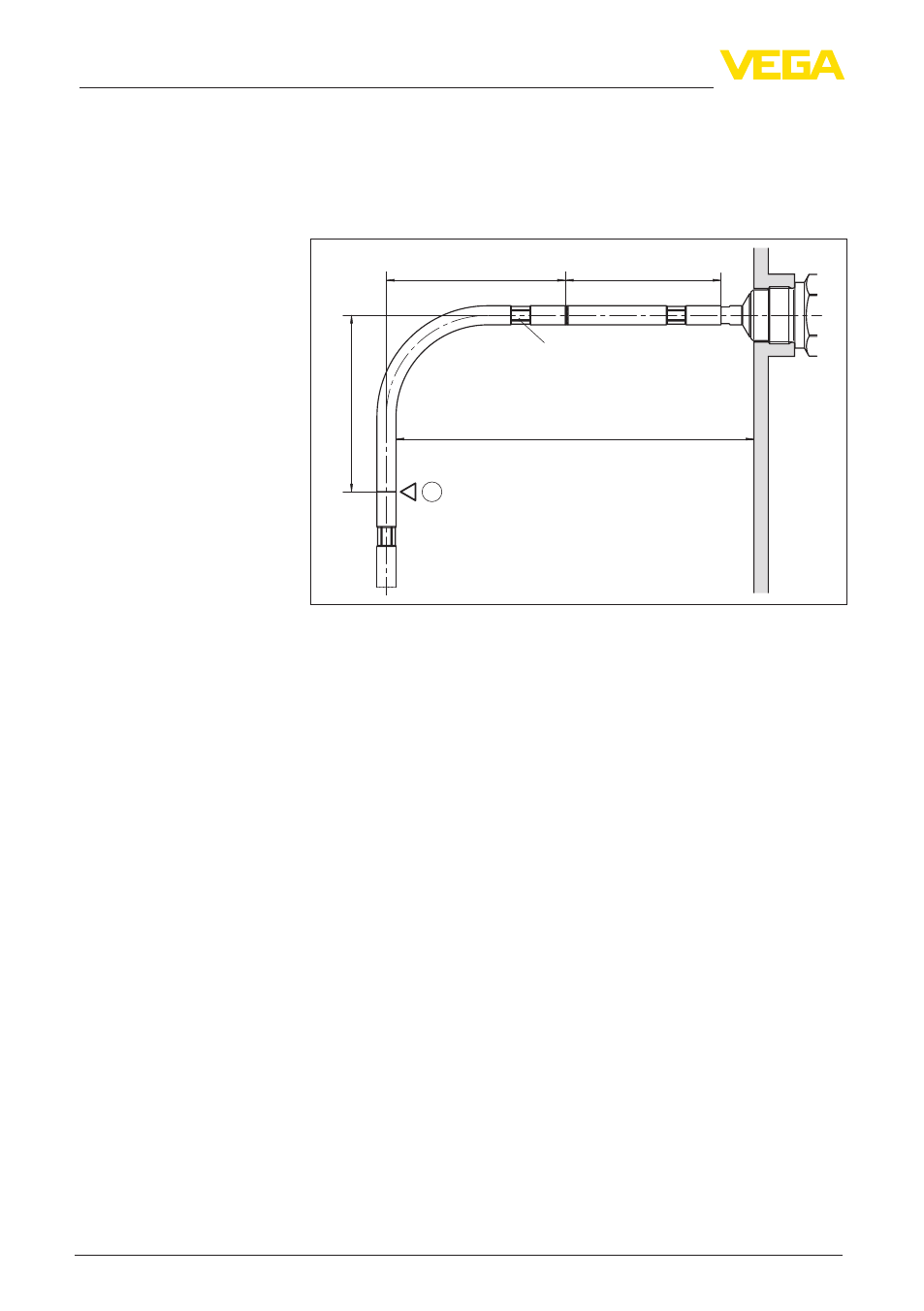

Fig. 3: Min. distance from the vessel wall
1 Upper measuring range end
L Length of the extension rod
Please note that the order length of the probe extension deviates from
the actual length. You can see the order length of the probe in the
following illustration.
With a flange version, the probe length refers to the sealing surface of
the flange, with threaded fittings to the sealing edge of the thread.
Distance to the vessel
wall
Measurement length - ex-
tensions VEGAFLEX 81
