Housing
ø5,5 mm
(0.22")
86 mm (3.39") 120 mm
(4.72")
160 mm
(6.30")
77 mm
(3.03")
47 mm
(1.85")
50 mm
(1.97")
ø4,5 mm
(0.18")
82 mm (3.23") 68 mm (2.68")
72 mm
(2.84")
130 mm
(5.12")
116 mm
(4.57")
M 20 x 1,5
M 20 x 1,5
1
2

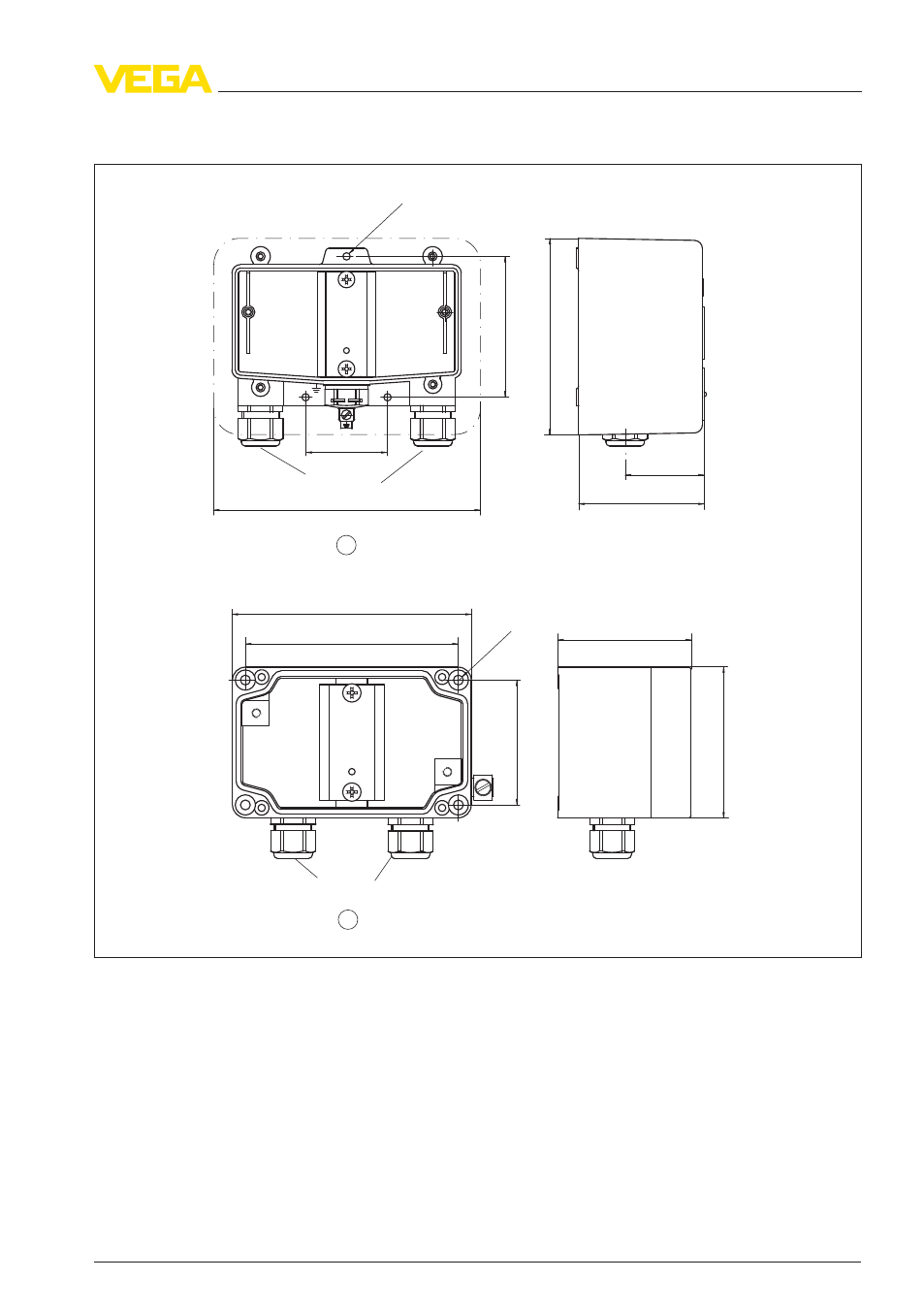

Fig. 11: Dimensions B61-300
1 Plastic housing
2 Aluminium housing
