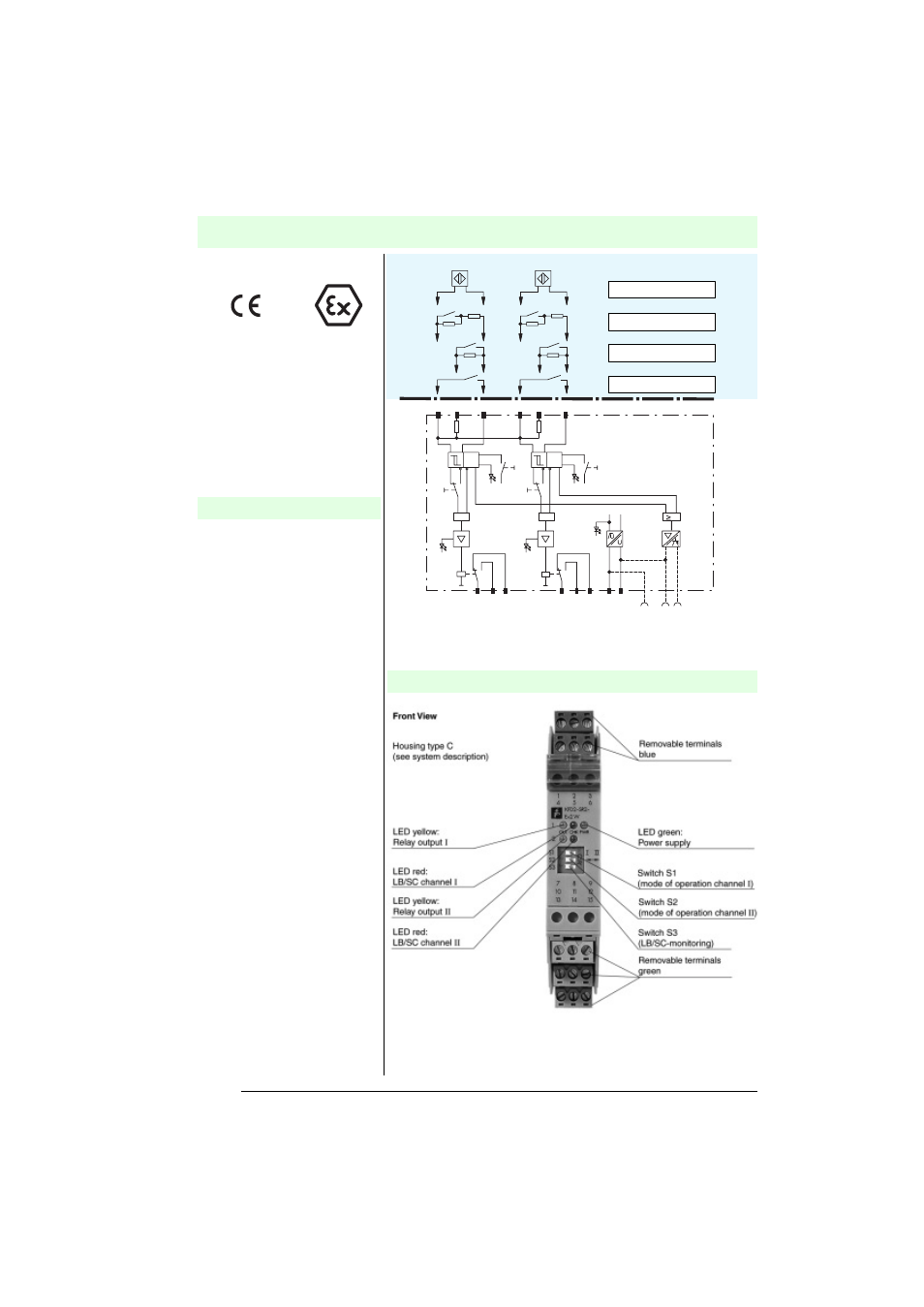

KFA6-SR2-Ex2.W Isolated switch amplifiers
Input I EEx ia IIC Input II EEx ia IIC
green
red red
Output I Output II Power
Rail
LB/SC
collective
error message
Switch S3 in position I
Switch S3 in position I
Switch S3 in position I
Switch S3 in position II
Power
supply
only
KFD2-SR2-Ex2.W
LB
SC
LB
SC
Saf
e area
Hazar
dous area,
zone 0,
zone 1
yellow yellow
without
LB, SC
without SC
1+ 3-
1+ 3-
1+ 3-
2+
3- 2+
3- 1+
S1 S2
S3 S3
II I II I
1
10 k Ω
10 k Ω
14 15
400 Ω ≤ R ≤ 2 kΩ
4+ 6-
4+ 6-
4+ 6-
5+
6- 5+
6- 4+
10 k Ω
10 k Ω
400 Ω ≤ R ≤ 2 kΩ
7 8 9 10 11 12
+ -
+ -
& &
Composition
230 V AC
• 2-channel
• Control circuit EEx ia IIC
• Reversible mode of operation
• 1 relay output with 1 changeover
contact per channel
• EMC acc. to NAMUR NE 21
• LB/SC monitoring
• Usable up to SIL 2 acc. to IEC 61508
The transformer isolated barrier
transfers digital signals from the
hazardous area. Sensors per
DIN EN 60947-5-6 (NAMUR) and
mechanical contacts may be used as
alarms. Control circuits are monitored
for lead breakage (LB) and short circuit
(SC). The external faults are indicated
according to NAMUR NE44 by a red
flashing LED. For type KFD2-SR2-
Ex2.W, an LB/SC collective error
message is in addition transferred
through the Power Rail to the power
feed module. The intrinsically safe
inputs per DIN EN 50020 are safely
isolated from the output and the power
supply. Relay outputs are galvanically
separated from the mains power in
accordance with IEC 61140. Relay
outputs are galvanically separated from
each other in accordance with
IEC 61140.
Function
Output: relay
