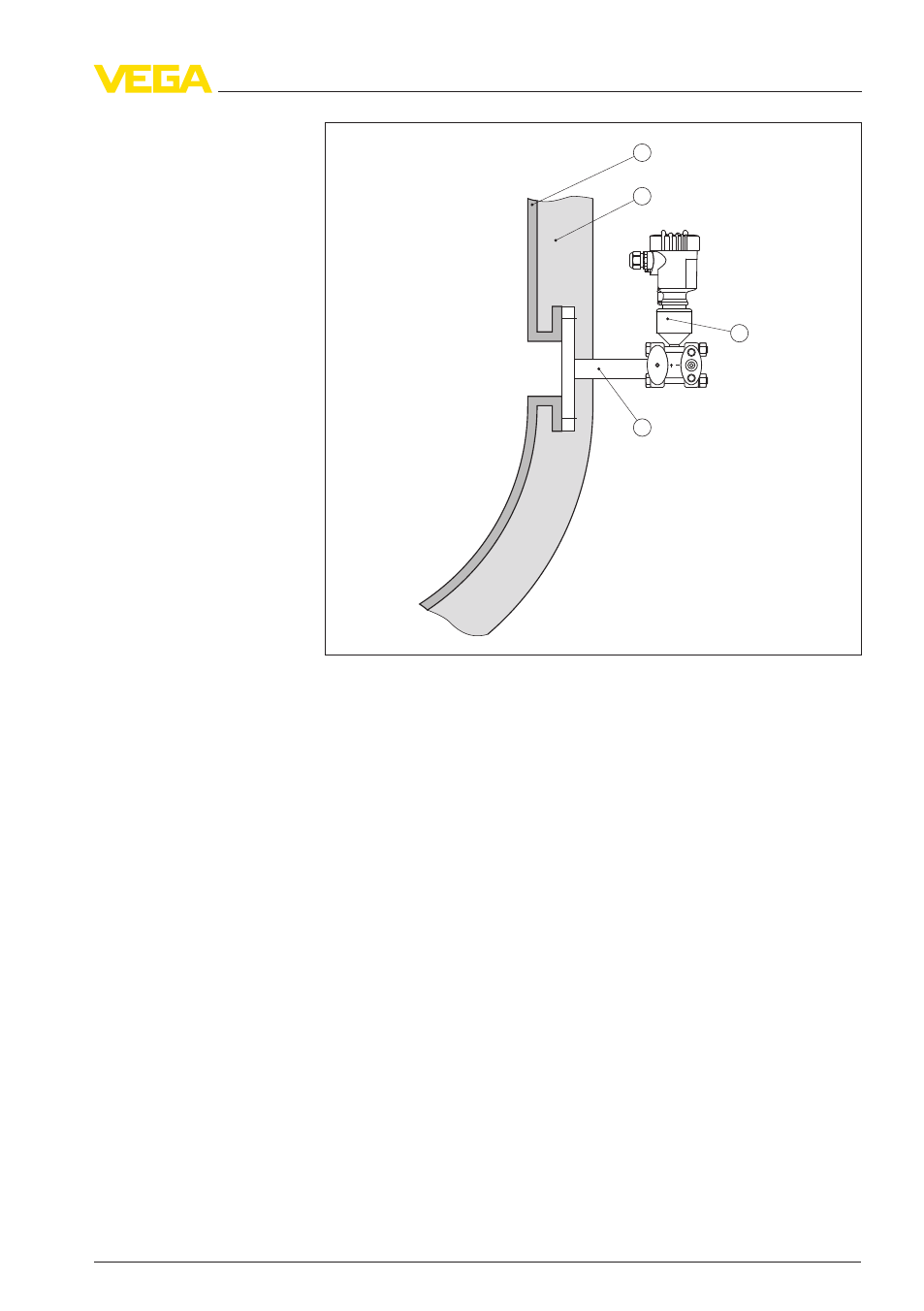

Fig. 2: Recommended vessel insulation with chemical seal without cooling area
(length 100 mm)
1 Vessel wall
2 Vessel insulation
3 VEGADIF 65
4 Chemical seal
If a suitable insulation of the vessel is not possible, use a chemical seal
with cooling area (length 150 mm).
4.2 Instructions for handling
l
Instruments must be protected against soiling and strong fluctua-
tions of the ambient temperature
l
Leave the measuring system in the packaging until mounting to
protect it against mechanical damages
l
When removing the packaging and when mounting, take special
care to avoid mechanical damage and deformation of the
diaphragm
l
Do not carry the pressure transmitter by holding the capillary line
l Do not bent the capillary lines. Kinks can cause leakage and lead
to an increase in response time
l
Never loosen sealed screws on the chemical seal or the pressure
transmitter
l
Do not damage the isolating diaphragm: scratches on the isolating
diaphragm (e.g. from sharp subjects) are the main areas where
corrosion can occur
