2 Connecting to power supply
2.1 W iring plan
Each respective wiring plan shows the assignment of the individual
pins of the plug connector to the respective signal outputs. The chart
shows the assignment of the individual contact pins to the terminals of
the sensor electronics.
Caution:
With mains supply (230 V), the switching circuit must be diverted from
the supply circuit.
4 3
5
1
2
6 7 8
3
2
7
1
4
5
6
8

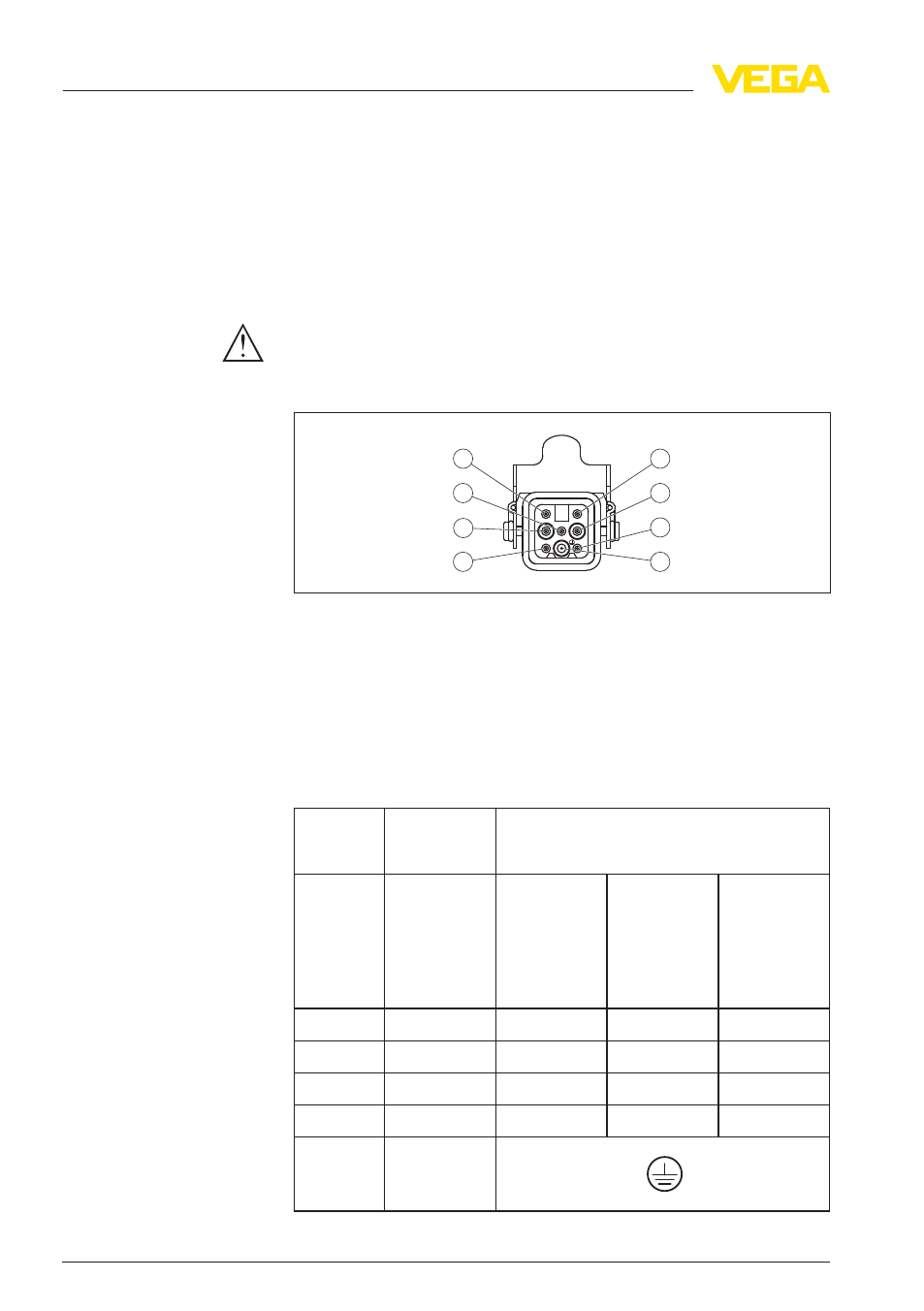

Fig. 1: Top view of the plug connector
1 + (Pin 1)
2 Transistor output (Pin 2)
3 Transistor output (Pin 3)
4 - (Pin 4)
5 free (Pin 5)
6 free (Pin 6)
7 free (Pin 7)
8 Screen (Pin 8)
Contact
pin Colour -
connection
cable Terminal, electronics module
VEGACAP,
VEGAWAVE,
VEGAVIB,
VEGA-
SWING,
VEGAKON VEGAMIP
R61, R62
VEGAMIP
T61
Pin 1 Black 1 1 1
Pin 2 Blue 4 2 2
Pin 3 Red 3 7 -
Pin 4 Yellow 2 6 -
Pin 8 Green/yellow
Transistor output
