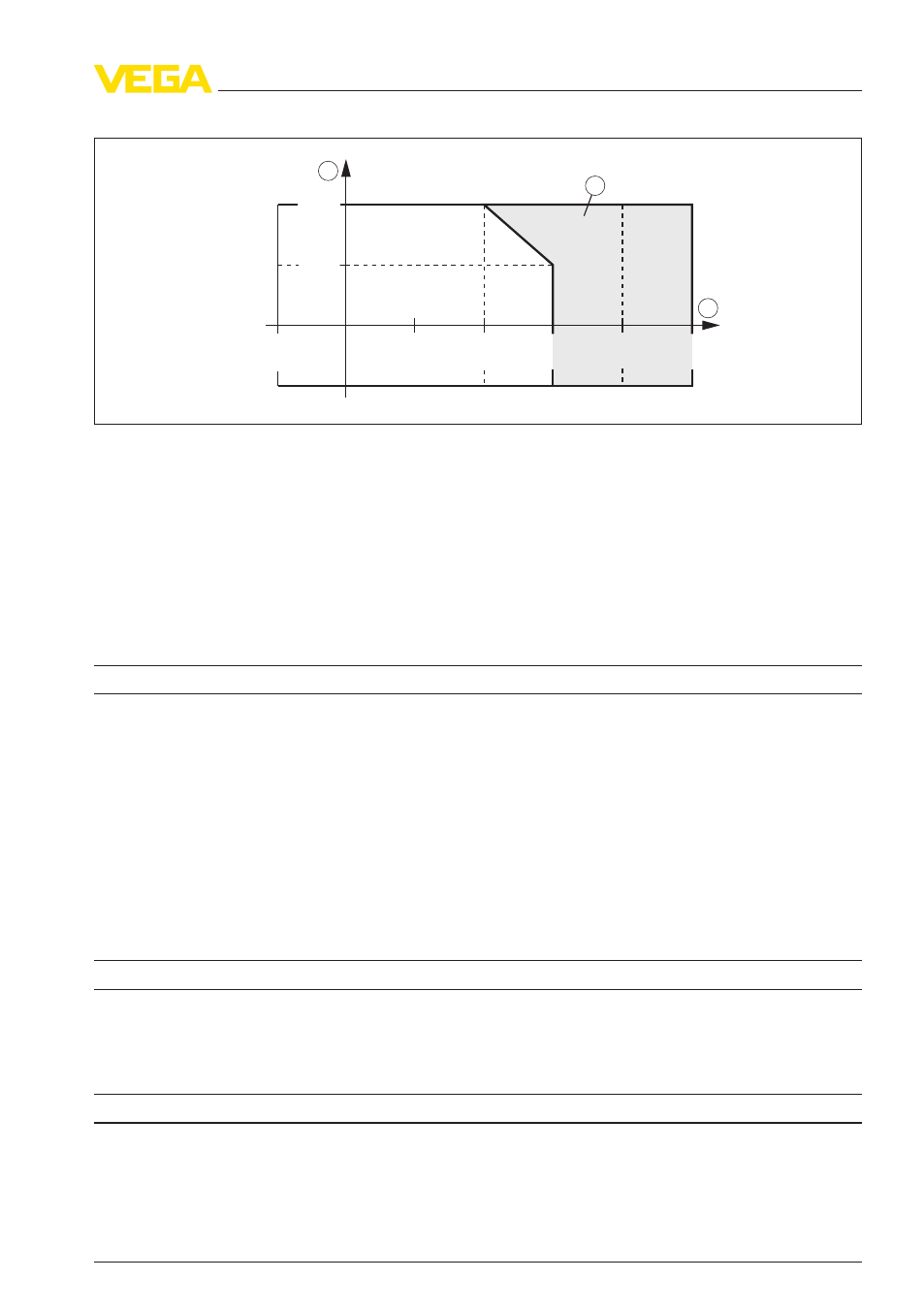

Fig. 30: Ambient temperature - Process temperature
1
Process temperature
2
Ambient temperature
3
Temperature range with temperature adapter
Product density
-
Standard
>
0.02 g/cm³ (0.0007 lbs/in³)
-
adjustable
>
0.008 g/cm³ (0.0003 lbs/in³)
Granular size
max. 10 mm (0.4 in)
Electromechanical data
Cable entry/plug (dependent on the version)
-
Single chamber housing
l
1 x cable entry M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5; attached 1 x cable
entry M20 x 1.5
or:
l
1 x cable entry ½ NPT, 1 x blind stopper ½ NPT,
1 x cable entry ½ NPT
or:
l
1 x plug M12 x 1; 1 x blind stopper M20 x 1.5
Spring-loaded terminals
for wire cross-section up to 1.5 mm² (AWG 16)
Adjustment elements
Mode switch
-
Min.
Min. detection or dry run protection
-
Max.
Max. detection or overflow protection
Voltage supply
Operating voltage
20 … 253 V AC, 50/60 Hz, 20 … 253 V DC
Domestic current requirement
approximately 3 mA (via load circuit)
Load current
VEGAWAVE
63 • - contactless electronic switch
29
9 Supplement
