Process temperature (thread or flange
temperature) with temperature adapter
(option)
-50 … +250°C (-58 … +482°F)
1
2
3
-50˚C
(-58˚F)
50˚C
(122˚F)
40˚C
(104˚F)
-40˚C
(-40˚F)
80˚C
(176˚F)
0˚C
(32˚F)
100˚C
(212˚F)
150˚C
(302˚F)
200˚C
(392˚F)
250˚C
(482˚F)

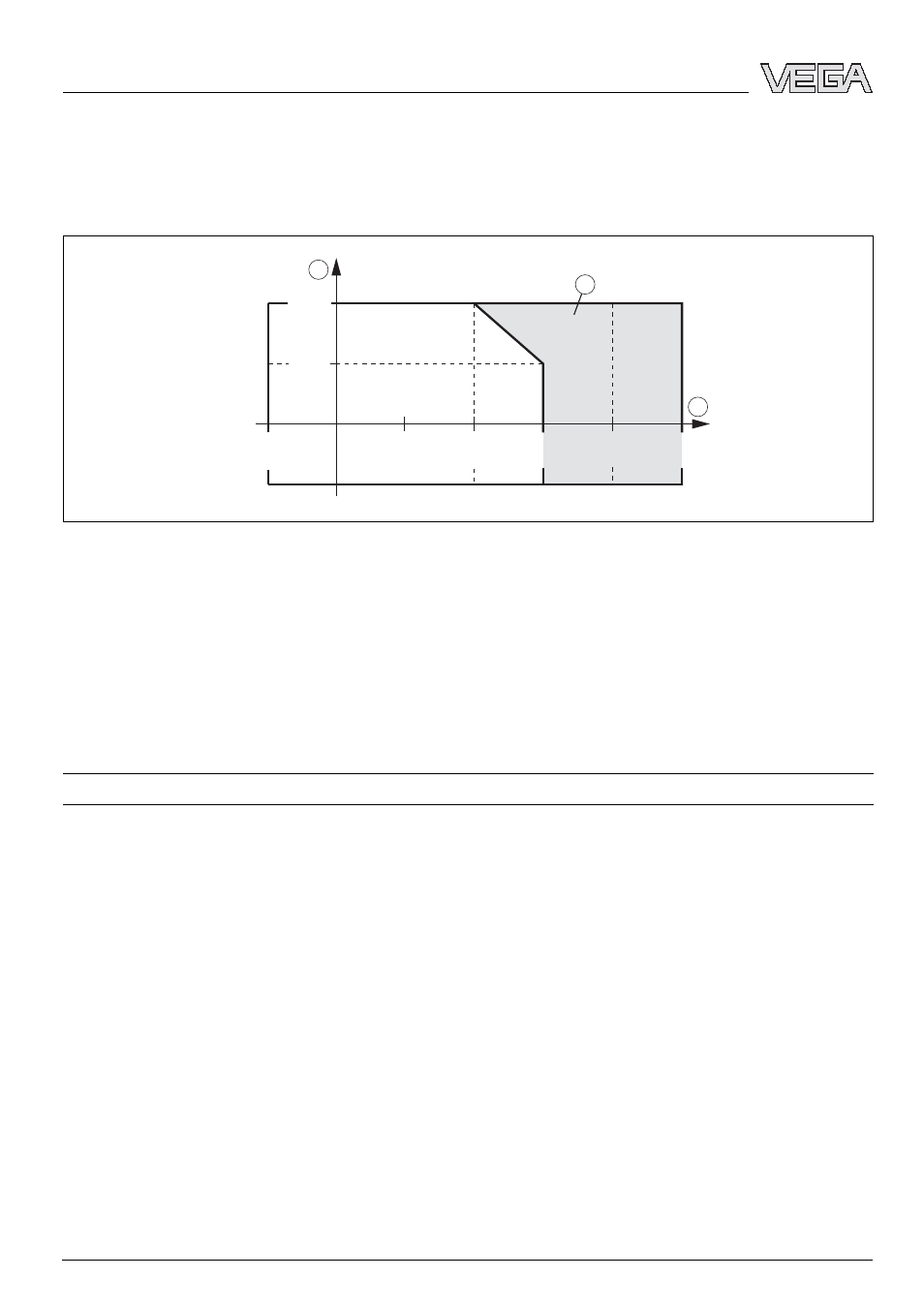

Fig. 14: Ambient temperature - Product temperature
1 Product temperature
2 Ambient temperature
3 Temperature range with temperature adapter
Density
- Standard >0.02 g/cm³ (>0.0007 lbs/in³)
- adjustable >0.008 g/cm³ (>0.0003 lbs/in³)
Electromechanical data
Cable entry/plug (dependent on the version)
- Single chamber housing
l
1x cable entry M20x1.5 (cable-ø 5 … 9 mm),
1x blind stopper M20x1.5, attached 1x
cable entry M20x1.5
or:
l
1x cable entry ½ NPT, 1x blind stopper
½ NPT, 1x cable entry ½ NPT
or:
l
1x plug M12x1, 1x blind stopper M20x1.5
Spring-loaded terminals for wire cross-section up to 1.5 mm²
(0.0023 in²)
Supplement
