30
9 Supplement
VEGACAL 63 • For connection to a signal conditioning instrument
30318-EN-130917
For that reason the associated approval documents of these instruments have to be carefully
noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools"
and "serial number search" as well as via "Downloads" and "Approvals".
9.2 Dimensions
Housing in protection IP 66/IP 67 and IP 66/IP 68; 0.2 bar
3 2 1 4
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm (4.61"
)
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 69 mm
(2.72")
ø 79 mm
(3.03")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 116 mm (4.57")
ø 86 mm (3.39")
11
6 mm (4.57"
)
M20x1,5
M20x1,5/
½ NPT

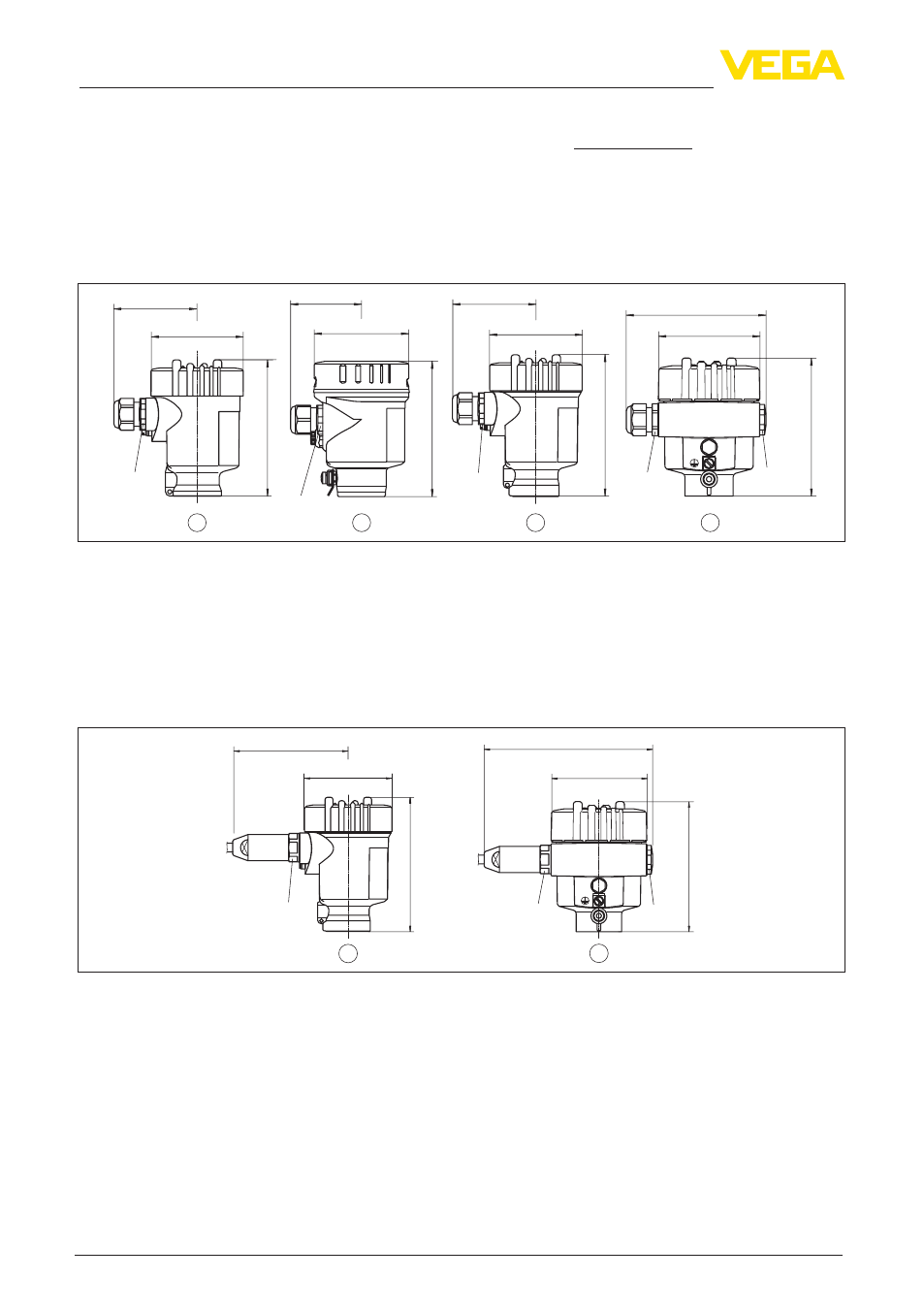

Fig. 16: Housing versions in protection rating IP 66/IP 67 and IP 66/IP 68, 0.2 bar (with integrated display and
adjustment module the housing is 9 mm/0.35 in higher)
1 Plastic housing
2 Stainless steel housing, electropolished
3 Stainless steel housing - precision casting
4 Aluminium housing
Housing in protection IP 66/IP 68, 1 bar
117 mm (4.61"
)
~ 103 mm
(4.06")
ø 77 mm
(3.03")
116 mm (4.57"
)
~ 150 mm
(5.91")
ø 84 mm
(3.31")
M20x1,5 M20x1,5 M20x1,5
1 2
Fig. 17: Housing versions in protection IP 66/IP 68, 1 bar (with integrated PLICSCOM the housing is 9 mm/0.35 in
higher)
1 Stainless steel housing
2 Aluminium housing
