2 Module-33/Ex-33
Product description

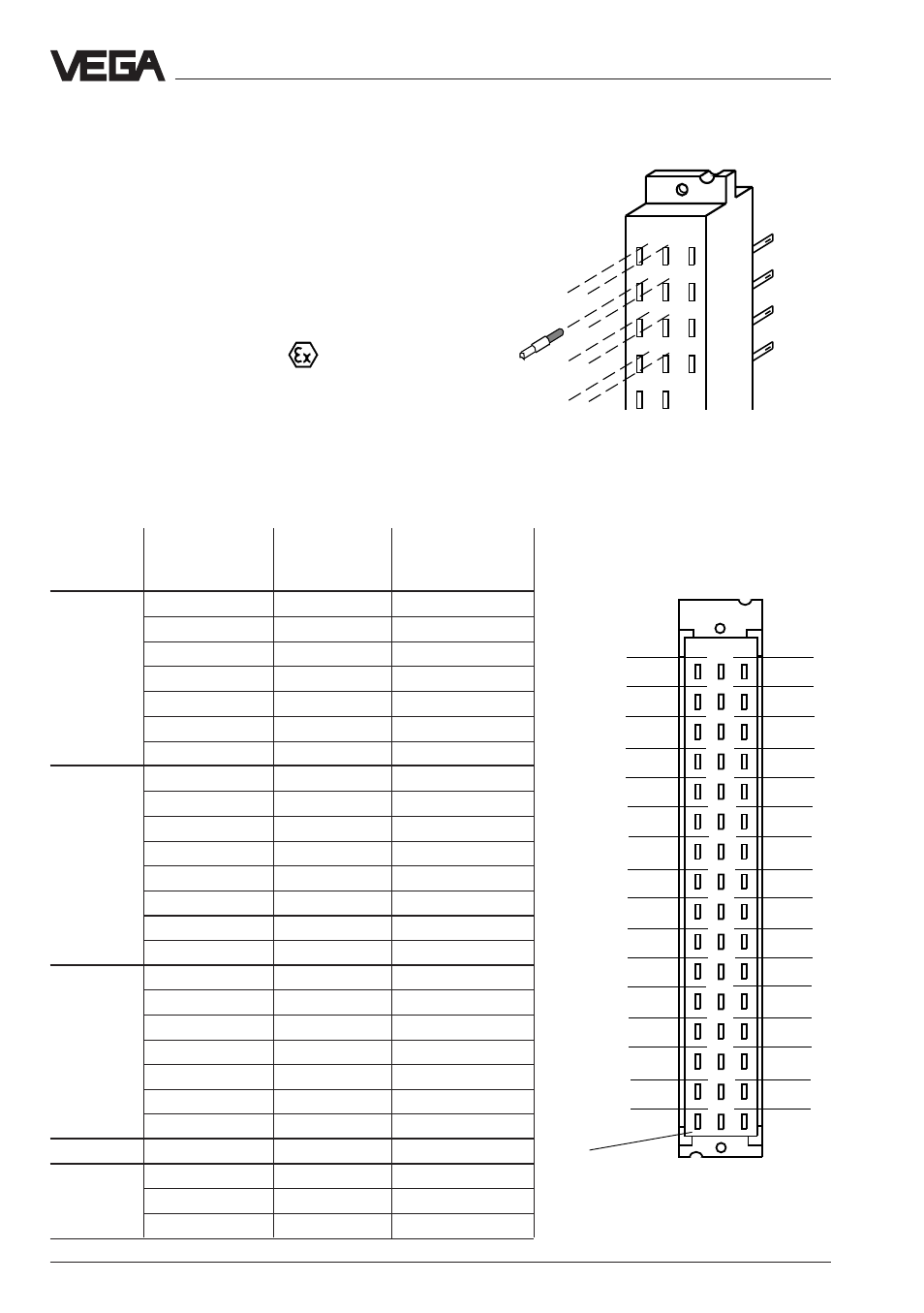

Coding of the module
The multipoint connector can be provided with
coded pins to avoid interchanging of the differ-
ent instruments in the carrier. Coded pins are
attached to each module. Equip the multipoint
connector with these coded pins acc. to the
table and figure on this page. The multiple
plug of VEGA-instruments has appropriate
holes (mechanical coding).
Module for Ex-instruments:
The multipoint connector must be provided
with three coded pins. The coded pin for the
Ex coding (position c23) avoids that not-Ex-
instruments are plugged into an Ex-module.
z b d
o 31 o
o 29 o
o 27 o
o 25 o
o 23 o
o 21 o
o 19 o
o 15 o
o 11 o
o 7 o
o 3 o
o 1 o
o 5 o
o 9 o
o 13 o
o 17 o
a c a1
a3
a5
a7
a9
a11
a13
a15
a17
a19
a21
a23
a25
a27
a29
a31
c1
c3
c5
c7
c9
c11
c13
c15
c17
c19
c21
c23
c25
c27
c29
c31
Coded
pin
Multipoint connector
(plug-in side)
,,,
,,,
o o
o o
o o
o o
o o
Instrument Instrument Instrument Ex-coding
group coding
LOG 571 CPU a1 / c3 -
EV a3 / c3 -
AA a5 / c3 -
AR a7 / c3 -
AT a9 / c3 -
EA a11 / c3 -
AD a13 / c3 -
MET 513 Ex a1 / c5 c23
TRENN 544 EX a1/c5 c23
514 EX a3 / c5 c23
515 Ex a5 / c5 c23
514 DEx a5/c5 c23
514 V a7/c5 -
515 V a7 / c5 -
514 VD a7/c5 -
TOR 521 Ex a9 / c7 c23
522 Ex a11 / c7 c23
523 Ex a13 / c7 c23
527 Ex a15 / c7 c23
536 Ex a17 / c7 c23
537 Ex a19 / c7 c23
532 Ex a21 / c7 c23
SEL 543-547 a1 / c9 -
Others TRENN 547 VEx a23 / c11 c23
TRENN 548 VEx a25 / c11 c23
COM 557 a27 / c11 -
