VEGATRENN 547 V Ex 3
Product description
1 Product description
1.1 Function, configuration and
mounting
Function
Ex-separator VEGATRENN 547 V Ex is used
for intrinsically safe, galvanically isolated
supply of up to two ultrasonic or radar
sensors. At the input side it is connected to
the two-wire-VBUS-line of the signal
conditioning instrument and provides at the
output side 2 x 2 ib-circuits. Each sensor is
supplied via two ib-circuits so that two
sensors can be connected to Ex-separator.
The Ex-separator can be used in conjunction
with the following signal conditioning
instruments or sensors:
- VEGAMET 514␣ V and 515␣ V
- EV-card of VEGALOG 571
- ultrasonic sensors VEGASON series 80
- radar sensors VEGAPULS series 64 and
series 80 for intrinscially safe supply “ib“.
The intrinsically safe ib-circuits are isolated as
well as from the not intrinsically safe circuits.
Configuration
Configuration
The Ex-separator VEGATRENN 547 V Ex is
designed in 19“-technology with 5 TE (= 25,4
mm). The connection is made via a multiple
plug acc. to DIN 41 612.
Mounting
There are the following mounting possibilities
- in housing type 506 with VEGAMET
- in carrier BGT 596 Ex with VEGAMET
- carrier BGT LOG 571 *) with VEGALOG
Example 1:
In housing type 506 with VEGAMET

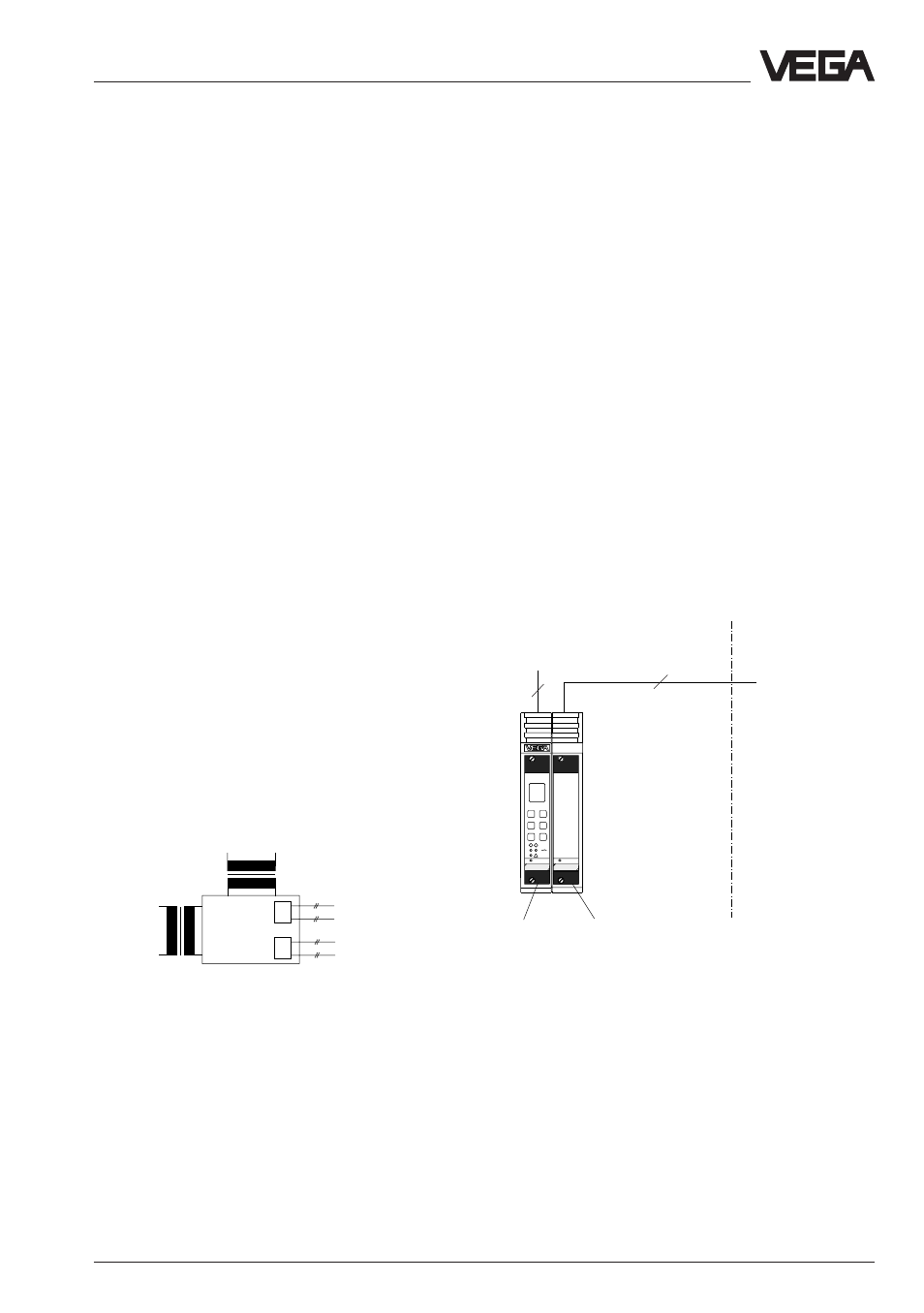

Fig. 1.1: Block diagram of the Ex-separator
Power supply
Intrinsically safe ib-
circuits
Sensor 1
Sensor 2
Signal
conditioning
instrument
(VBUS)
electronics
VEGAMET 515V VEGATRENN 548VEx
Not-Ex-area Ex-area
two
VBUS ib IIB-
circuits per
sensor
Supply
VEGATRENN
547␣ V Ex VEGAMET
514␣ V
515␣ V
*) If several VEGATRENN 547 V Ex are used, it is
recommended to separate them into the cheaper
BGT 596 Ex.
