VEGAWELL 71

Set-up

5 Set-up

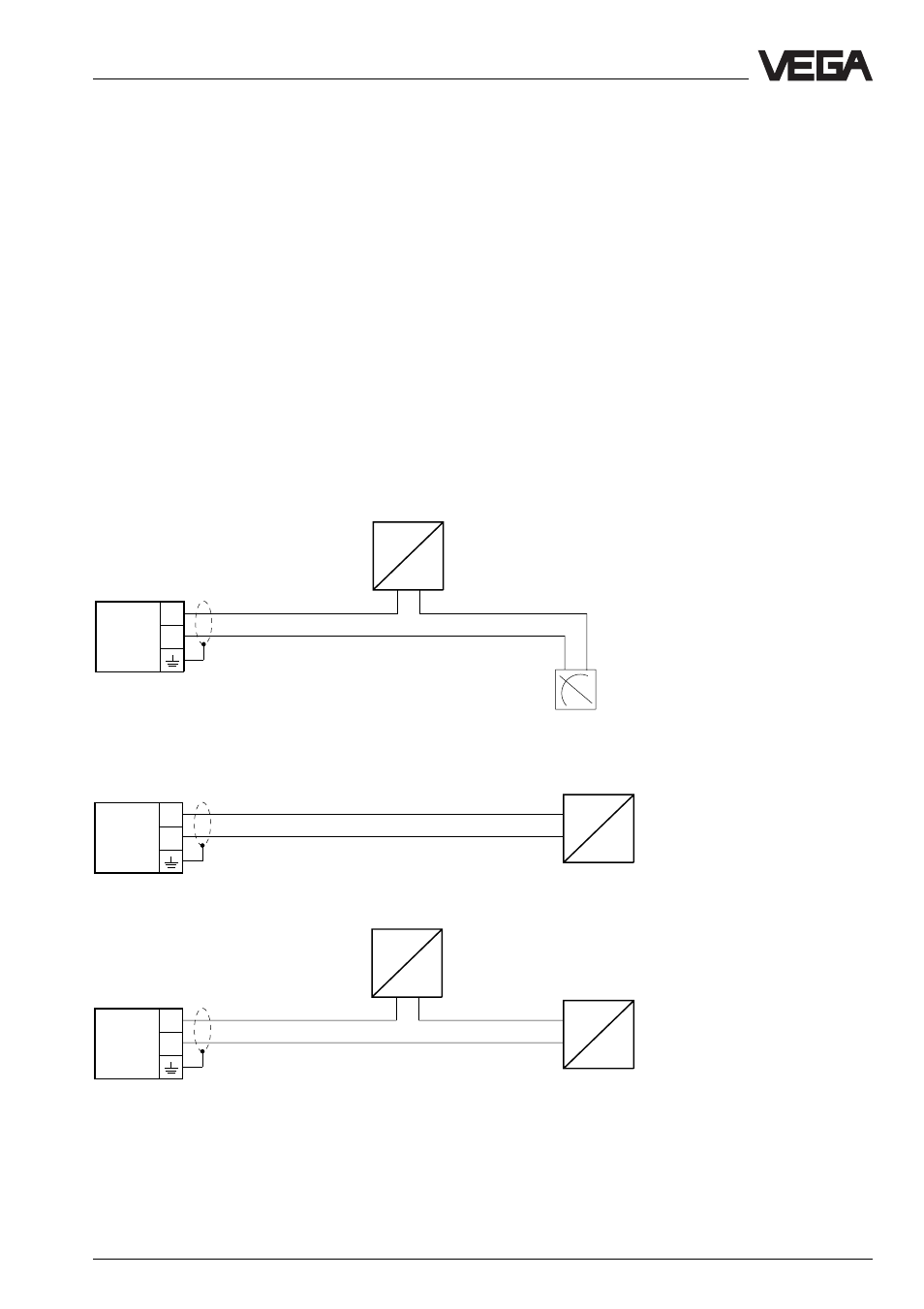

Connection possibilities

The electronics of the VEGAWELL pressure
transmitter requires a supply voltage of
12 … 36 V DC. Connect the pressure trans-
mitter to the supply voltage. The pressure
transmitter then takes within its measuring
range, a pressure proportional current be-
tween 4 … 20 mA.

The max. permissible load depends on the
height of the supply voltage (see diagram in
chapter 2´ Technical data).

–

+ –

–

+
–

+ –

–

VEGAWELL 71

4 … 20 mA

12 … 36 V DC

Power supply unit
(e.g. VEGASTAB)

Power supply unit
(e.g.VEGASTAB)

Processing unit passive
(VEGAWELL is powered by the
external power supply unit)

Processing unit active
(VEGAWELL is powered)
