Pressure transmitter D95 (Profibus PA) 5
Product description

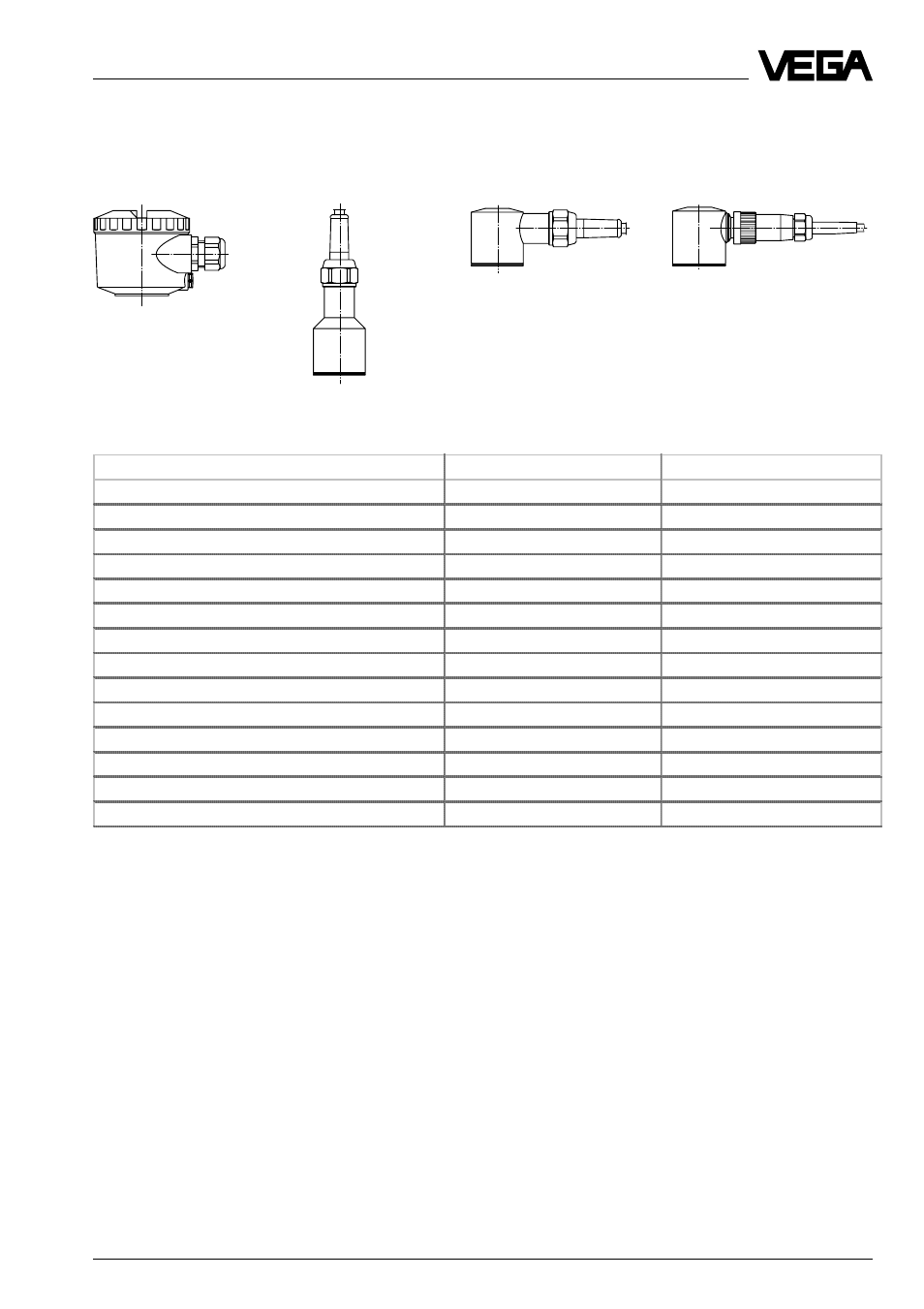

1.2 Types and versions
Housing with ter-
minals Cable outlet
axial Cable outlet lateral Plug connection
lateral
Nominal meas. range (gauge pressure) Gauge press. resistance Low pressure resistance
0…0.1 bar / 0…10 kPa 2.5 bar / 250 kPa -0.1 bar / -10 kPa
0…0.2 bar / 0…20 kPa 5 bar / 500 kPa -0.2 bar / -20 kPa
0…0.4 bar / 0…40 kPa 10 bar / 1 000 kPa -0.4 bar / -40 kPa
0…1.0 bar / 0…100 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
0…2.5 bar / 0…250 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
0…5.0 bar / 0…500 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
0…10.0 bar / 0…1 000 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
0…20.0 bar / 0…2 000 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-0.5…+0.5 bar / -50…+50 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-1.0…0.0 bar / -100…0 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-1.0…+1.5 bar / -100…+150 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-1.0…+4.0 bar / -100…+400 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-1.0…+10.0 bar / -100…+1 000 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
-1.0…+20.0 bar / -100…+2 000 kPa 25 bar / 2 500 kPa -1.0 bar / -100 kPa
