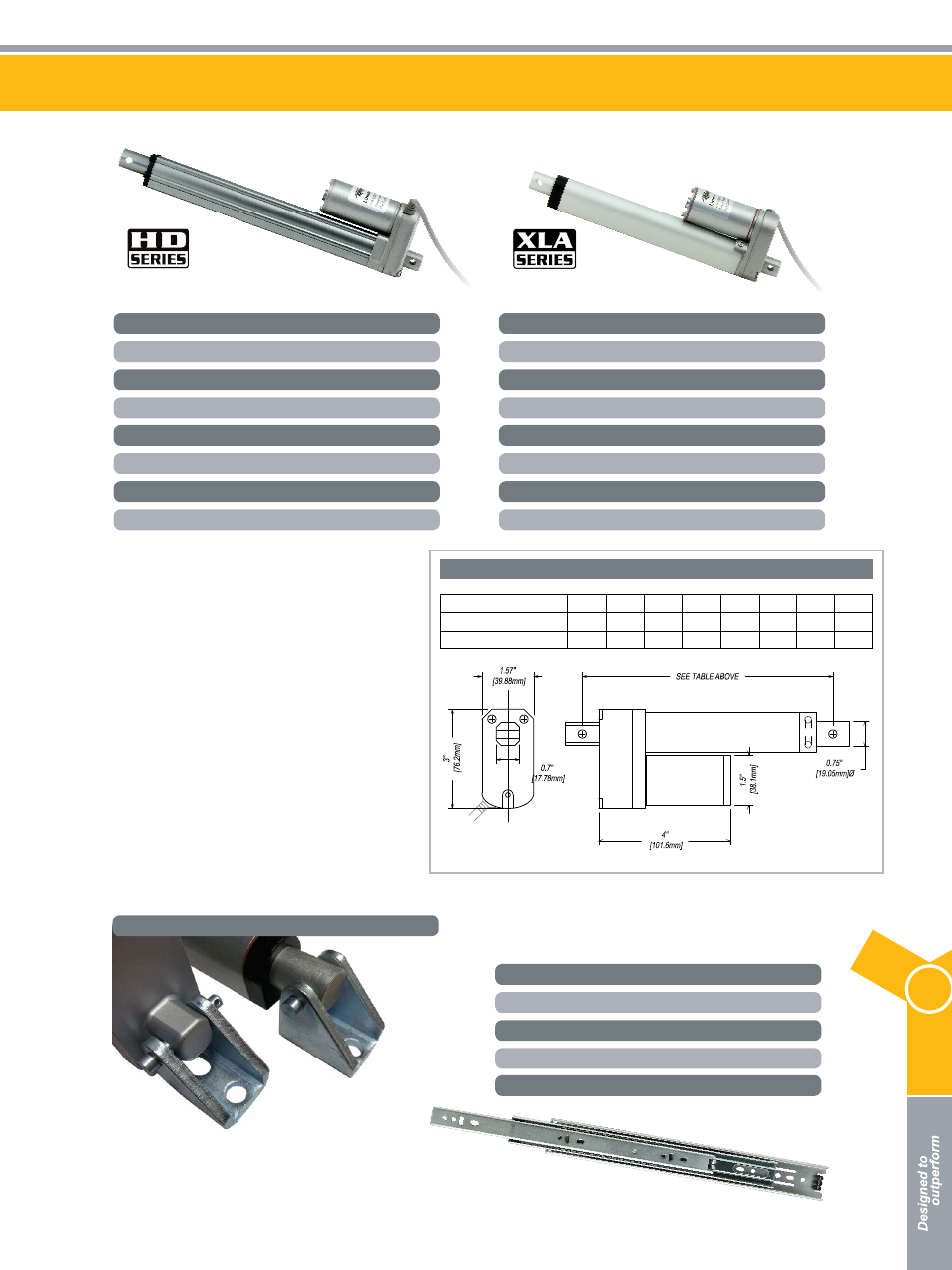

LINEAr ACTuATOrs . BrACKETs . TrACKs
Linear Actuators - heavy duty series
sliding Tracks
Linear Actuators - xLA series
XLA02HD
2” 175lbs
XLA04HD
4” 175lbs
XLA06HD
6” 175lbs
XLA08HD
8” 175lbs
XLA10HD
10” 175lbs
XLA12HD
12” 175lbs
XLA18HD
18” 175lbs
XLA24HD
24” 175lbs
SLT10Z
10”
Zinc
SLT12Z
12”
Zinc
SLT16Z
16”
Zinc
SLT20Z
20”
Zinc
SLT24Z
24”
Zinc
Linear Actuator Brackets
ACTBRK
Steel Bracket
1pc/bag
XLA02
2”
100lbs
XLA04
4”
100lbs
XLA06
6”
100lbs
XLA08
8”
100lbs
XLA10
10”
100lbs
XLA12
12”
100lbs
XLA18
18”
100lbs
XLA24
24”
100lbs
Hole to Hole Dimensions (INCHES)
STROKE LENGTH
2
4
6
8
10
12
18
24
COLLAPSED LENGTH
6.3
8.3
10.3
12.3
14.3
16.3
22.3
28.3
EXTENDED LENGTH
8.3
12.3
16.3
20.3
24.3
28.3
40.3
52.3
Our HD series linear actuators are super quiet with
an incredible 750 pound force with highest in
industry IP65 total Dust Protection and WaterProof.
With built-in Limit Switches (fixed limit switch).
Our XLA series linear actuators are super quiet
with an incredible 450 pound force with highest
in industry IP54 total Dust Protection and
WaterResistant. With built-in Limit Switches (fixed
limit switch).
Applications: Automotive, Industrial, Medical,
Household, Entertainment Equipment.
Steel bracket - 2pcs needed per Actuator.
Corrosion Resistant Ball-Bearing Tracks with
150lbs Capacity
XLA12HD
XLA08
