3. Specification
2. Monitor Mounting
145~160 cm
● Power supply for indoor monitor: DC 24V
● Power consumption: Standby 38.4mA; Working 320mA
● Monitor screen: 7 Inch digital color LCD
● Display Resolutions: 800*3(R, G, B) x 480 pixels
● Video signal: 1Vp-p, 75Ω, CCIR standard
● Wiring: 2 wires, non-polarity
● Dimension: 139(H)×212(W)×15(D)mm

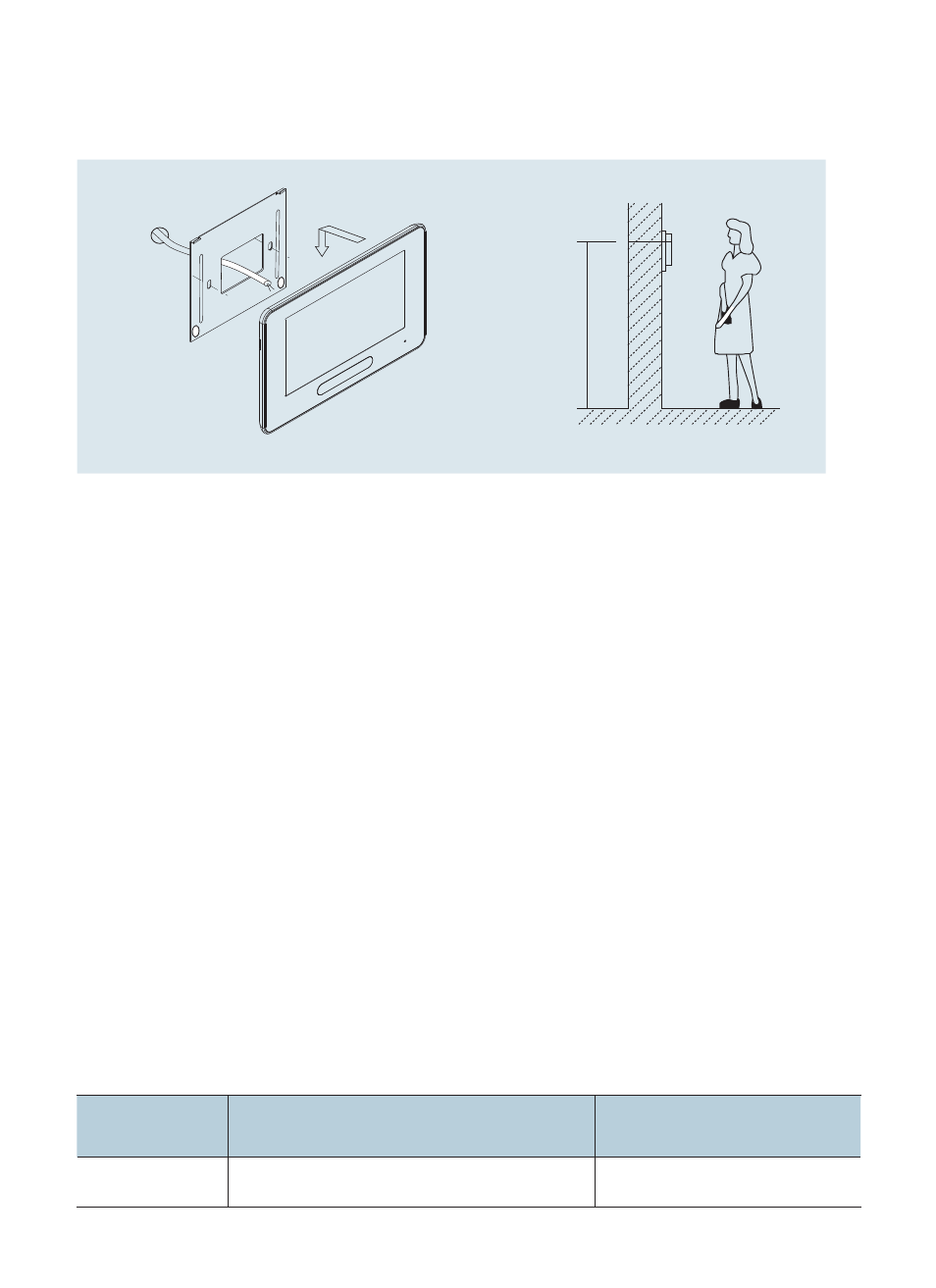

1. Use the screws to fix the Mounting Bracket on the mounting box.(fitting accesories
includes a Bracket (Two pieces of 4X25 screws are needed for fastening the
Mounting Bracket), Special 2 wire connectors to connect with Monitor)
2. Wire the system correctly(see the later connection chapter) then hang the Monitor
on the Mounting Bracket firmly.
4. Ordering Information For Monitor
Item Brief Description Menu style
DT37/TD7
7 inch digital color TFT screen monitor with
white housing
Color icon
