4 = Yes 7 = Option

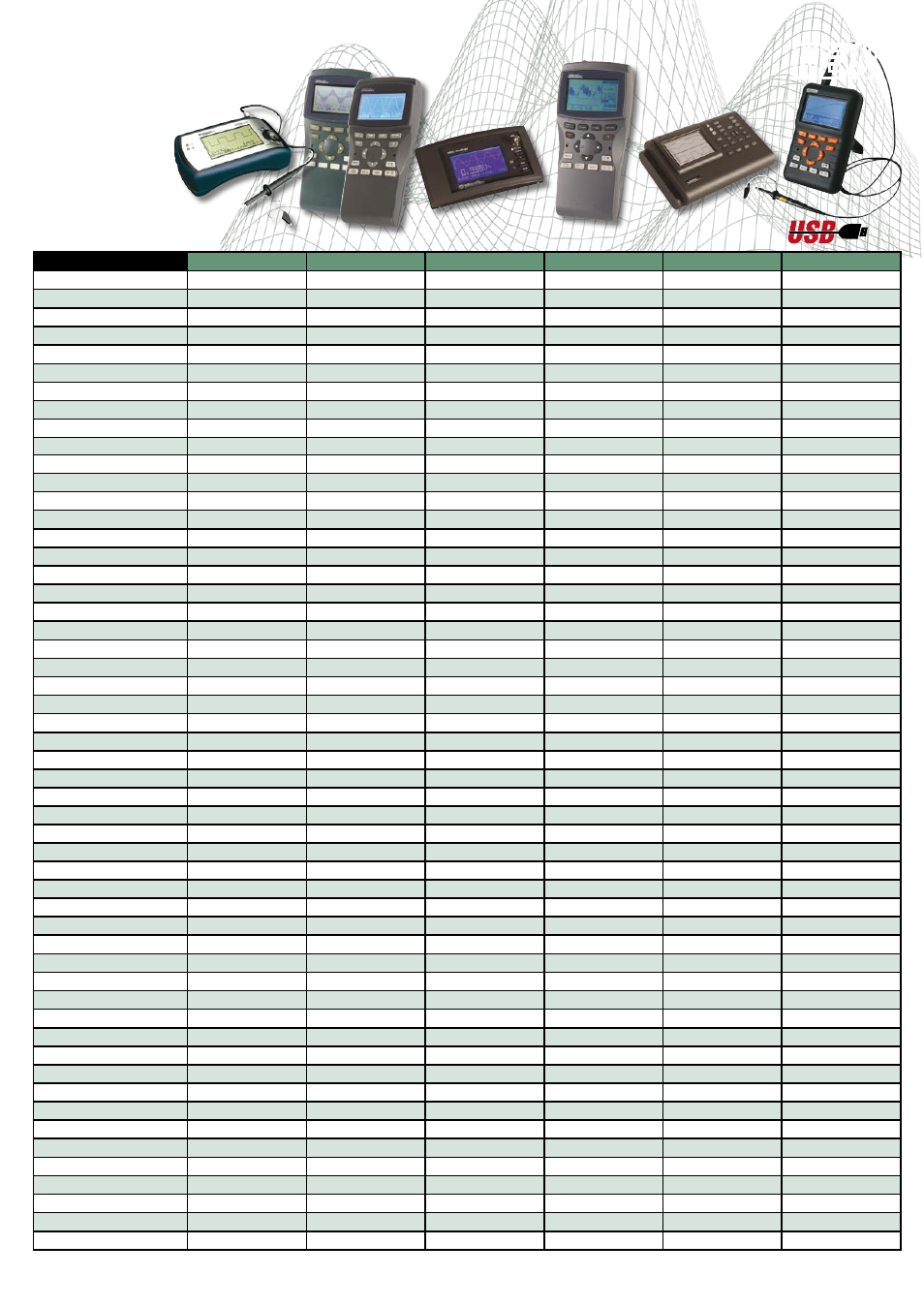

OSCILLOSCOPES RANGE PPS10 HPS10 / HPS10SE VPS10 HPS40 APS230 HPS50
Number of channels 1 1 1 1 2 1
Maximum sample rate 10MS/s 10MS/s 10MS/s 40MS/s 2 x 240MS/s 40MS/s
Maximum bandwith to 2MHz to 2MHz to 2MHz to 12MHz 30MHz (ex. 1&2mV) 12MHz
Real time sample rate 1MS/s 1MS/s 1MS/s 5MS/s 2 x 60MS/s 5MS/s
Number of screen layouts 5 5 6 5 5 5
Screen size (pixels) 128x64 128x64 128x64 192x112 192x128 192x112
LCD backlight White/Blue for SE White/Blue 4 White White
Memory length (bytes) 256 256 256 256 2 x 256 2 x 256
Resolution 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit
Sensitivity Vpp 0.1mV 0.1mV 0.1mV 0.1mV 0,03mV 0,1mV
Volt /div range 5mV to 20V / 12 steps 5mV to 20V / 12 steps 5mV to 20V / 12st 5mV to 20V / 12st 1mV to 20V / 14 st 5mV to 20V / 12 st
Maximum volt. with x 10 probe 600VDC incl ACp 600VDC incl ACp 600VDC incl ACp 600VDC incl ACp 600VDC incl Acp 600VDC incl Acp
Fastest time / div 0.2µs 0.2µs 0.2µs 0.05µs 0.025µs 0.005µs
Slowest time / div 3600s 3600s 3600s 3600s 3600s 3600s
Data or screen to computer RS232 RS232 RS232 USB
PC Software Download only Download only Download only Download only
Operation through computer Yes opto- RS232 USB
Screen memories 2 2 2 1 2
Stand alone operation 4 4 4 4 4
Oscilloscope probe included 4 4 4 4 4 x2 4
Recorder mode 4 4 4 4 4 4
Spectrum analyser mode
Bode plot option (+ PCG10)
X position and Y position shift 4 4 4 4 4 4
X 10 probe calculation option 4 4 4 4 4 4
Adjustable trigger level 4 4 4
External trigger input via other channel
Pre trigger function 4
Zoom function for time/div
Auto set-up FULL 4 4 4 4 4 4
Auto set-up SEMI
Dynamic screen for markers 4 4 4 4
Signal markers ( dt / dV / 1/dt ) 4 4 4 4 4
Audio power calculation 4 4 4 4 4 4
Gain measurement 4
dBm measurement 4 4 4 4 4 4
dBV measurement 4 4 4 4 4 4
AC only true rms display 4 4 4 4 4 4
AC + DC true rms display 4 4 4 4 4 4
DC measurement 4 4 4 4 4 4
AC+DC max / min / pk to pk 4 4 4 4 4 4
Duty Cycle / pos neg width
Rise / Fall time
Period / Frequency / Phase 4 4 via markers 4 4 via markers 4 4 via markers 4 4 via markers 4 4 via markers
Auto power off option 4 4 4 4 4
Battery / rechargeable battery 4 4 4 included included
Low battery indication 4 4 4 4 4
Battery charge circuit 4 4 4 fast charge 4
Holster included (BAGHPS) 7 4 4
Soft bag (GIB) 7
Hard case (CASEHPS) SE version only 4 4
Upgradeable firmware / software 4
Panel mount type 4
NEW
