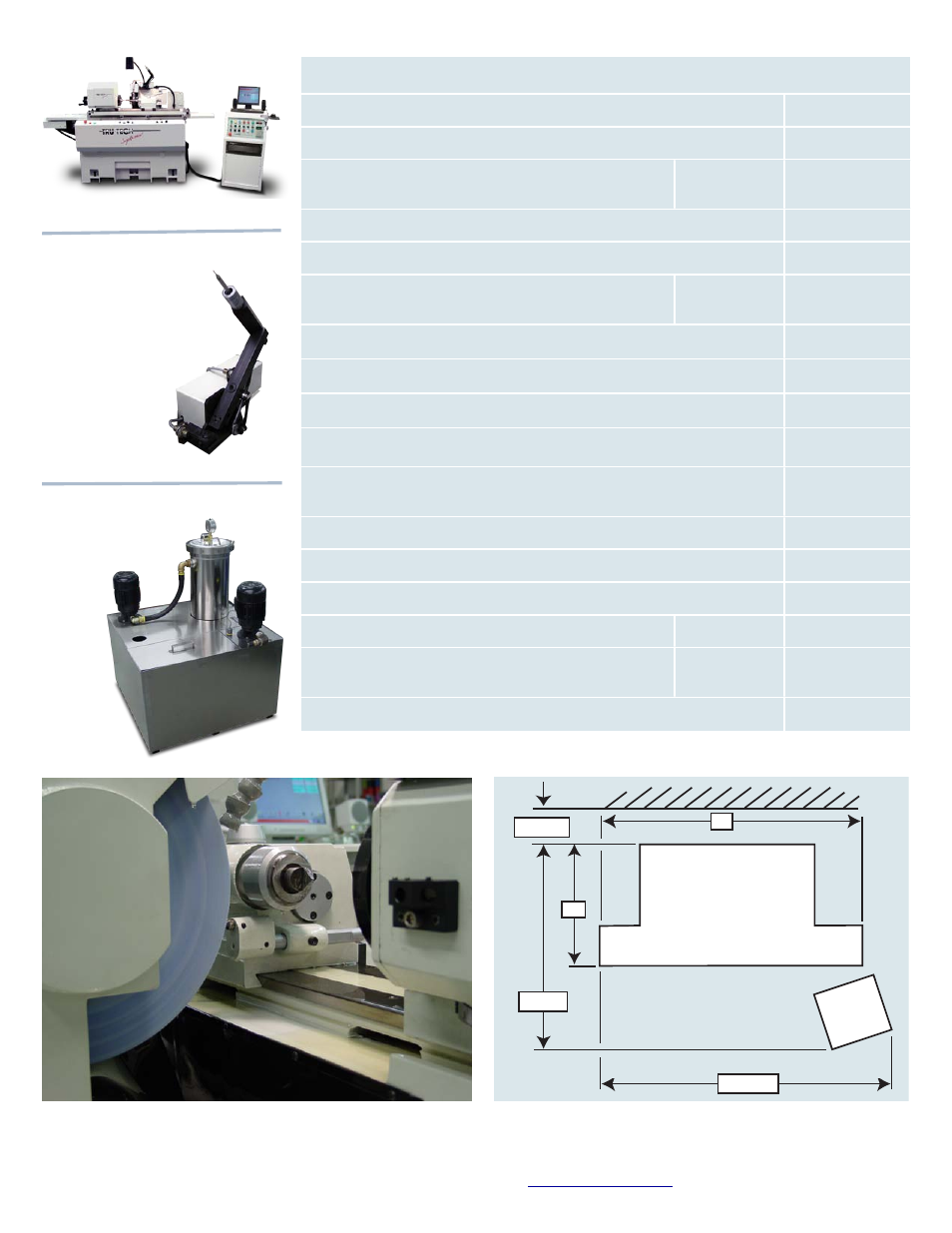

TT-820 SPECIFICATIONS
Maximum Grind Length (Distance Between Centers) 20”
Maximum Grind Diameter 8”
Maximum Travel X Axis
Y Axis
20”
8”
Standard Wheel Size 14” Max.
Wheel Speed 500-3000 RPM
Maximum Velocity Y Axis
Z Axis
50”/Min.
60”/Min.
Input Increment .000010”
Accuracy ±.00010”
Repeatability ±.000050”
Wheel Spindle Motor 5 HP Variable
Workhead Motor HP
5C Taper 1/4
50-600 RPM
Workhead Angle Adjustment ±45 Degrees
Table Angle Adjustment ±8 Degrees
ID Spindle Motor 1/2 HP
Power Requirements 30 Amps 208-230V 60 Hz
Shipping Dimensions Pallet #1
Pallet #2 40”x48”x60”
91”x90”x65”
Shipping Weight 4500 LBS.
Floor Layout
TT-820
4'
9'
FRONT
7' Min.
18" Min.
11' Min.
Co
ns
ole
Optional Overhead
Probing accurately
adjusts for variations
in length and part
orientation.
Optional 5 Micron
filtration ensures
maximum precision.
All photographs may include non-standard or optional features. For specific needs, please contact your local Tru Tech Systems distributor, or Tru Tech Systems, direct.
