SatLink 2000
VSAT Indoor Unit
www.stmi.com
STM Group, Inc. | 2 Faraday | Irvine, CA 92618, USA | T +1 949 273 6800 | FAX +1 949 273 6020
STM Norway AS | Vollsveien 21 | 1366 Lysaker, Norway | T +47 6753 5337 | FAX +47 6753 5335
All specifications and features subject to change without notice. SatLink and the STM logo are a registered trademarks of STM Group, Inc.
The DVB logo is a registered trademark of the DVB Project (www.DVB.org). SatLabs logo is a registered trademark of SatLabs (www.satlabs.org). DiSEqC is a trademark of Eutelsat.
Document #200136; Revision U - 130708 © 2013
Specifications
Throughput: Download: Up to 30 Mbps of IP packets;
Upload: Up to 4,000 packets per second
(varies with IP software features enabled)
Capacity
Traffic Classification: Multi-Field Classifiers using DSCP,
Protocol Type, IP Source Address, IP Destination Ad-
dress, TCP/UDP Source or Destination Port; or 802.1p
Tx Queues: 7 priority queues per link and discard group
QoS: Four QoS Classes for Bandwidth-on-Demand:
Voice (VoIP), Video Conferencing (ViC), Critical Data
(CD), and Best Effort (BE)
Capacity Requests: Rate-based, Volume-based and
Combined modes (plus quasi-dynamic CRA options)
IP QoS and Bandwidth-on-Demand
IP Routing and IP Stack Support
Routing: Unicast and Multicast IP
Protocols: IPv4, IPv6*, UDP, TCP, ARP, ICMP, IGMPv2,
DHCP Server, DNS Cache, Ping, Telnet, SNMPv2c
Advanced Options: TCP & HTTP Acceleration up to 10
Mbps per session, NAT, GRE VPN Tunnels, VLANs
Management Interfaces
Local: RS-232 CLI
Remote: Telnet, SNMP v2c, Web GUI
Software Upgrade: Local, TFTP or multicast via satellite
Compliance
CE: Fully compliant with R&TTE Directive
DVB-RCS2: ETSI EN 301 545-2
DVB-RCS: ETSI EN 301 790; SatLabs
DVB-S/S2: ETSI EN 300 421 / ETSI EN 302 307
International: Country specific certifications

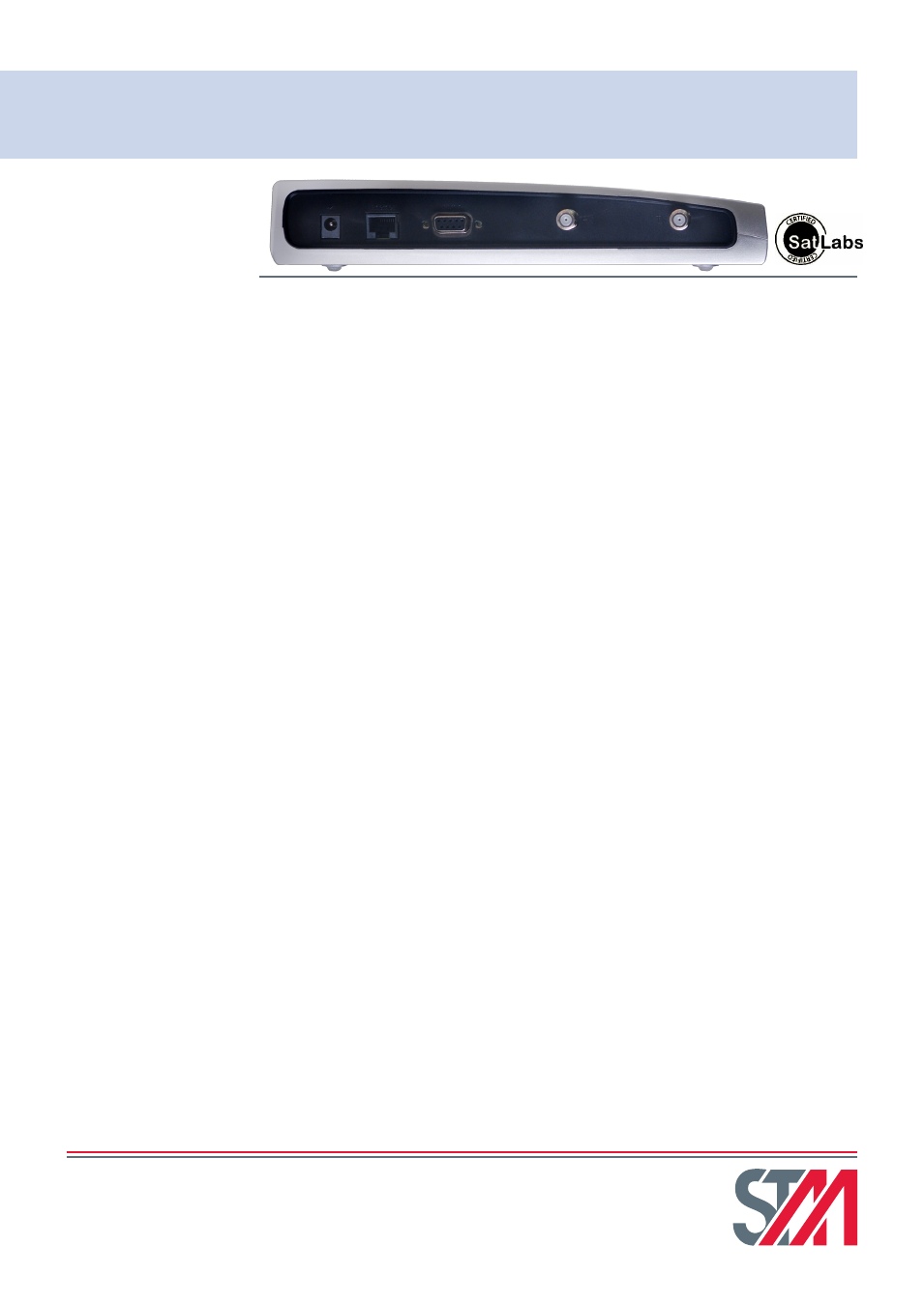

Physical Interfaces
Serial Port: RS-232, DB-9 (local management)
Ethernet: 10/100Tx Mbps, RJ-45 (user IP traffic)
Tx (BUC) Interface: F-type 75 Ohm; 24 VDC at up to 1.2A,
and 10 MHz reference under software control
 Tx Output: 950 to 1450 MHz ; - 35 dBm to 0 dBm
 BUC control: Extended DiSEqC TM as per TR 101 790 V1.2.1
Rx (LNB) Interface: F-type 75 Ohm; 13/18 VDC at up to 0.2A
 Rx Input: 950 to 2150 MHz; -65 dBm to –25 dBm
 LNB Control: 22 KHz or 13/18 VDC signaling
DC Power Input: 24 VDC (from external power supply)
Front LEDs: Power, Error, Status, Tx, Rx, Ethernet Link
Electrical, Environmental & Physical
Power Supply: 100-240 VAC, 50-60 Hz, external (incl’d)
Power Consumption: 7.5 W (IDU only); 29.5 W @ P1dB
with SatLink 4033 2W transceiver
Operating Temperature: 0 to 45 °C
Storage Temperature: -20 to 65 °C
Humidity: 20% to 90% non-condensing
Size: 23.5 x 16 x 4 cm
Weight: 430 grams
* anticipated for later SW release
TDM Receive (DVB-S2)
Symbol Rates: 1 to 45 Msps
MODCODs: (LDPC + BCH)
 QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
FEC Frames: Normal (64 Kbit) and Short (16 Kbit)
Roll-off Factor: 20%, 25%, or 35%
Modes: ACM, VCM, CCM
IP Encapsulation: GSE or MPE/MPEG-TS
Compression & Encryption
RTP/UDP/IP headers: removes 38 bytes
UDP/IP headers: removes 14 bytes
MPE header (if used): removes 9 bytes on Tx
(7 bytes on Rx)
TRANSEC: AES-256 encryption on Layer 2
TDMA Transmit & Receive; SCPC Option
Symbol Rates (RTN):
125 ksps to 8 Msps (RCS2)
125 ksps to 4 Msps (RCS)
MODCODs: (Turbo Codes FEC 8-state and 16-state)
 QPSK: 1/2, 2/3, 3/4, 4/5, 6/7 (DVB-RCS)
 QPSK: 1/3, 1/2, 2/3, 3/4, 5/6 (DVB-RCS2)
 8PSK: 2/3, 3/4, 6/7 (DVB-RCS extension)
 8PSK: 2/3, 3/4, 5/6 (DVB-RCS2)
 16QAM: 3/4, 5/6 (DVB-RCS2)
Adaptivity: ACM with ACS (RCS2), ACS (RCS)
(ACS = Adaptive Carrier Selection)
IP Encapsulation: RLE (RCS2) or MPE/MPEG-TS (RCS)
SCPC Burst Mode: Dedicated carrier for Tx with full Constant
Rate Access (CRA), no capacity requests required
