Omnimount ULPC-L Sales Sheet - Manual (Page 2)

inches (mm)
27.4
(696)
16.1
(409)
14.6
(371)
.8
(19)
R .2
(5)
.8
(20)
24.7
(626)
26.2
(666)
27.4
(696)
23.0
(585)
26.3
(668)
4.1
(105)
3.4
(85)
25.5
(648)
16.3
(415)

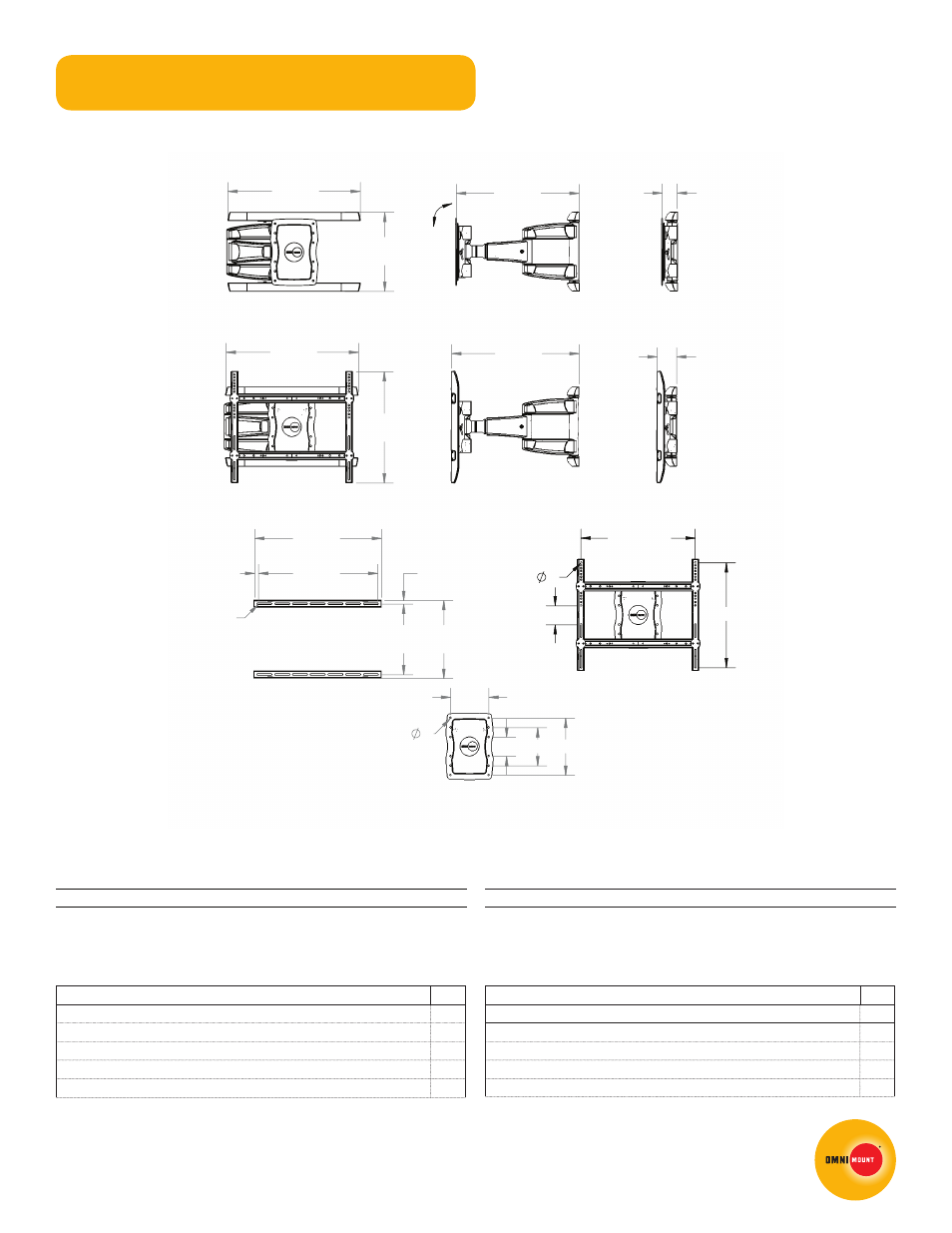

FRONT VIEW MOUNTING PROFILE MAXIMUM EXTENSION
FRONT VIEW
WITH ADAPTER
MOUNTING PROFILE
WITH ADAPTER
MAXIMUM EXTENSION
WITH ADAPTER
WALL MOUNTING
550
300 - 900
8
100
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
WITH ADAPTER
9
200
100 200 300
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
+15° to -5°
ULPC-L
technical data sheet
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 28.5 x 34.3 x 8.1 (725x870x205) 58.4 (26.5) NA
MC NA NA NA
Packaging UPC MC UPC
Americas 728901023750 728901717208
International 728901023750 728901717208
Box Contents Qty
Monitor plate 1
Universal adapter 1
Wall rail 2
Wall rail cover 2
Cantilever arm 1
Box Contents Qty
Cable cover 3
Complete mount installation hardware kit 1
Complete panel attachment hardware kit 1
Installation template 1
Instruction manual 1
