Omnimount NC100C Sales Sheet - Manual (Page 2)

inches (mm)

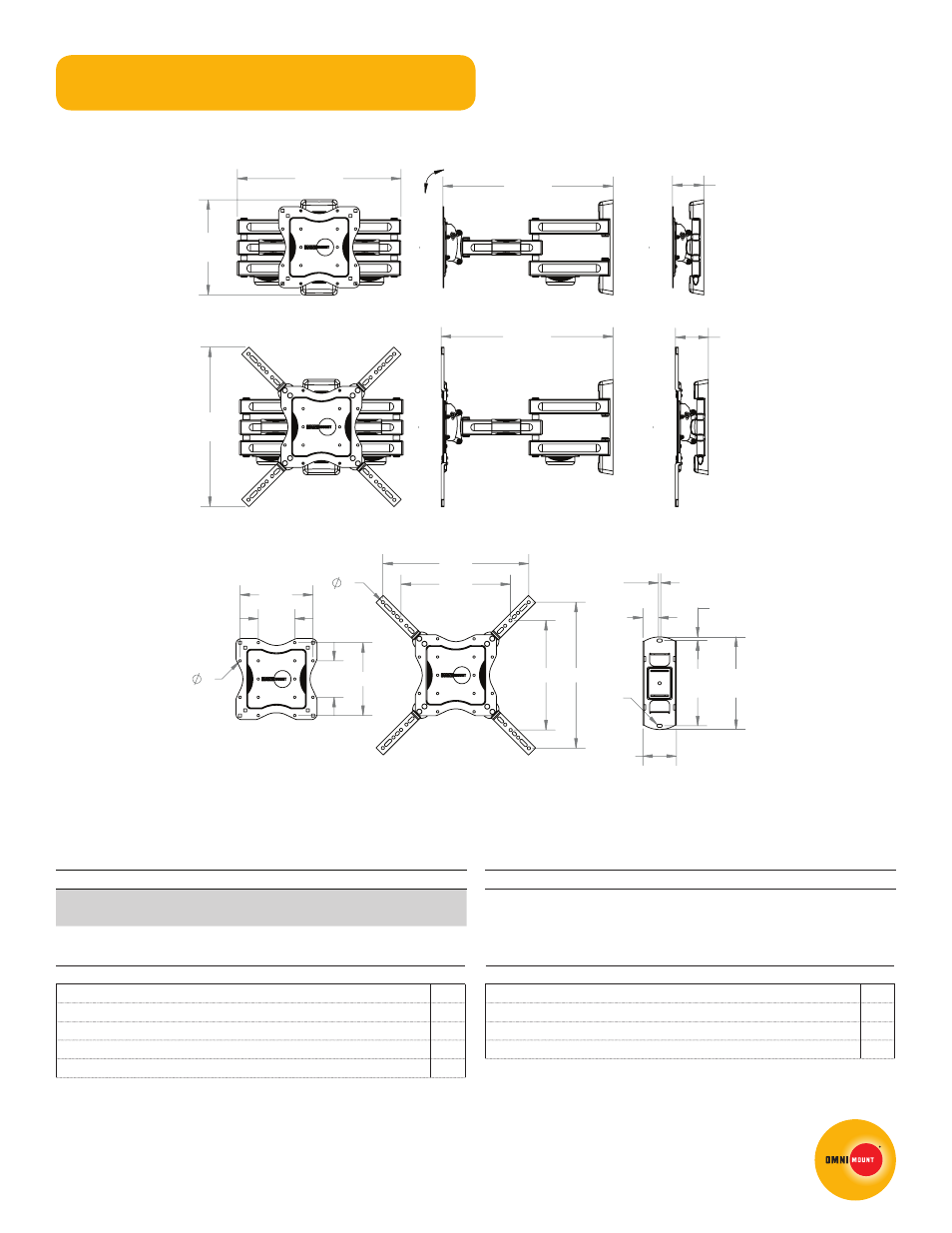

FRONT VIEW
WITH ADAPTERS
MAXIMUM EXTENSION
WITH ADAPTERS
MOUNTING PROFILE
WITH ADAPTERS
17.7
(449)
10.3
(261)
3.6
(90)
R .2
(4)
3.6
(92)
1.7
(43)
.2
(6)
9.2
(234)
10
(254)
.4
(10)
17.2
(437)
18.6
(471)
3.4
(86)
18.4
(467)
FRONT VIEW MAXIMUM EXTENSION MOUNTING PROFILE
300
400
300 400
9
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
WITH ADAPTERS
100
200
200 100 7
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
WALL MOUNTING
+15° to -5°
NC100C
technical data sheet
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 12.4 x 20.5 x 4.1 (316x520x105) 13.2 (6) NA
MC 12.9 x 21.5 x 8.7 (328x545x220) 27.6 (12.5) 2
Packaging UPC MC UPC
Americas 728901023132 728901716584
International 728901023132 728901716584
Box Contents Qty
Spider 44 adapter 4
Complete mount installation hardware kit 1
Complete panel attachment hardware kit 1
Instruction manual 1
Box Contents Qty
Full motion wall plate 1
Full motion arm 1
Monitor plate 1
Cable management channel 4
Wall plate cover 2
