Omnimount OC100T Sales Sheet - Manual (Page 2)

inches (mm)
OC100T
technical data sheet
1.7
(45)
3.3
(85)
12.6
(320)
2X 13.8
(350)
1.2
(30)
1.4
(35)
20.8
(529)

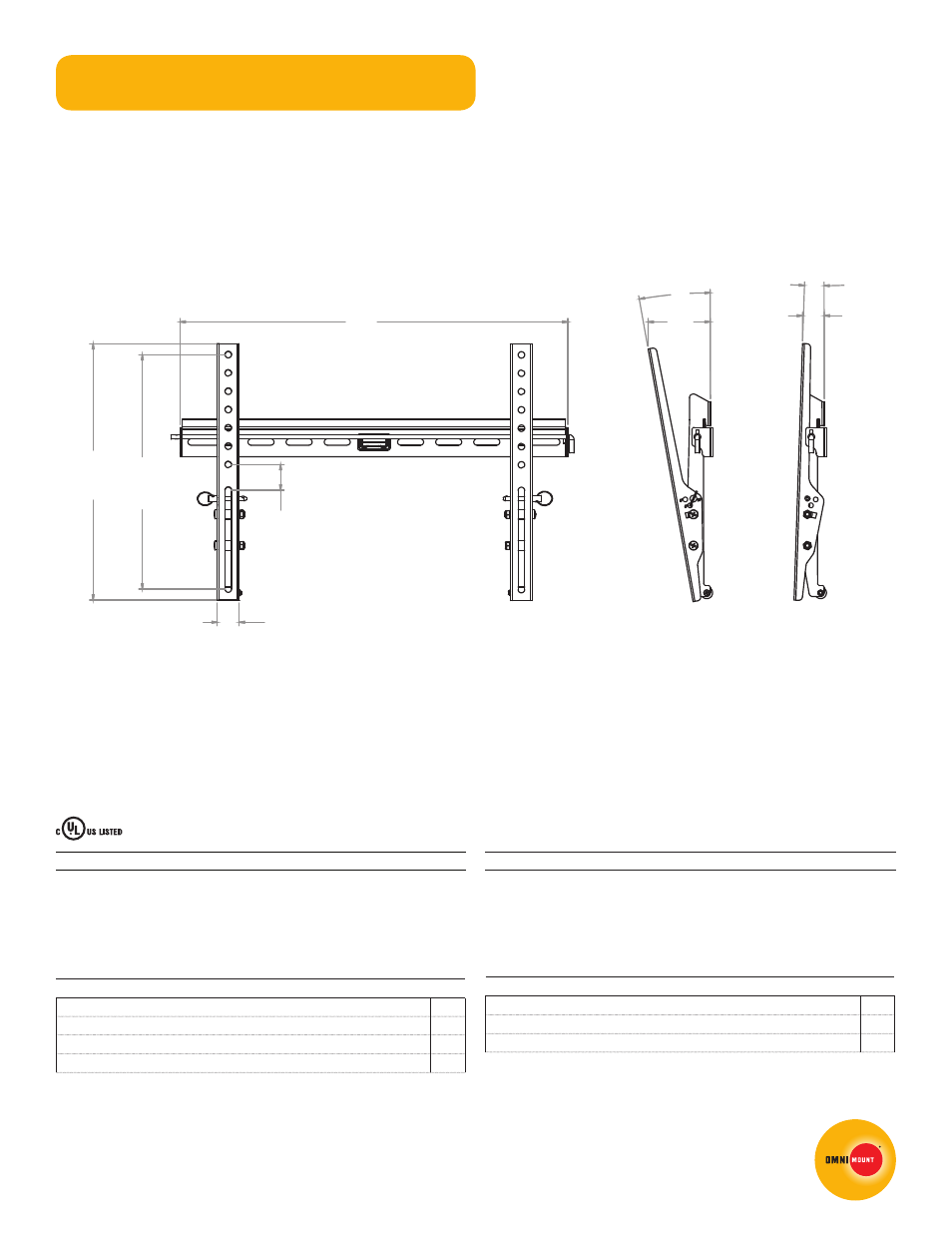

FRONT VIEW
SIDE VIEW
MOUNTING PROFILE
10°
-2°
Box Contents Qty
Wall plate 1
Vertical rail 2
Locking bar 1
Bubble level 1
Dimensions WxDxH inches (mm) Wt lbs (kg) Qty
Box 22.3 x 3.8 x 2.3 (567x97x59) 1.2 (0.6) NA
MC 25 x 8.7 x 6.2 (636x220x158) 4.9 (2.2) 4
Packaging UPC MC UPC
Americas 698833037760 10698833037767
International NA NA
800.MOUNT.IT (800.668.6848)
04032013
Box Contents Qty
Tilt pin 2
Complete hardware kit 1
Instruction manual 1
