Omnimount NC80-F Sales Sheet - Manual (Page 2)

WALL MOUNTING
22.7
(576)
9.3
(235)
7.0
(177)
R.17
(4)
1.2
(31)
1.4
(36)
17.6
(448)
20.5
(520)
1.6
(40)
10.5
(268)
14.2
(360)

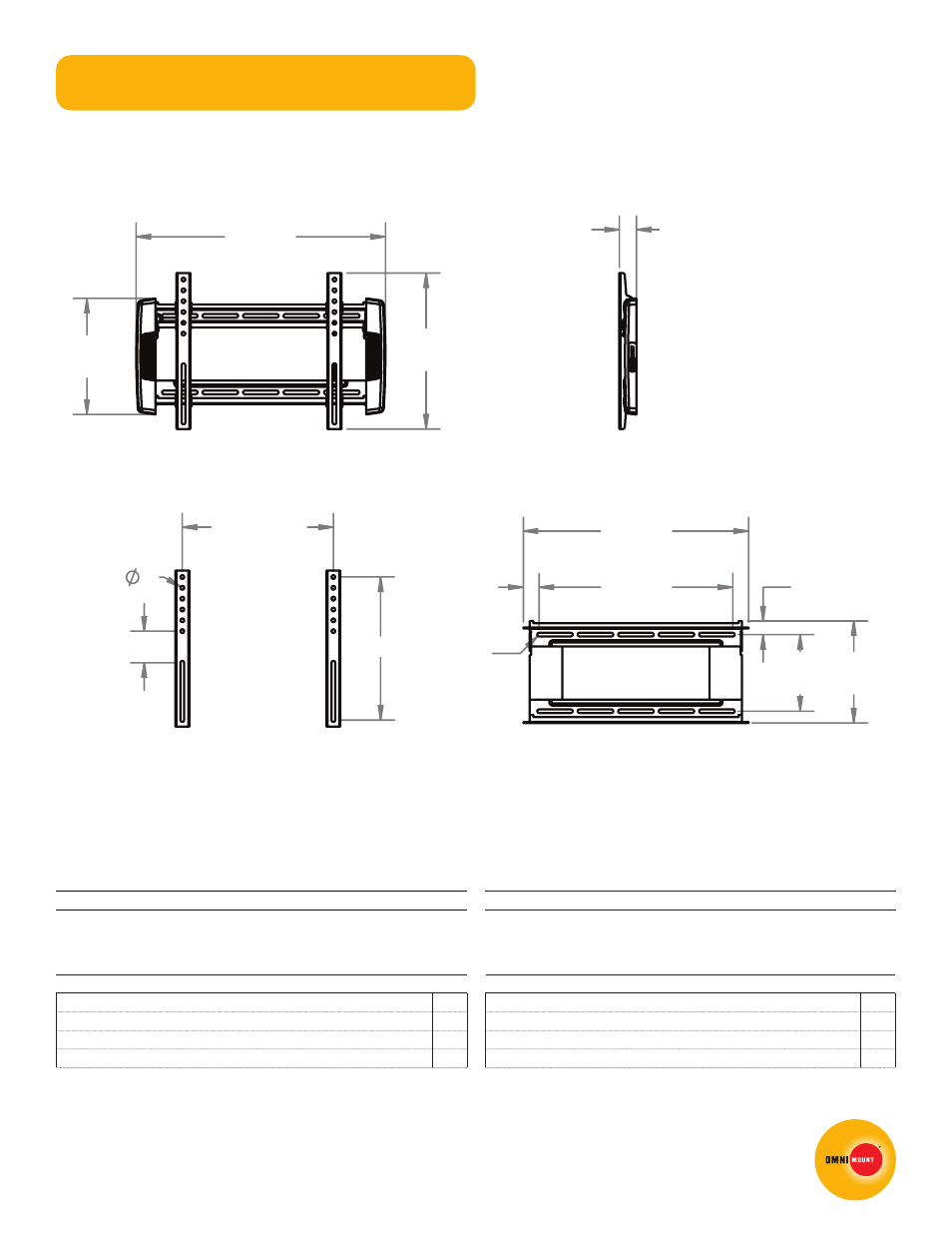

FRONT VIEW MOUNTING PROFILE
200 - 400
73 330
9
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
NC80F
technical data sheet
Packaging UPC MC UPC
Americas 728901024412 728901717864
International 728901024412 728901717864
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 11.2 x 24 x 4.1 (280x610x105) 8.4 (3.8) N/A
MC 11.6 x 24.4 x 8.9 (295x620x225) 17.4 (7.9) 2
Box Contents Qty
Wall template 1
Complete mount installation hardware kit 1
Complete panel attachment hardware kit 1
Instruction manual 1
Box Contents Qty
Wall plate 1
Vertical rail 2
Security bar 2
Cover 2
