Place cardboard template on top of this
paper template, then attach to wall with tacks.
Any Questions?
This template is designed to give you a brief
overview of the ntire installation process.
For more detailed information please refer
to instruction manual. If you need further
assistance, please contact OmniMou nt
Customer Service toll-free at 800.MOUNT.IT
( 800 .668.6 84 8) Monday through F riday
between the hours of 8 a.m. and 5 p.m. (MS T).
e

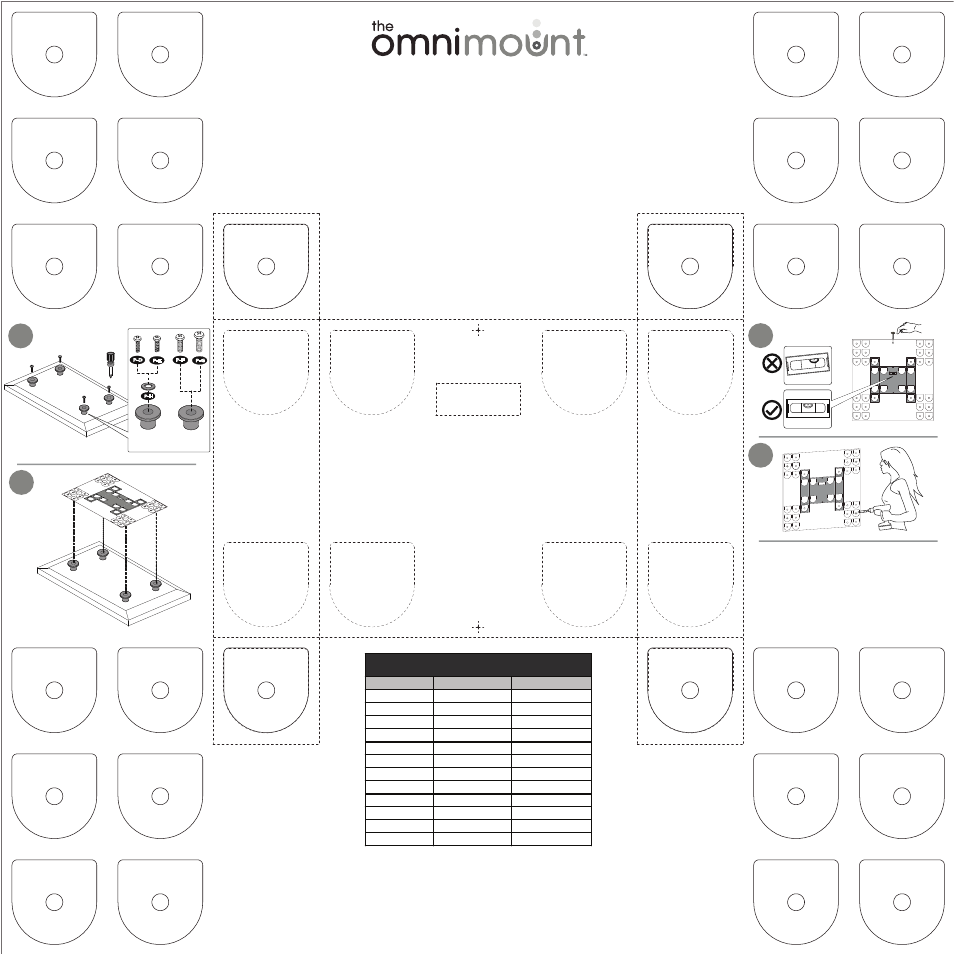

Optional Installation Template
/ Modelo de instalación / Gabarit d'installation
Montageschablone / Installatiesjabloon Modello per l’installazione / Szablon instalacji / Šablona instalace / Szerelési
sablon / Εγκατάσταση βάσης / Escantilhão de instalação Installation skabelon / Asennusmalli / Monteringsmall /
Şablon pentru instalare / Шаблон за инсталация / Paigaldustrafarett / Uzstādīšanas veidne Montavimo pavyzdys /
Predloga za pritrditev / Šablóna inštalácie / Установочный шаблон / Montaj Şablonu / Installasjonsmal
ﻥﻡﻭﺫﺝ ﺍﻝﺕﺭﻙﻱﺏ / 安装面板 / 取り付けテンプレート
Before you begin
• Please refer to the manual for complete installation
instructions and details
• Make sure you are installing the flat panel at the
desired viewing level
• Measure all cables prior to full installation to ensure
sufficient cable length
• Use level to ensure proper alignment
• Assistance may be required to lift flat panel
Use this template for flat panel TVs with
VESA patterns greater than 200x200.
OmniMount Systems, Inc.
8201 South 48th Street
Phoenix, AZ 85044-5355
1-800-MOUNT-IT (1-800-668-6848)
www.omnimount.com
All trademarks are the property of their respective companies.
OmniMount is a registered trademark of OmniMount Systems, Inc. © 2006
1-1
1-2
1-3
1-4
DO NOT OVERTIGHTEN
NO APRIETE DEMASIADO
40 lbs
400 x 400
Drywall
40 lbs
300 x 300
Drywall
40 lbs
200 x 200
Drywall
40 lbs
100 x 100
Drywall
80 lbs
400 x 400
Stud/Drywall
80 lbs
300 x 300
Stud/Drywall
80 lbs
200 x 200
Stud/Drywall
40 lbs
100 x 100
Stud/Drywall
80 lbs
400 x 400
Concrete
80 lbs
300 x 300
Concrete
80 lbs
200 x 200
Concrete
40 lbs
100 x 100
Concrete
Weight Load
VESA Pattern
Surface
VESA Pattern & Maximum Load
400 x 400
Drywall
300 x 300
Drywall
200 x 200
Drywall
100 x 100
Drywall
400 x 400
Stud/Drywall
300 x 300
Stud/Drywall
200 x 200
Stud/Drywall
100 x 100
Stud/Drywall
400 x 400
Concrete
300 x 300
Concrete
200 x 200
Concrete
100 x 100
Concrete
Weight Load
VESA Pattern
Surface
VESA Pattern & Maximum Load
100
100
100
100
200
200
200
200
400
400
400
400
300
300
300
300
