inches (mm)

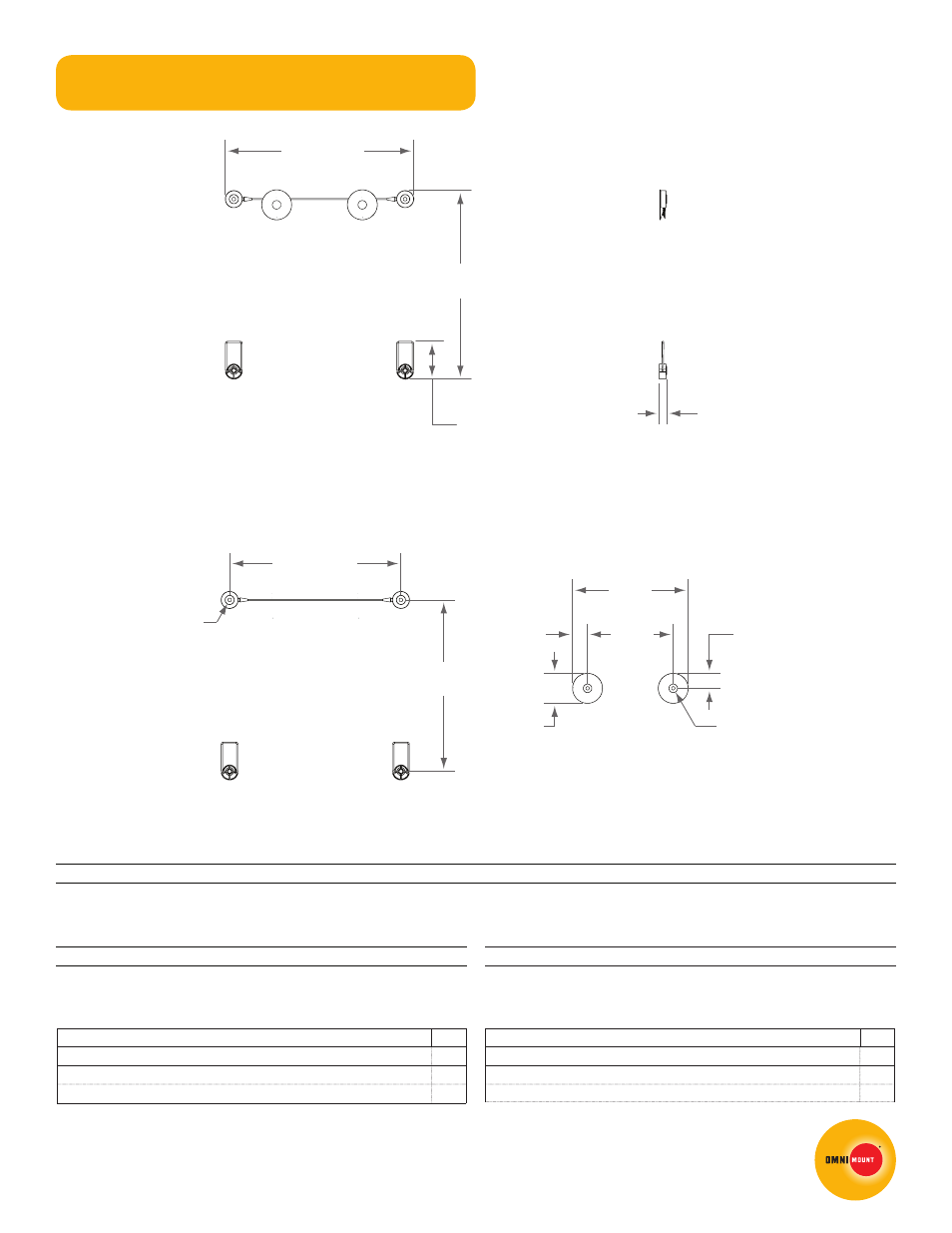

FRONT VIEW
MOUNTING PROFILE
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
WALL MOUNTING
17.32 - 25.20
(440 - 640)
9.45 - 25.20
(240 - 640)
10.63
(270)
7.87
(200)
400 OR 600
200, 300,
400 OR 600
Ш 9
Ш 2.76
(70)
Ш .31
(8)
3.47
(88)
.68
(17)
1.38
(35)
1.38
(35)
LEDW120
technical data sheet
Architects Specifications
The TV wall mount shall be an Omnimount LEDW120 and shall be located where indicated on the plans. It shall be constructed of Aluminum
along with Aircraft Grade Components. Assembly and installation shall be done according to instructions provided by the manufacturer.
Packaging UPC MC UPC
Americas 728901026638 728901720086
International 728901026638 728901720086
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 10.2 x 12.8 x 2 (258x325x50) 3 (1.4) NA
MC 8.4 13.4 x 10.6 (212x339x270) 12.6 (5.7) 4
Box Contents Qty
400mm wide cable 1
600 mm wide cable 1
Suspension ring with retention clip 2
Box Contents Qty
Wall spacer with kickstand 2
Universal hardware kit 1
Instruction manual 1
800.MOUNT.IT (800.668.6848)
08122011
