P8

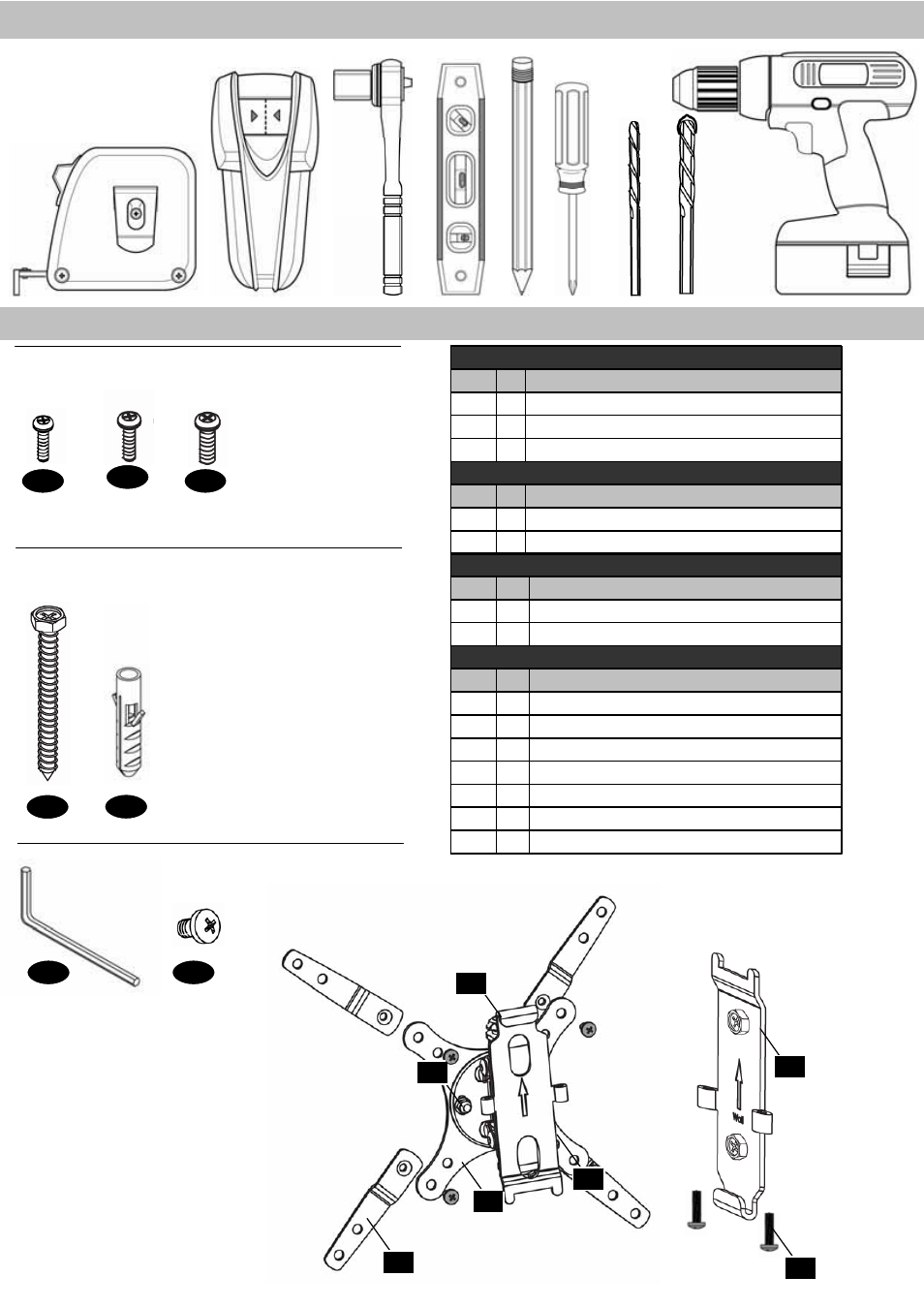

SCREWS/HARDWARE FOR PRODUCT
(OM10325vB)
SCREWS/HARDWARE FOR WALL
(WALL KIT 12-2vB)
W-A
X 2
W-B
X 2
P-A
X 1 X 4
P-B
M-C M-A
M5
X 4
M6
X 4
M4
X 4
M-B
HARDWARE
TOOLS NEEDED
3
7
1
2
Description Qty Part #
V200A Adapters 4 7
Locking Screw 2 6
Leveling Nuts 2 5
Tilt Screw 2 4
Tension Swivel Knob 2 3
Monitor Adapter 1 2
Wall Plate 1 1
Contents
Adapter Screws 4 P-B
Allen Wrench 3mm 1 P-A
Description Qty Part #
OM10325vB
4
5
6
1/8”
or
5/16”
SCREWS / HARDWARE FOR FLAT PANEL
(MONITOR KIT M-V-vD)
Wall Anchor 2 W-B
Philips Wood Screws 2 W-A
Description Qty Part #
Screws / Hardware for Wall Mounting ( Wall Kit 12-2vB )
Philips Screws M6 x 12mm 4 M-C
Philips Screws M5 x 12mm 4 M-B
Philips Screws M4 x 12mm 4 M-A
Description Qty Part #
Screws / Hardware for Flat Panel ( Monitor Kit M-V-vD )
