Omnimount OC40FMX Sales Sheet - Manual (Page 2)

inches (mm)
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
(200)
(7)
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
WITH ADAPTERS
(7)
(100)
(100) (75)
(75)
WALL MOUNTING
MAXIMUM EXTENSION
8.2
(208)
5.1
(130)
6.0
(152)
Ø .3
(7)
1.0
(26)
2.0
(51)
13.7
(349)
3.0
(76)
8.1
(207)

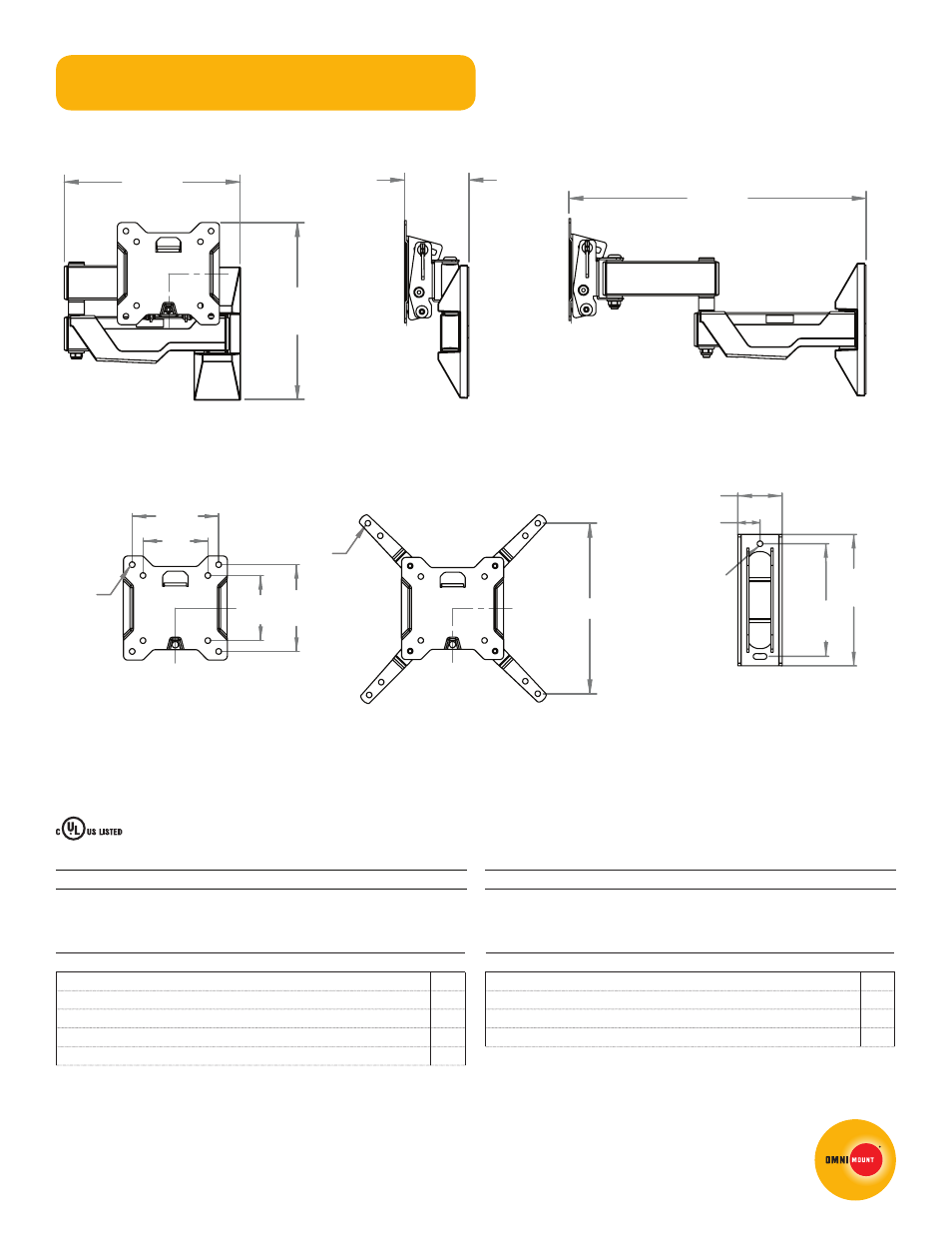

FRONT VIEW MOUNTING PROFILE
OC40FMX
technical data sheet
Packaging UPC MC UPC
Americas 698833028010 10698833028017
International 698833028010 10698833028017
Box Contents Qty
Wall plate 1
Wall plate cover 1
Arm assembly (with cable management) 1
Monitor plate 1
Tilt tension handle 1
800.MOUNT.IT (800.668.6848)
04262013
Box Contents Qty
Complete TV hardware kit 1
Complete wall hardware kit 1
Complete hardware kit 1
Instruction Manual 1
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 9.9 x 9.7 x 3.8 (251x246x96) 4.6 (2.1) NA
MC 15.8 x 10.8 x 9.9 (400x273x252) 18.5 (8.4) 4
