P10

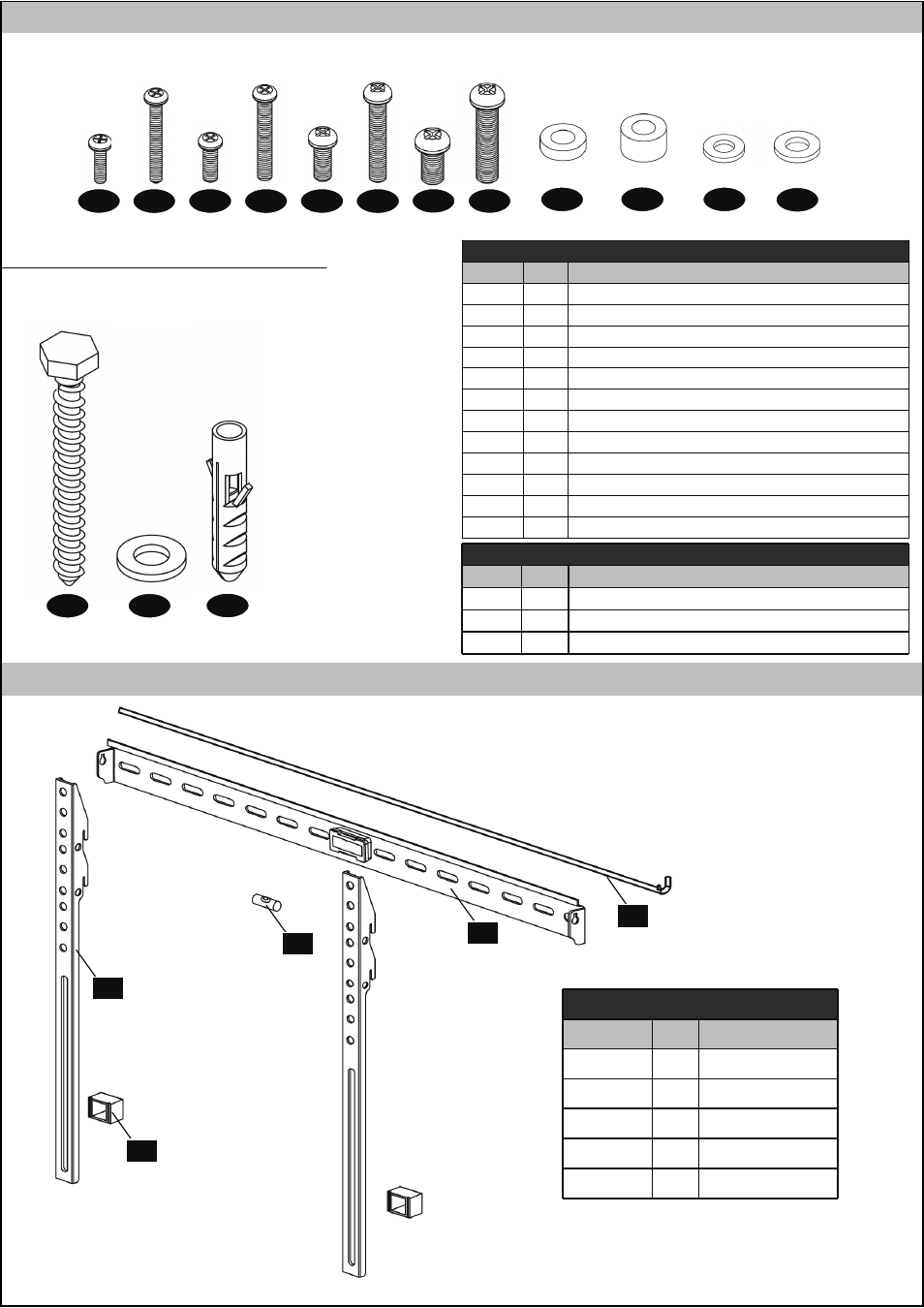

CONTENTS
HARDWARE
2
1
4
Bubble Level 1 5
Rubber Bumpers 2 4
Locking Bar 1 3
Vertical Rails 2 2
Wall Plate 1 1
Description Qty Part #
Contents
5
3
M-D M-B M-F M-I M-C M-A M-E M-G M-J M-H
SCREWS/HARDWARE FOR FLAT PANEL
(MONITOR KIT L-U-vD)
X 4 X4 X4 X4 X4 X4 X4 X4 X4 X4
Spacers Washers
X4
Spacers
X 4
Washers
M-K M-L
SCREW/HARDWARE PACK FOR WALL (Wall Kit 516-2vC)
Part # Qty Description
W-A 2 Lag Bolts (8mm x 65mm)
W-B 2 Steel Washer (18mm x 8.5mm x 1.5mm)
W-C 2 Wall Anchor (10mm OD x 8mm ID)
SCREWS / HARDWARE FOR FLAT PANEL (Monitor Kit L-U-vD)
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
W-B W-A
X 2 X 2
W-C
X 2
SCREWS/HARDWARE FOR WALL
(WALL KIT 516-2vB)
