EN-24

Valor™ 7000

Series

4.11 Additional Features

To use this feature, remove AC power from the scale and remove the protective cover for the

weigh below opening. Install a suitable hook into the access hole at the bottom of the scale as

shown (refer to section 6.4 for optional hook). Do not over tighten, tighten finger tight. Mount the

scale onto an appropriate assembly that allows free working space below the hook. See figure

4-1.
Note:

Never allow the scale to rest directly on the hook.

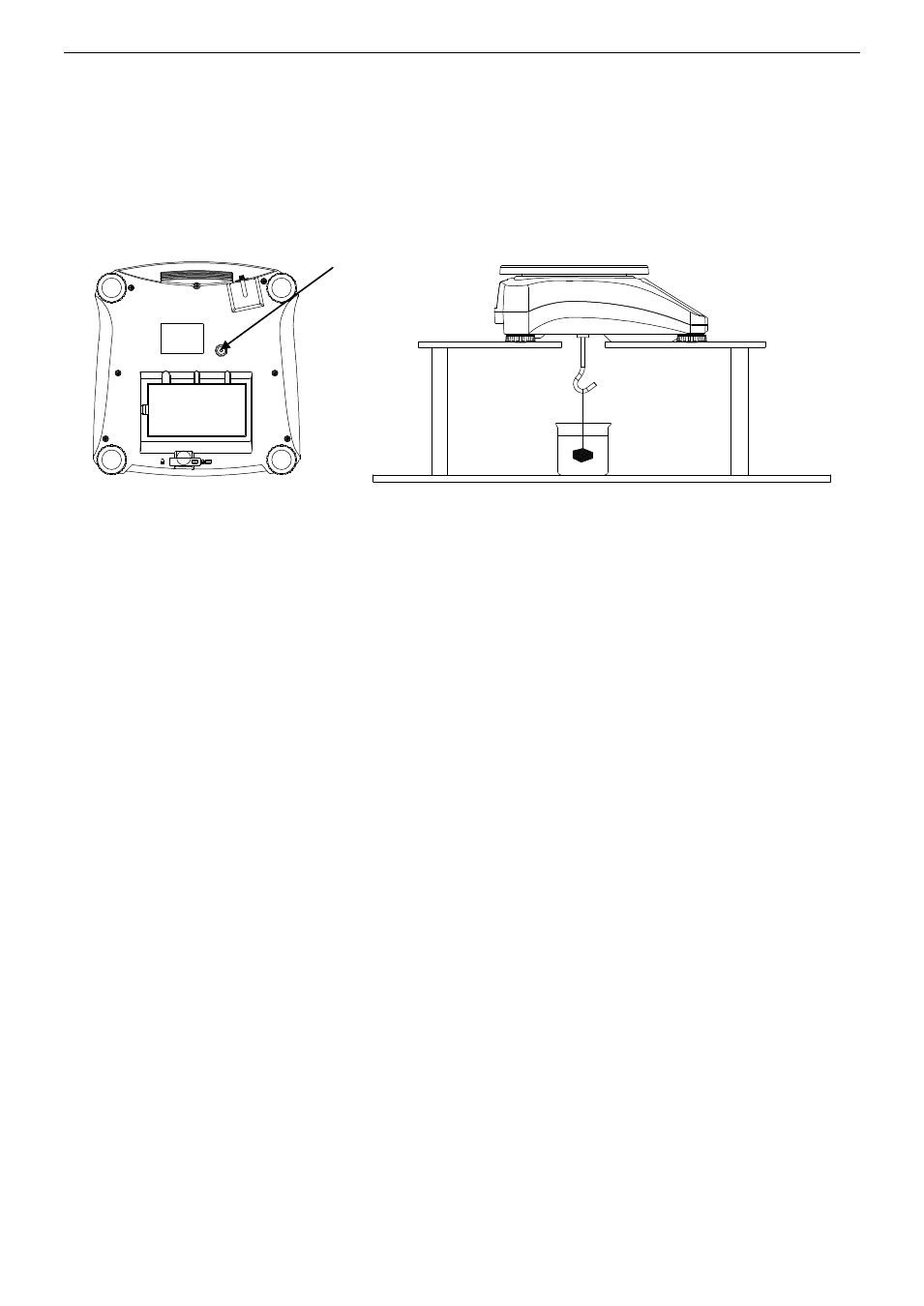

Figure 4-1. Setup for the Weigh Below Hook

Weigh Below

Hook Access
