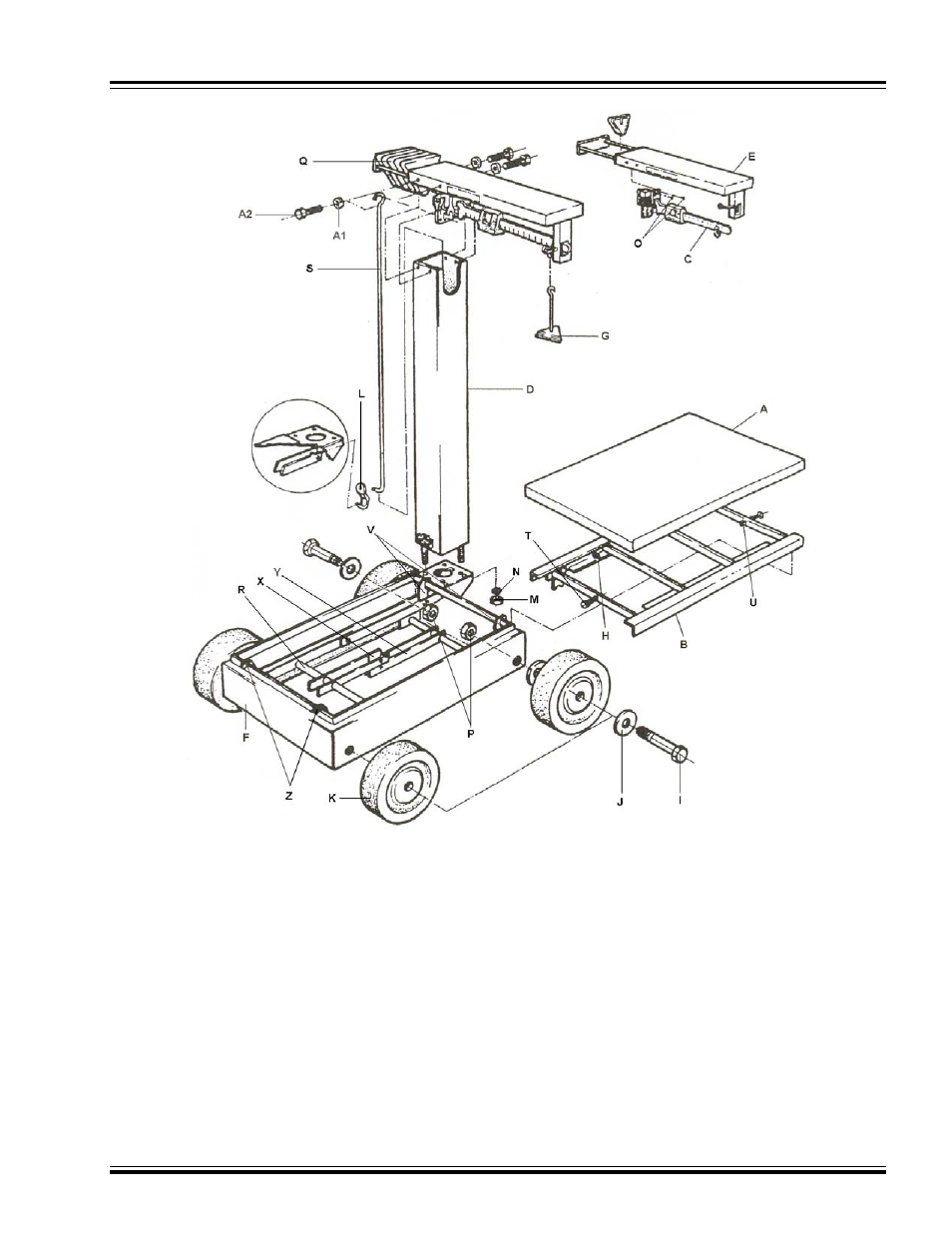

Figure 2
A - Scale Platform
B - Spider Assembly
C - Beam Assembly
D - Column
E - Beam Shelf
F - Scale Base
G - Load Box Assembly
H - Level Bubble
I - Screw, 1/2-13 x 3 1/4
J - Flat Washer
K - Wheel
L - Hook’s Nose
M - Nut, 3/8-16
N - Lockwasher, 3/8
O - Screw # 10-32 x 3/8
P - Nut, 1/2-13 Q - Counterpoiser´s
R - Lever Assy - Long
S - Rod, Steelyard
T - Screw 1/4 - 20 x 1 1/4"
U - Nut, 1/4 - 20
V - Long Set the Hook
X - Loop Assy - Center
Y - Lever Assy - Short
Z - Short Hook
A1 - Washer
A2 - Screw
