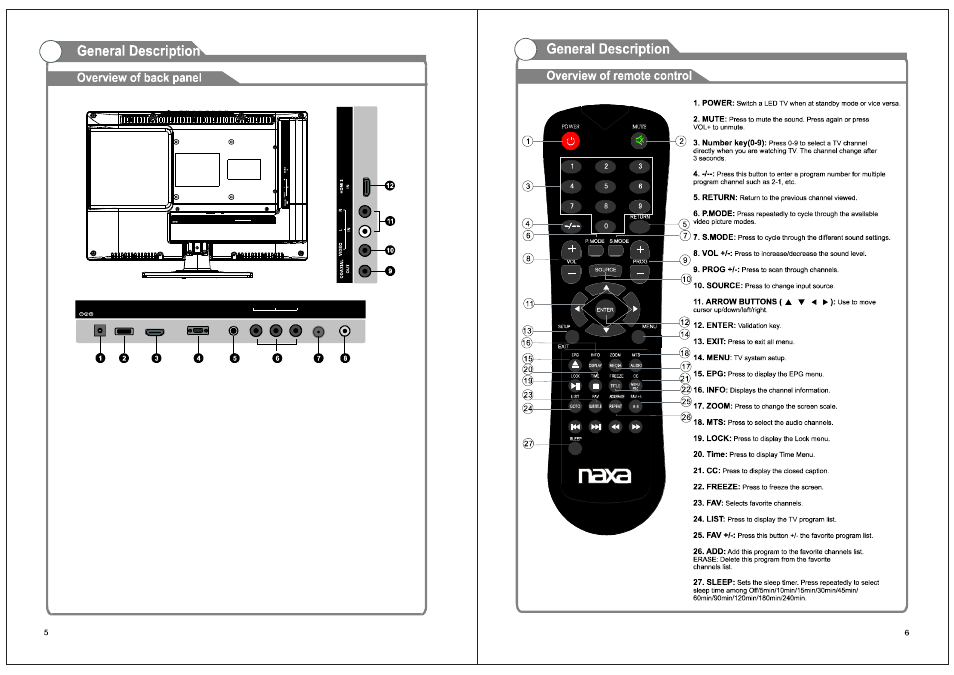

1. Power input
2. USB (TV)
3. HDMI1
Connect to the HDMI jack of a device
with a HDMI output.
4. VGA/PC IN
Connect to the video output jack on
your PC.
5. PC AUDIO
Audio input for PC.
6. COMPONENT (YPbPr)
Connect Component Video.
7. ANTENNA INPU T
Connect to an antenna or cable
NTSC & ATSC.
8. EARPHONE
Co nnect a set o f phon e for p rivate
list ening.
9. COAXIAL
Co nnect to a Di gital A udio d evice.
10. COMPOSITE VID EO
Vid eo input for extern al dev ices,
such as a camc order o r VCR .
11. COMPONENT AU DIO
Au dio inputs for exter nal devices.
12. HDMI2
Co nnect to the HDMI jack of a device
wit h a HDMI output.
U SB H DMI 1 IN VGA IN PC A UD IO IN RF IN OUT EA RPH ONE Y IN Pr Pb POWER
INPU T
D C 1 2-2 4V
RF
IN OUT
EARPHONE Pr
USB
HDMI 1
I N
VGA
IN
PC
AUDIO
IN I N
POWER
INPUT
DC 12-24V
Y Pb
