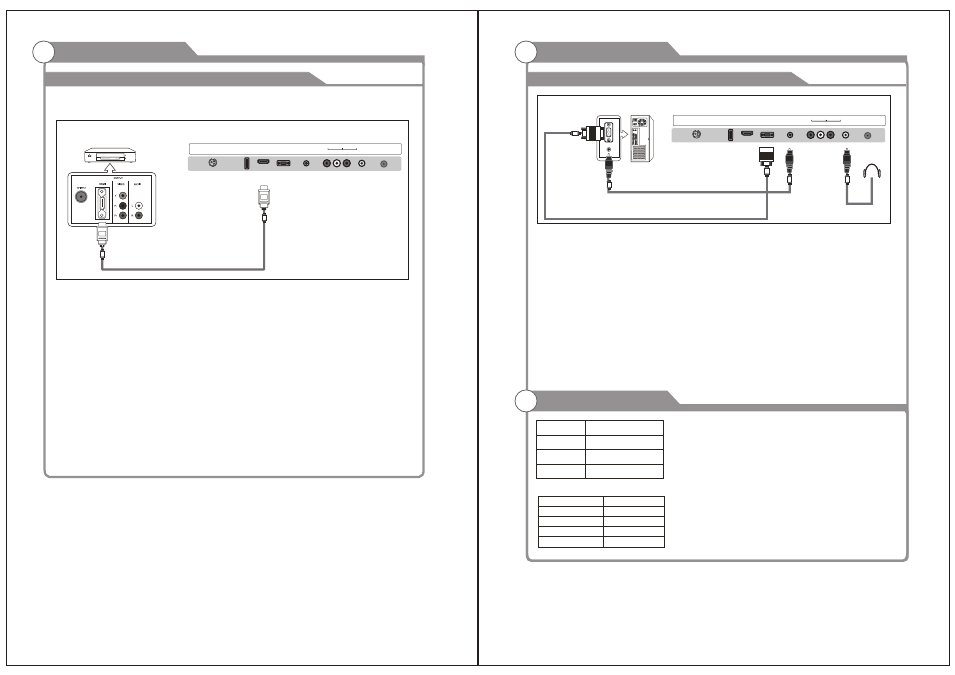

External Connection
Connecting DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a HDMI Output connector on the external
device.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables
the transmission of digital audio and video signals using a single cable without
compression.
Multimedia interface is a more accurate name for it especially because it allows multiple
channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the
HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi-channel digital audio.
Each DVD player/STB has a different back panel configuration.
We recommend the use of cables with a Ferrite Core.
1. Connect an HDMI Cable between the HDMI connector on the TV and the
HDMI connector on the DVD player/Set-Top Box.
TV Rear Panel
HDMI Cable (Not supplied)
DVD Player/Set-Top Box
Connecting PC
Each PC has a different back panel configuration.
The HDMI jacks do not support PC connection.
We recommend the use of cables with a Ferrite Core.
1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output
connector on your computer.
TV Rear Panel
D-Sub Cable (Not supplied)
PC
External Connection
2.Plug PHONE out connector into PHONE out jack on the TV the TV speaker will
be muted.
Phone Out
PC Audio Cable (Not supplied)
3. Connect the PC audio input jackc on the TV
Input Mode
Air
Cable
8VSB
Free 64/256QAM
CVBS NTSC 3.58
Supporting signals
VGA/PC HDMI
640x480/60Hz
800x600/60Hz
1024x768/60Hz 480p/60Hz
720p/60Hz
1080i/60Hz
1360x768/60Hz 1080p/60Hz
HDMI
IN
VGA
IN
RF
IN
R L VIDEO
IN
PC AUDIO IN
EARPHONE
OUT
USB IN
DC 12V
IN
HDMI
IN
VGA
IN
RF
IN
R L VIDEO
IN
PC AUDIO IN
EARPHONE
OUT
USB IN
DC 12V
IN
