Manhattan 460835 Long Range CCD Barcode Scanner - Programming Menu User Manual
Page 8
6

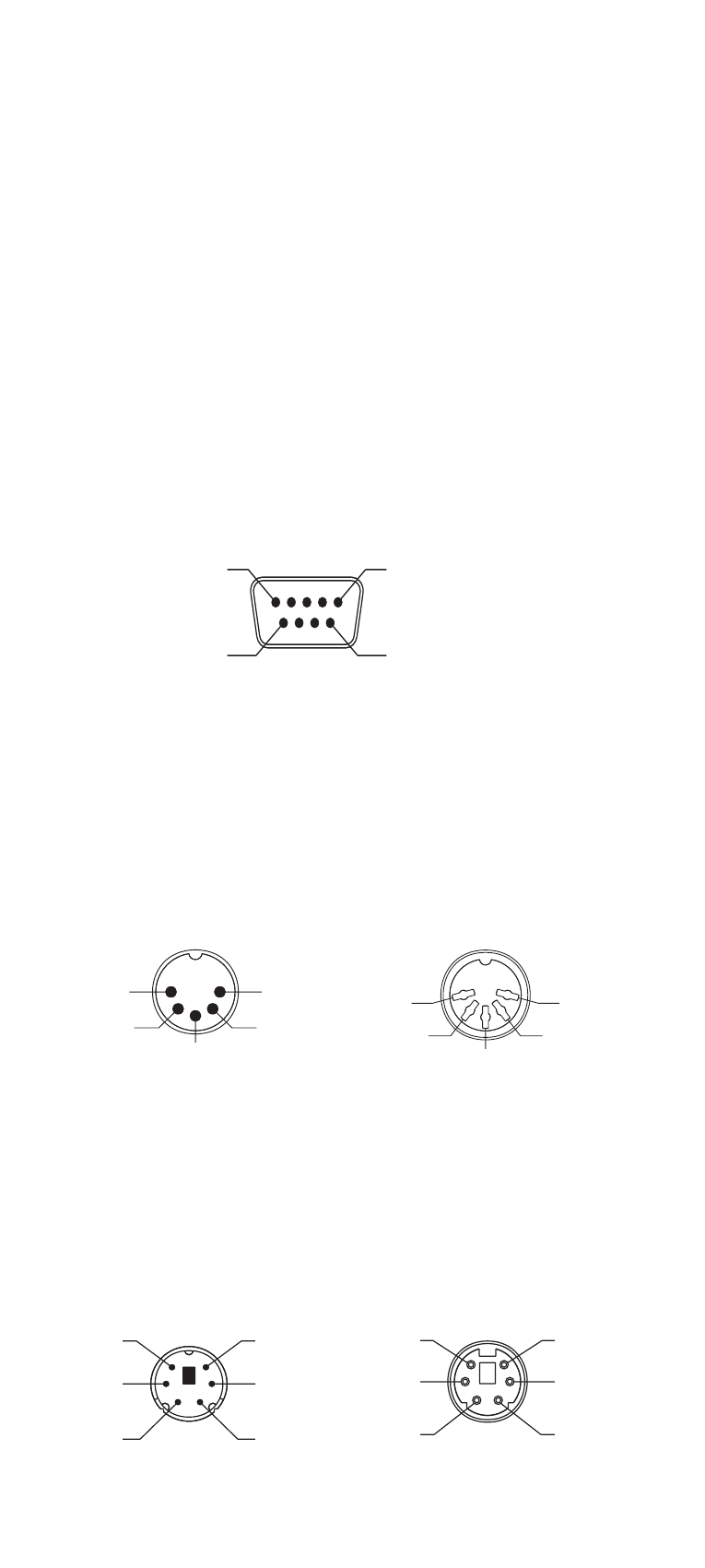

1.5 Pin Assignment
A> Input Port for Mini Decoder
DB 9 Male
Pin No.
Wand /
CCD /
Slot Reader
Laser Scanner
1
N.C.
S.O.S.
2
DATA
DATA
3
N.C.
N.C.
4
N.C.
N.C.
5
N.C.
TRIGGER
6
N.C.
P. E.
7
GND
GND
8
SHIELD
SHIELD
9
+5V
+5V
B>
Output Port
1.
PC Keyboard Output
DIN 5 MALE
DIN 5 FEMALE
Pin No.
Function
Pin No. Function
1
HOST CLK
1
KB CLK
2
HOST DATA
2
KB DATA
4
GND
4
GND
5
Vcc(+5V)
5
Vcc(+5V)
MiniDIN 6 MALE
MiniDIN 6 FEMALE
Pin No.
Function
Pin No. Function
1
HOST DATA
1
KB DATA
3
GND
3
GND
4
Vcc
4
Vcc
5
HOST CLK
5
KB CLK
4
5
3
2
1
5
4
1
2
3
3
1
5
4
2
6
3
1
5
4
2
6
1
6
9
5
