Land of Nod Flat Top 60 Inch Bookcase - Manual (Page 2)

1

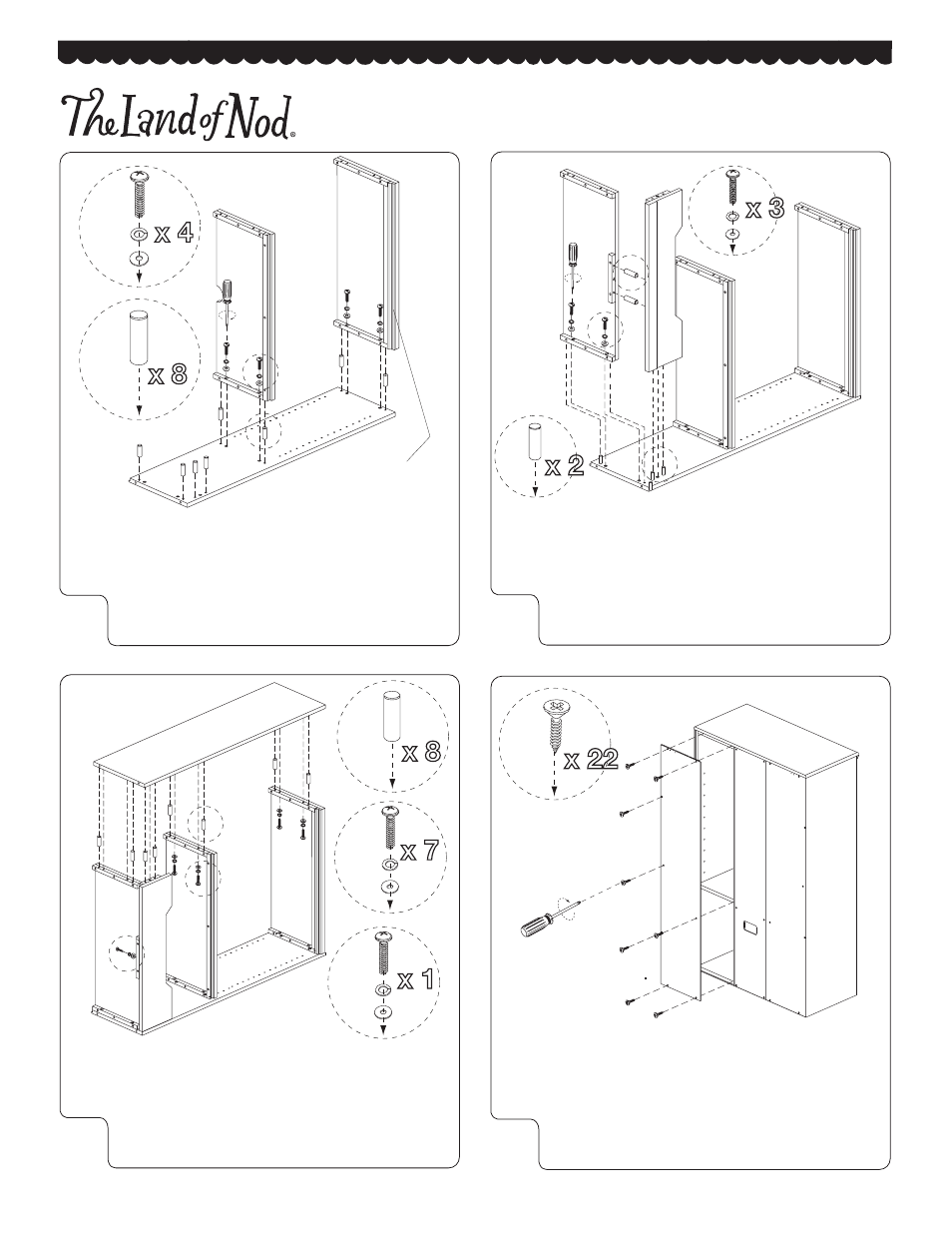

A. Insert 8 wood dowels into right side panels
as shown.
B. Fit dowels of
right side panel into top panel
and fixed shelf with 2 bolts, 2 spring washers
and 2 flat washers. Secure, but do not over
tighten bolts with a phillps head screwdriver.
2
3 4
A. Insert 8 wood dowels into left side panel.
B. Fit dowels of left side panel into assembly
and secure assembly with 7 bolts, 7 spring
washers and 7 flat washers as shown.
C. Secure
bottom and front panel with 1 bolt, 1
spring washer and 1 flat washer as shown.
Made in Vietnam - r03 Page 2 of 4 Customer Service 800.933.9904 | Latest instructions available at www.landofnod.com
right side
panel
FLAT TOP
60” BOOKCASE
A. Insert 2 wood dowels into bottom panel and fit
into front panel as shown.
B. Fit bottom and front panels into dowels of right
side panel.
C. Secure
bottom panel to right side panel with 2
bolts, 2 spring washers and 2 flat washers as
shown. Secure
front panel to right side panel with 1
bolt, 1 spring washer and 1 flat washer as shown.
NOTE: Make sure front
apron of each panel are
positioned as shown
A. With the assistance of another adult, position
unit upright. Attach
left back panel to assembly
with 8 screws, using a screwdriver. Do not over
tighten.
B. Attach
center back panel with 6 screws.
C. Attach right back panel to assembly with 8
screws, using a screwdriver.
A
B
A
B
fixed
shelf
top
panel
NOTE: Do not over
tighten the bolts
right side
panel
front
panel
bottom
panel
A
C
C
B
A
A
B
C
C
left side
panel
A
left
back
panel
center
back
panel
right
back
panel
A C
B
B A
NOTE: Do not over
tighten the screws
