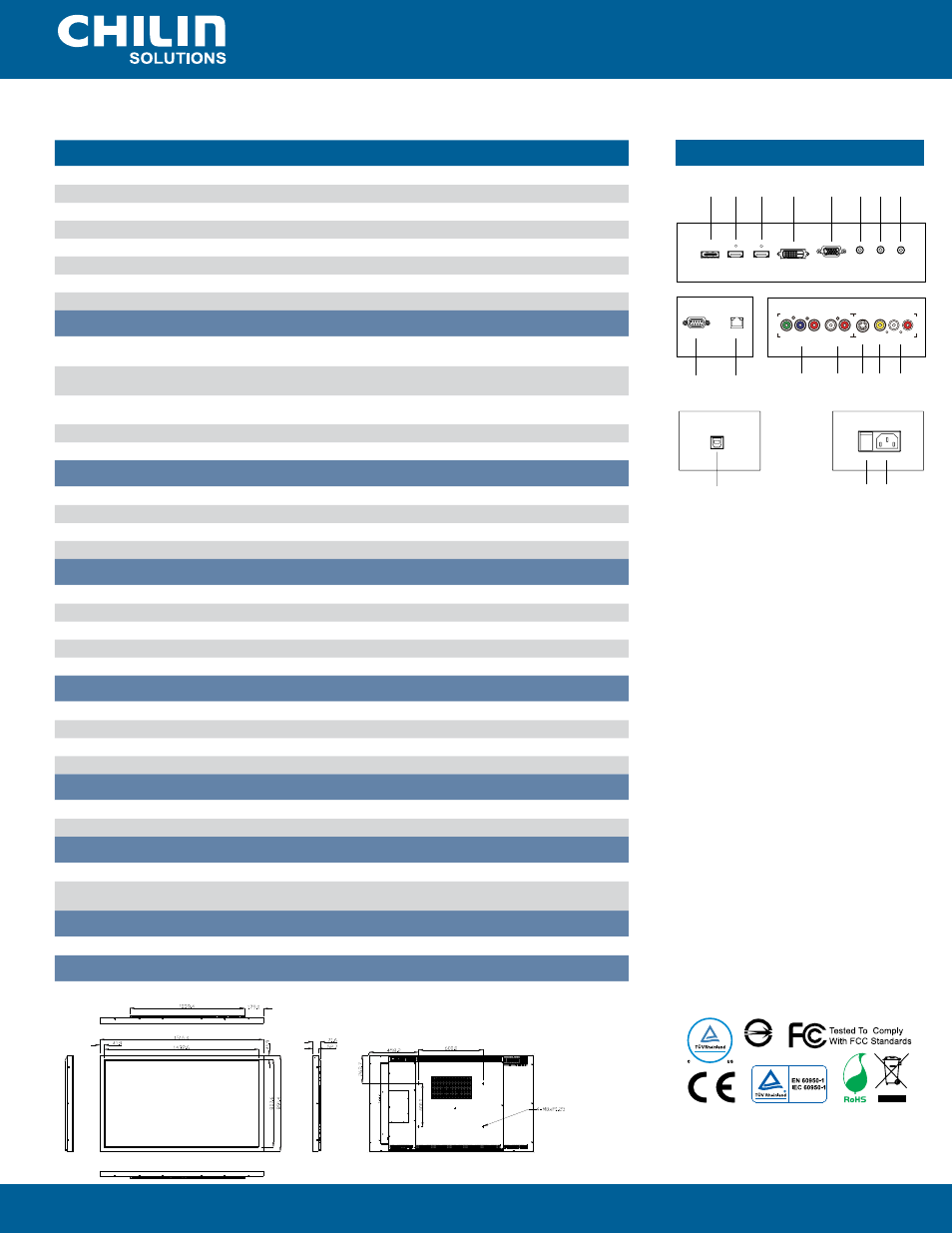

INTERFACE
INTERFACE
Touch Screen LED Displays
1. DisplayPort
2. HDMI 1
3. HDMI 2
4. DVI-D
5. VGA
6. PC Audio In
7. IR Extender
8. Line Out
9. RS232C
10. LAN
11. Component
12. Audio In (Component)
13. S-Video
14. Video
15. Audio In (S-Video/Video)
16. Touch USB
17. Power Switch
18. AC In
1 2 3
4
5
6 7 8
9
10
11 12 1314 15
16
17 18
65” Full-HD Industrial Ultra-Slim LED Touch Display
LCD PANEL
Brightness
360 cd/m
2
Contrast Ratio
4000:1
Viewing Angle
H:178° / V:178°
Response Time
8 ms (GTG)
Supported Colors
1073.7M colors
Display Resolution
1920 x 1080 (16:9)
Display Frame Rate
60 Hz
Portrait / Landscape
Portrait and Landscape Compatible
SIGNAL COMPATIBILITY / CONNECTIVITY
Horizontal / Vertical Frequency
23 ~ 92 KHz / 49 ~ 86 Hz (Analog)
15 ~ 94 KHz / 23 ~ 85 Hz (Digital)
Input Resolution
1920 x 1080 @ 60 Hz (Analog)
1920 x 1080 @ 60 Hz (Digital)
Connector
DisplayPort / HDMI 1.3c x 2 / VGA / DVI /
Component / S-Video / AV
Audio Out
Line Out
Communication Port
RS232C In, Ethernet
MECHANICAL
Dimensions
1517 x 892 x 72 mm / 59.72 x 35.1 x 2.8 inch
Weight
Net: 73.4 kg / 161.8 lbs ; Gross: 85.4 kg / 188.3 lbs
Wall Mount
400 x 600 VESA
Fanless Design
Yes
OSD FUNCTIONS
OSD Control Function
RS232C, Push Button, IR Remote Controller
OSD Language Function
English, Chinese
Multimedia Function
PIP, PBP (side by side) , Zoom
Source Auto Detect Function
Yes
OSD Key Lock Function
Yes
ELECTRICAL
Power Supply
AC 100V ~ 240V (50/60 Hz)
Normal Operation
≤ 290W
Power Off
≤ 1W
Speaker
4Ω / 10W x 2
ENVIRONMENTAL
Operating Temperature
0°C ~ 35°C, 35% ~ 75% RH
Storage Temperature
-20°C ~ 60°C, 35% ~ 75% RH
OPTIONS
Others
Metal Stand
DIMENSIONS
TOUCH PANEL
Interface
USB
Touch
Windows XP / Vista, Windows 7,
Mac OS X(v10.4 & above), Linux(2.6X & above)
* Optical specifications without glass.
** Weight and dimensions are approximate. Specifications and
design are subject to change without notice. This product may
be subject to export control regulations.
INTERFACE
PC
Audio
In
DisplayPort
HDMI 1
HDMI 2
DVI-D
VGA
IR
Extender
Line
Out
Audio In
Audio In
L
L
R
R
COMPONENT
LAN
RS232C
Video In
S-Video
OFF
ON
