-9-
TS-PC12
TS-PC10 1.2 cu ft. 1.5” x 10” x12” 1.5” x 10.5” x 13”
2.0” x 12.5” x 17”
2.5” x 15.5” x 17”
2” x 12” x 16”
2.5” x 15” x 17”
1.75 cu ft.
1.5 cu ft. 2.0 cu ft.
2.0 cu ft. 2.5 cu ft. TS-PC15
Everyday Bass Performer
Recommended Ported Enclosure
Recommended Ported Enclosure
Volume Volume
Competition Bass Performer
Remember:

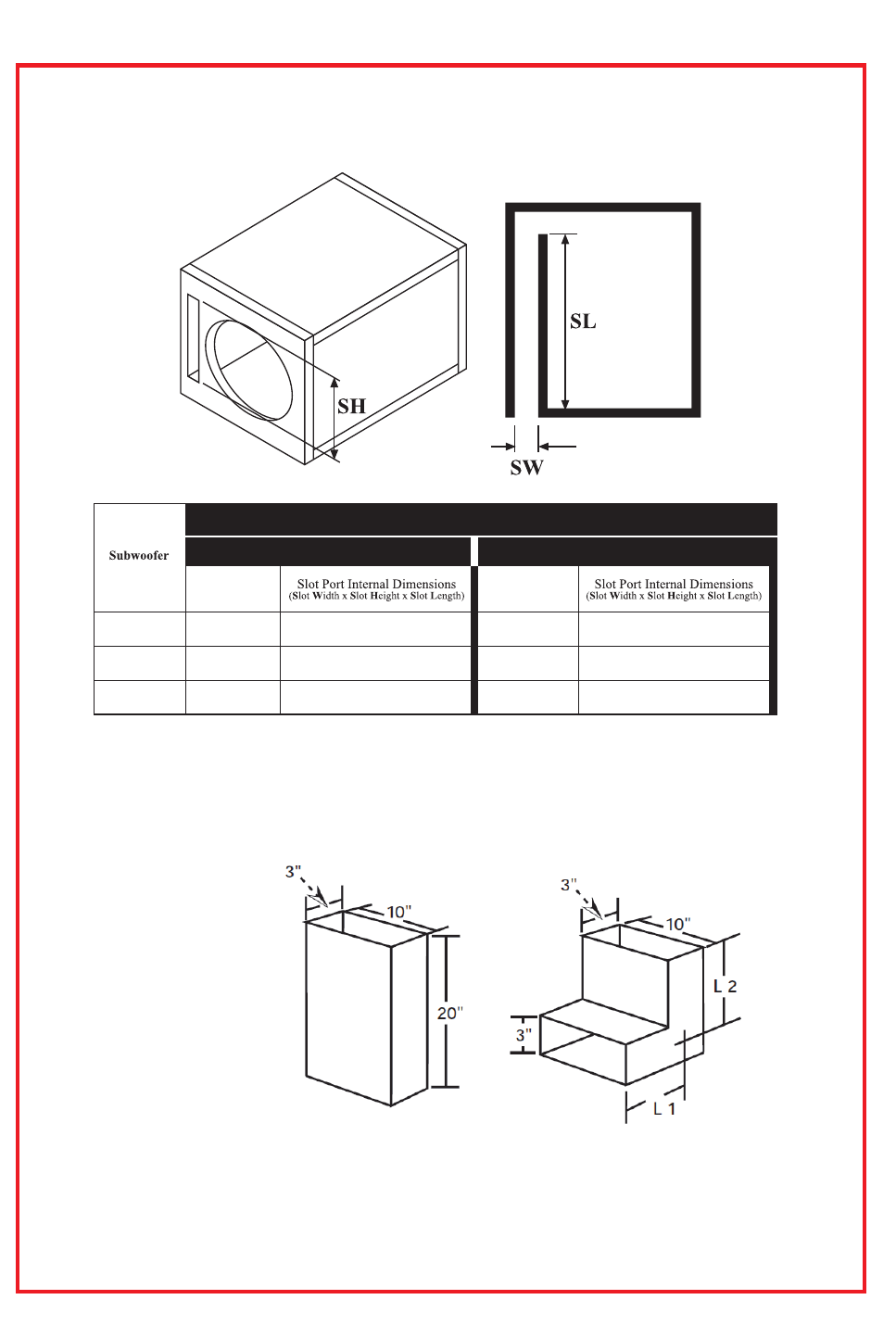

If you are going to bend the port at 90º, you will need to add 1/2 of the ports height
to the length! See below:
Example:
(Fig. 1)
H
port=3”
W
port=10”
L
port=20”
(Fig. 2)
Since
H
port is 3” you need to add 1.5”(1/2 of
H
port) to
L
port. This means that
L1+L2=21.5”.
Always measure L1 and L2 down the center to get an accurate measurement!
Fig. 1 Fig. 2
