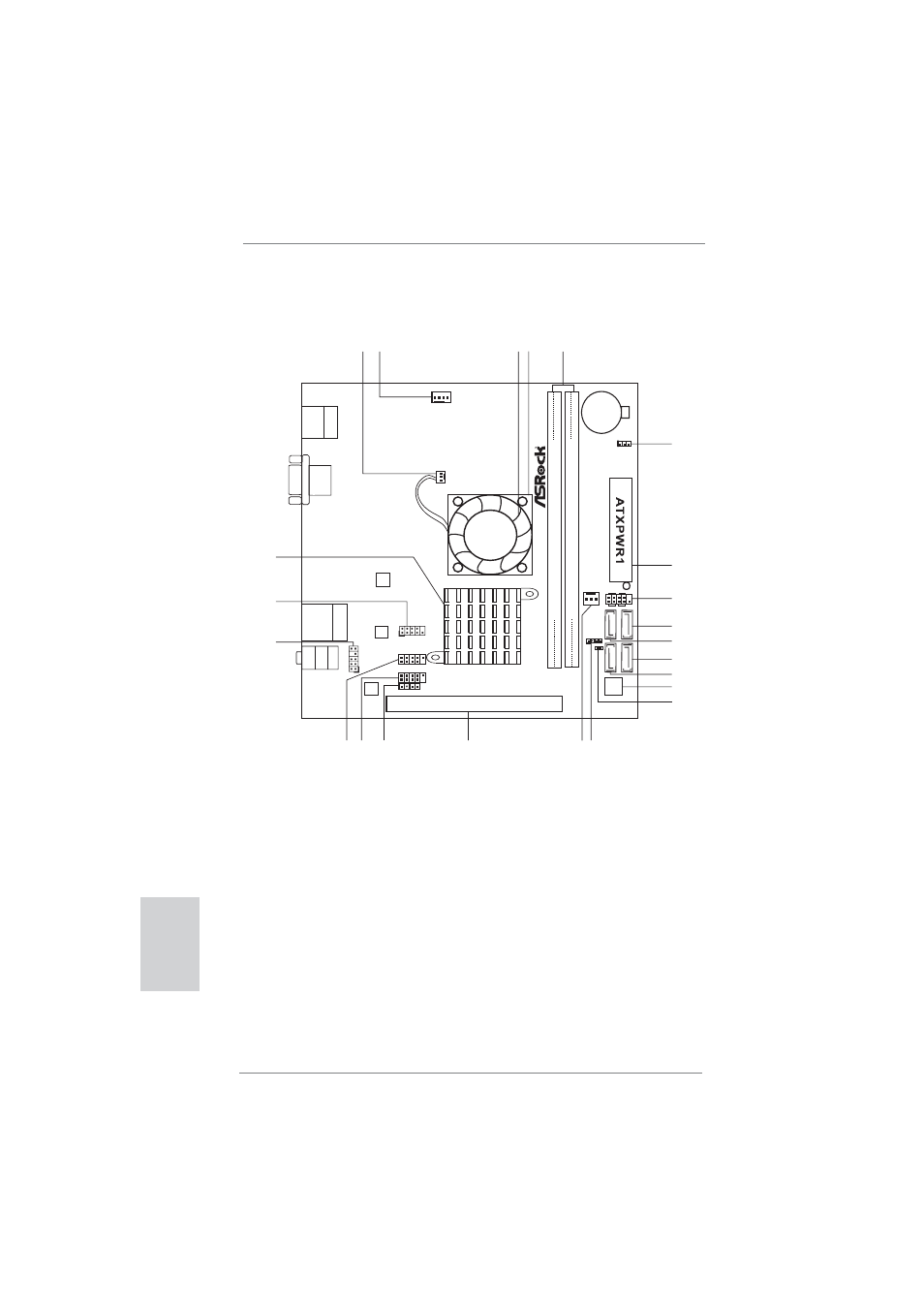

ASRock E35LM1 R2.0 Motherboard
Motherboard Layout
English
1
CPU Fan Connector (CPU_FAN1)
12
SATA3 Connector (SATA3_1)
2
Chassis Fan Connector (CHA_FAN1)
13
32Mb SPI Flash
3
CPU Fan
14
Chassis Intrusion Header (CI1)
4
CPU Heatsink
15
Chassis Speaker Header (SPEAKER1)
5
2 x 240-pin DDR3 DIMM Slots
16
Chassis Fan Connector (CHA_FAN2)
(DDR3_A1, DDR3_A2)
17
PCI Express 2.0 x16 Slot (PCIE1)
6
Clear CMOS Jumper (CLRCMOS1)
18
Consumer Infrared Module Header (CIR1)
7
ATX Power Connector (ATXPWR1)
19
USB 2.0 Header (USB8_9)
8
System Panel Header (PANEL1)
20
USB 2.0 Header (USB6_7)
9
SATA3 Connector (SATA3_4)
21
Front Panel Audio Header (HD_AUDIO1)
10
SATA3 Connector (SATA3_2)
22
COM Port Header (COM1)
11
SATA3 Connector (SATA3_3)
23
AMD A50M Chipset
SPEAKER1
1
PANEL 1
HDLED RESET
PLED PWRBTN
1
CMOS
Battery
32Mb
BIOS
Super
IO
FSB800
DDR3_A1
(64
bit,
240-pin
module)
FSB800
DDR3_A2
(64
bit,
240-pin
module)
1
USB6_7
PCIE1
1
USB8_9
CHA_FAN2
SA
T
A3_1
SA
T
A3_2
SA
T
A3_3
SA
T
A3_4
HD_AUDIO1
1
AUDIO
CODEC
LAN
PHY
1
COM1
CHA_FAN1
SA
TA3
6Gb/s
USB 2.0
T: USB0
B: USB1
PS2
Keyboard/Mouse
VGA1
USB 2.0
T: USB4
B: USB5
Top:
RJ-45
T
op:
LINE
IN
Center:
FRONT
Bottom:
MIC
IN
CLRCMOS1
1
E35LM1
Dx1
1
RoHS
CPU_F
AN1
1 2
4
3
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
23
CIR1
1
21
X
Fast
RAM
DDR3
CI1
1
22
