AcuBrite 17-Nav Manual

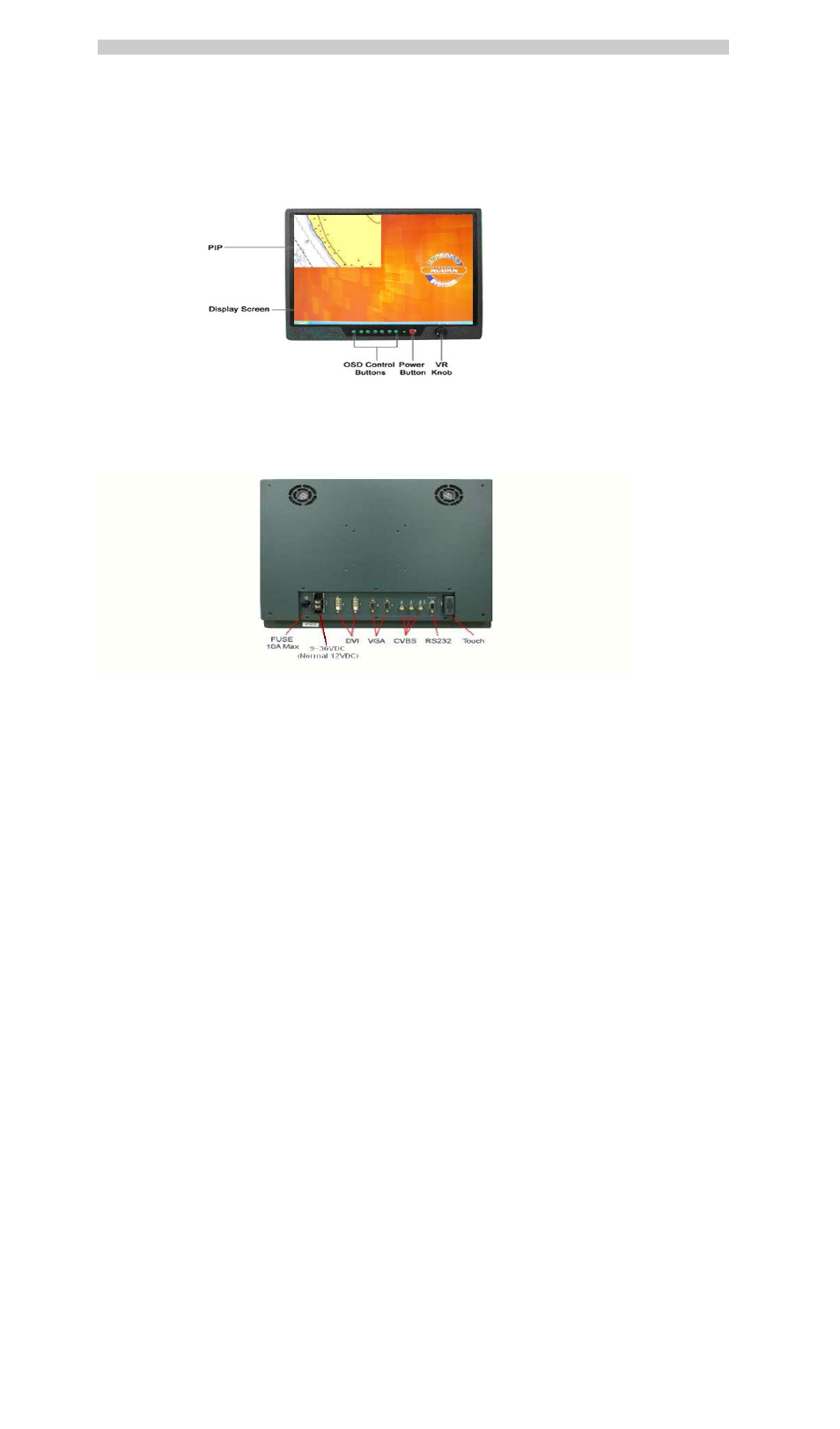

2.0 CONTROL AND FEATURES
Acubrite17-Nav Sunlight Viewable Display has the following controls and features:
Front View AcuBrite 17”-Nav
Remarks: The PIP function is only available for Acubrite17-Nav model
Back View
3.0 INSTALLATIONS
It is important that your new display is installed and operated in accordance with the instructions provided
in this handbook. Failure to do so could result in poor product performance and may invalidate your
warranty.
When planning the installation the following points must be considered:
• Your Acubrite17-Nav display is sunlight viewable and visible in direct sunlight..
• If temperatures exceed the normal temperature operating range the display could overheat and begin to
blackout due to the limitations of TFT LCD technology.
• In order to minimize the chances of a malfunction, the following precautions should be taken during
installation:
• The display should be installed in an area where there is proper and adequate ventilation (min.
15cm clearance) . If it is possible to cool the area behind the display, it will significantly reduce the
risk of a malfunction.
• The display should be mounted at an angle to the sun. We do not recommend mounting the unit in
a flat plane, which increases the surface area exposed to the sun and leads to increased heat
absorption.
Page 4
