Y1-03-0139H 8
SECTION 4 - OPERATION
4.1
Instructions on Controls
A. Rotation
Up/Down/Left/Right- Move joy stick in the desired direction.
Low Speed Range- 0° to 7.5°
High Speed Range- 7.5° to 15°
B. Focus
Rotate focusing knob for desired light spot size (wide or narrow)

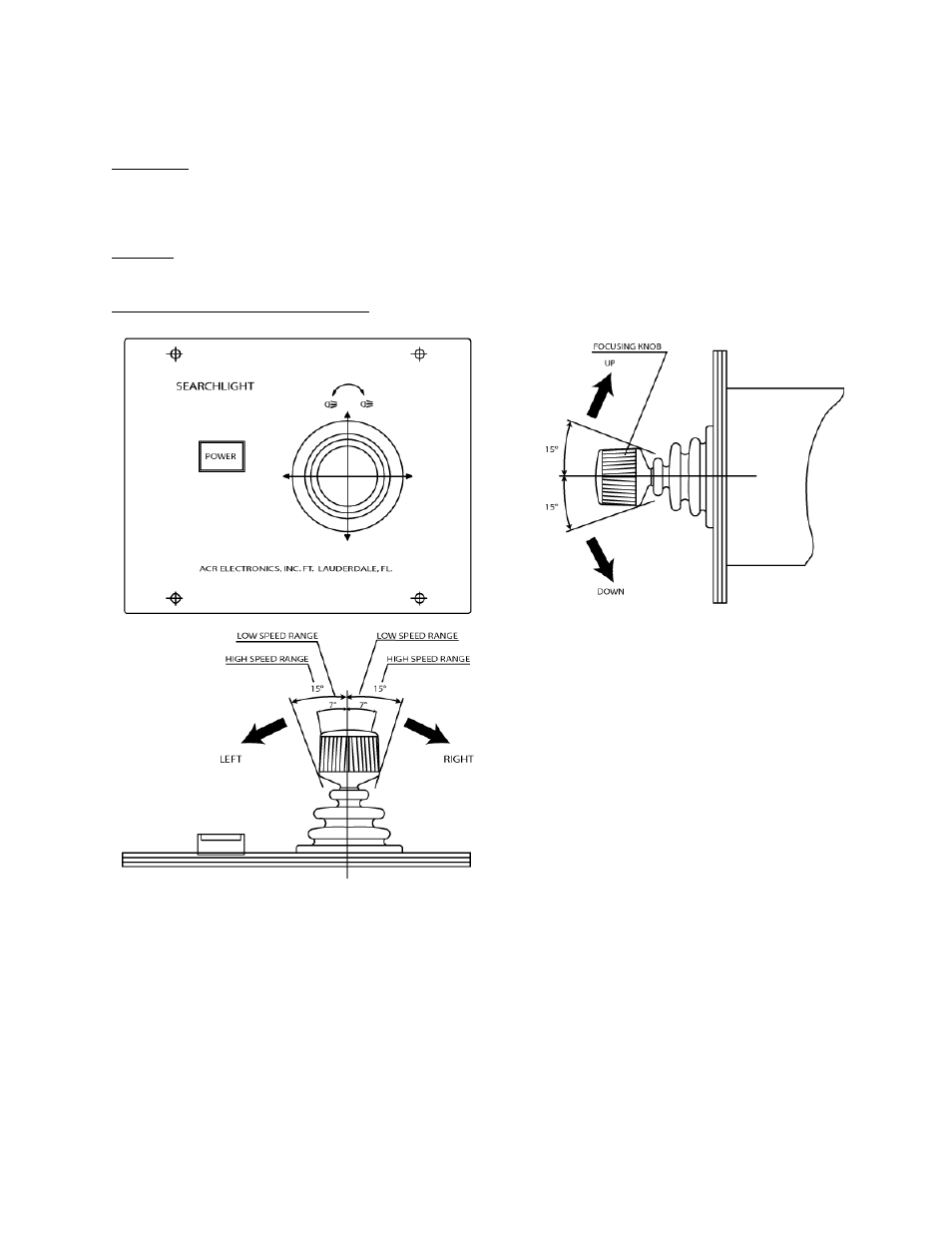

C. Operation of CPF99 Control Panel
Figure 6
