Kd 9250 – Acnodes KD 9250 User Manual
Page 9
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
KD 9250
1U Rack mount 15.6” LCD keyboard drawer
2-3
LCD KVM console and KVM cascade installation
LCD kVM console port can be directly connector to another KVM switch as cascade to perform uni-
fied management all connected hosts. Please follow the installation drawing and instructions for stan-
dard installation:
1. Make sure to power off all equipment to be connected and existing equipment.
2. Switching slide switch on USB position.
3. Use and USB / VGA cable to connected the LCD and KVM switch console port.
4. Turn on the KVM and LCD KVM power first and then power on hosts to prevent loss of any keyboard
or mouse.

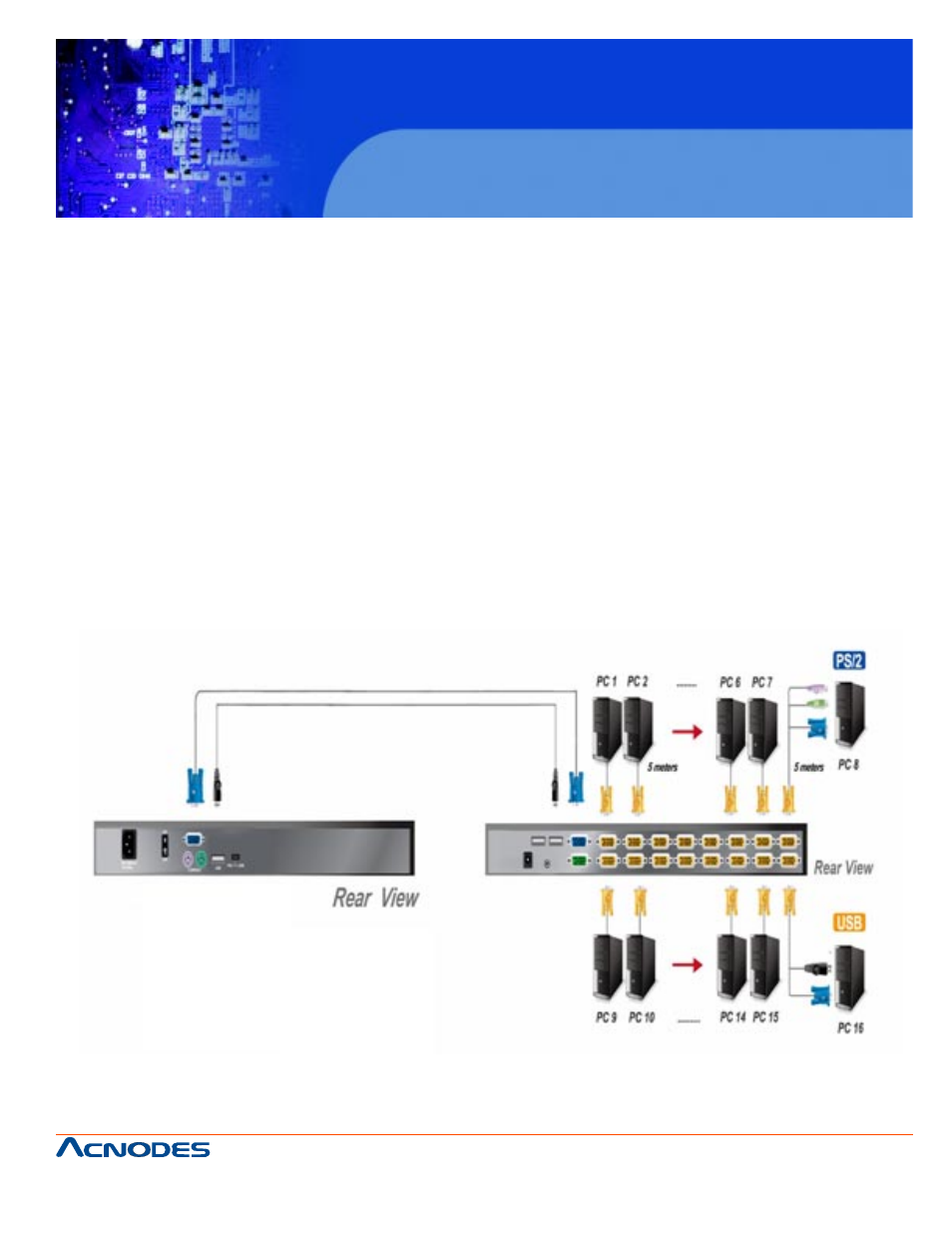

Cascade connection drawing:
